Sharp CV-P09FR Service Manual

CVP09FR
2 – 6

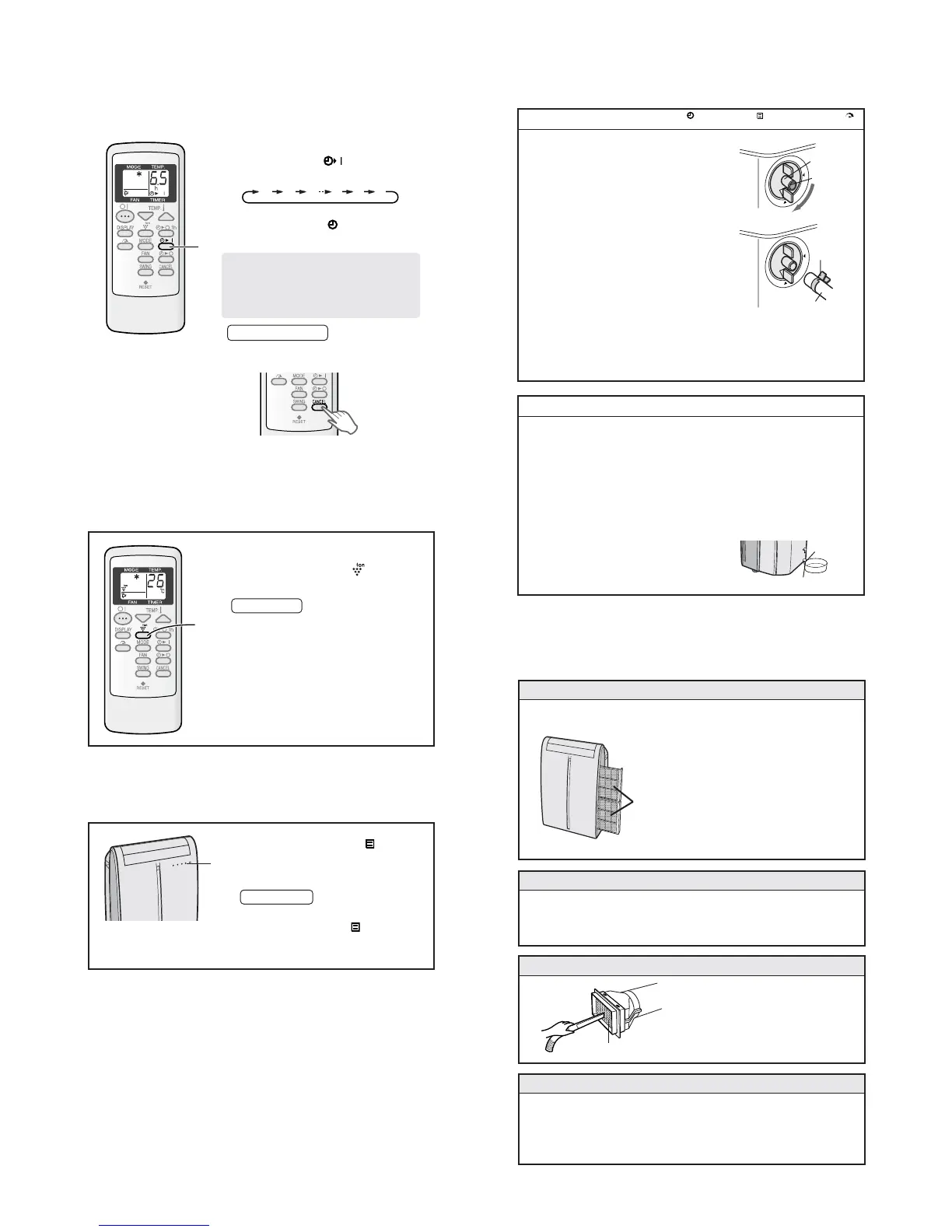

8.2. On timer
9. Plasmacluster operation
10. Auxiliary mode
[7] DRAINAGE
[8] MAINTENANCE
1
Displayshownwhen youset
the unit to turn on 6.5hours
later.
The unit will turn on automatically according to your setting.
Timerduration canbe setfrom aminimum of half anhour (30minutes)to amaximum
of 12 hours.
Up to 9.5 hours,you can set in half-hour (30-minute)incrementsand from 10 to 12
hours, in 1-hour increments.
Point the remote control at the signal receiverwin-
dow on the unit.
1
Press the ON TIMER ( ) button.
• The time setting will change as you press the button
as follows.
Hold the button down to speed through the settings.
• The orange TIMER lamp (
) on the unit will light.
• The unit will emit a beep when it receives the signal.
• Thetime setting will count down to showthe remain-
ing time.
TO CANCEL TIMER
Press the CANCEL button.
• The orange TIMER lamp on the unit will turn off.
Selectthe mode, temperature, fan speed setting
and PLASMACLUSTER operation as desired.
• Whenthe temperatureisset with the ONTIMER,the
temperature will show in the display for 5 seconds
and then return to the time display.
• If you do not change the setting, the unit will operate
using the most recent setting.
0.5h 1.0h 1.5h 10h 11h 12h
1
Press the PLASMACLUSTER button during
operation.
• The remote control will display “ ”.
• The blue PLASMACLUSTER lamp on the unit will
light.
TO CANCEL
Press the PLASMACLUSTER button again.
• The PLASMACLUSTER lamp on the unit will turn off.
NOTES:
• Use of the PLASMACLUSTER function will be memo-
rized and it will be activatedthe nexttime you turn on
the air conditioner.
• To turn off the PLASMACLUSTER Lamp, press the
DISPLAY button.
• PLASMACLUSTER operation cannot be set during
VENTILATION mode.
The Plasmacluster ion generator inside the air conditioner will release positive and
negative Plasmacluster ions into the room. Approximately the same numbers of posi-
tive and negative ions released into the air will reduce some airborn mold.
1
1
Use this mode when the remote control is not available.
1
Press the AUX. button on the unit.
• The red OPERATION lamp ( )ontheunit
will light and the unit will start operating in
COOL mode.
• The fan speed is set to AUTO.
• The temperature setting is automatically set
according to the room temperature.
TO TURN OFF
Press the AUX. button again.
• The red OPERATION lamp ( ) on the unit will
turn off.
NOTES:
• If the AUX. button is pressed during normal operation, the unit will turn off.
• Upon starting AUXILIARY operation, the drainage pump inside the unit runs for
about a minute, which may produce an audible gurgling sound.
Prepare for drainage and drain out water within the unit in the following cases.
If the unit stops operating and the TIMER (
),OPERATION ( ) and TURBO COOL ( )
lamps are blinking. (This indicates that the water tank inside the unit is full.)
1
Make sure to turn the unit off.
2
Turn the drainagenozzle to the OPEN
position.
3
Pull the stopcockout from the drainage
nozzle.
• When the stopcock is removed,a small amount of
water maybe dischargedfrom the drainagenozzle.
4
Insert the hose clamp into a standard com-
merciallyavailablehose(12.7mminnerdi-
ameter, 16.7 mm outer diameter).
5
Attach the hose to the drainage nozzle, and
secure it with the hose clamp.
• Preparefor draining, asdrain water will come out
through the hose during operation.
6
Press the AUX. button on the unit twice.
• Thewaterwill drain out through the drainagehose.
Mximum amount of water that may be drainedout
is approximately 2 liters.
• The OPERATION,TIMERand TURBOCOOL
lamps will be blinking.
7
When drainage water stops running out from the hose, turn the unit off by
pressing AUX. button.
• This would take about one minute.
8
Remove the hose from the drainage nozzle, and replace the stopcock.
• Keep the hose clamp in case of re-used.
9
Turn the drainage nozzle to the CLOSE position.
Whenever the unit is moved (to provent water within the unit from spilling).
When the unit is not used for a long time.
1
Carry out the above procedures from 1 to 5.
2
Press the AUX. button on the unit.
• The water will drain out through the drainage hose.
Mximum amount of water that may be drained out is approximately 2 liters.
• The OPERATION lamps will light.
3
When drainage water stops running out from the hose, turn the unit off by
pressing AUX. button.
• This would take about one minute.
4
Remove the hose from the drainage nozzle, and replace the stopcock.
• Keep the hose clamp in case of re-used.
5
Turn the drainage nozzle to the CLOSE position.
6
Remove the stopcock from the drainpipe nozzle, and completely drain any
water within the unit.
• Always prepare a receptacleto collect the water
beforedraining. Mximum amount of water that may
be drained out is approximately 0.2 liters.
7
Replace the stopcock to the drainpipe nozzle.
Stopcock
Drainpipe nozzle
Drainage
nozzle
Stopcock
“OPEN position”
Hose clamp
Hose
CLEANING THE UNIT AND THE REMOTE CONTROL
Wipe them with a soft, dry cloth or with a cloth moistened with a mild soap. Carefully remove
any residue by wiping with a damp cloth and dry completely.
Avoid splashing water onto the unit. Water can dangerously damage the electrical insulation.
Never use harsh chemicals or abrasive cleaners on any part of the unit. To avoid damaging the
unit, do not use hot water (50°C or hotter) when cleaning.
1
Perform drainage to drain out water within the unit. (See Page 17 “When the unit is not
used for a long time)”.
2
Operate the unit the FAN or VENTILATION mode for about half a day to thoroughy dry
inside the unit.
3
Clean the filters, then reinstall them.
CLEANING THE INSECT GUARD NET
The cooling performance may be reduced or stop
completely if the insect guard net becomes
clogged with dust.
Clean the insect guard net with a vacuum cleaner
or suchlike.
Filters
Be sure to disconnect the power from the wall socket before performing any maintenance.
CLEANING THE FILTERS
If the filter is clogged with dust, the airflow will be reduced, resulting in poor cooling perform-
ance. The filter should be cleaned every two weeks.
1
REMOVE THE FILTERS
• Gently pull the filter handle to the right and slide
the filter out of the unit.
2
CLEAN THE FILTERS
• Use a vacuum cleaner to remove any dust. If the
filters are very dirty, wash them with detergent and
rinse carefully with clean water. Dry the filters in
the shade before reinstalling them.
3
REINSTALL THE FILTERS
• Hold the filter handle and gently push the filter back
into place.
Never operate the unit without the filter. Doing so
may result in serious damage to the unit.
MAINTENANCE AFTER AIR CONDITIONER SEASON
Insect guard net

Sharp CV-P09FR Specifications

General

Cooling capacity (max)	- BTU/h
Dehumidifying capacity	1.167 l/h
Cooling capacity in watts (max)	2120 W

Weight and Dimensions

Weight	36000 g
