[2] DISASSEMBLING THE CONTROL BOX
CAUTION: DISCHARGE THE FAN MOTOR CAPACITOR AND RUNNING CAPACITOR BEFORE TOUCHING THESE CAPACITORS OR OTHER
COMPONENTS OR WIRING.

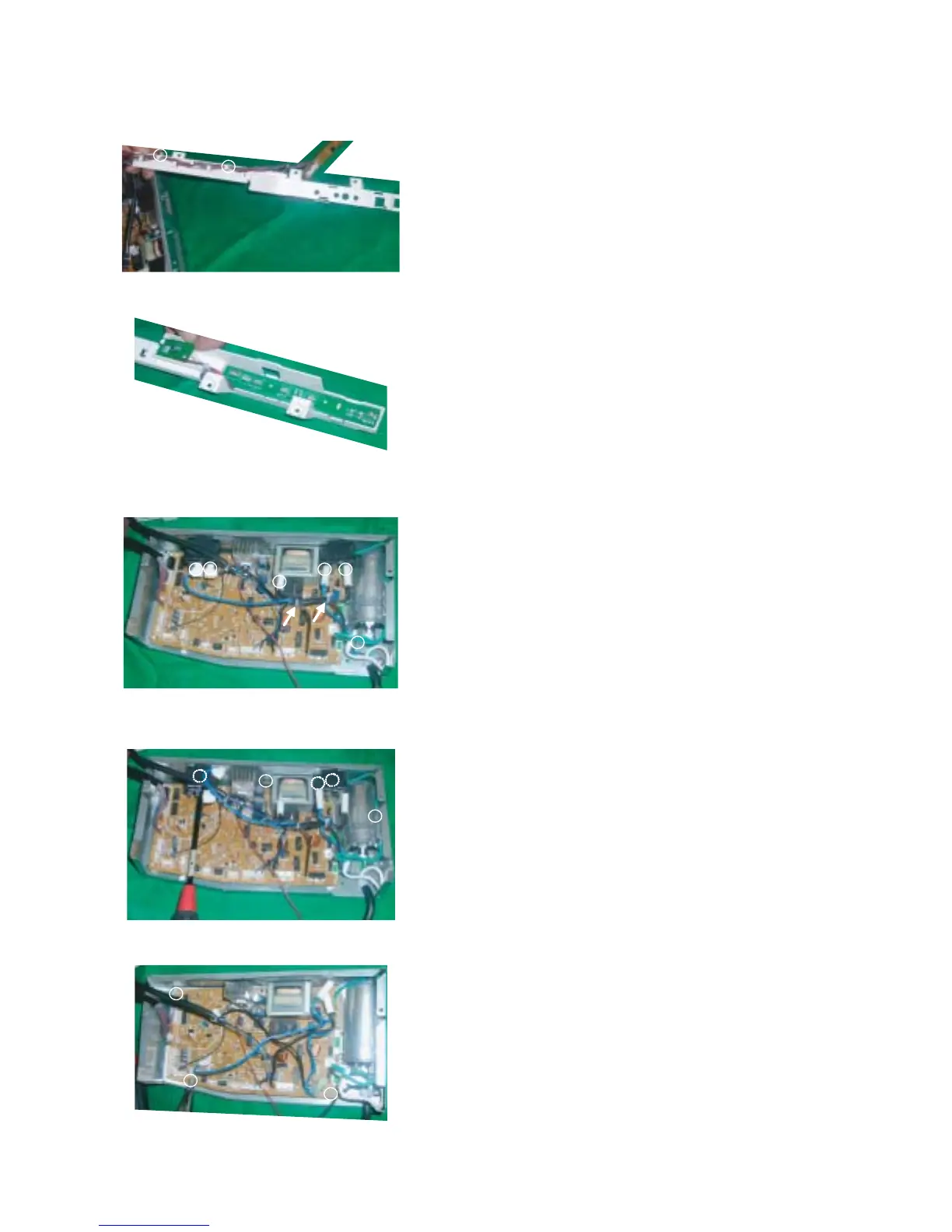

1. Cut fixing bands holding the wires.(2 parts)
2. Remove 2 P.W.B.
3. Cut fixing bands holding the wires.(2 parts)
Disconnect 6 connectors.
4. Unscrew 5 screws holding fan motor capacitor, transformer and
lead wire (earth).
5. Remove the control board by unhooking 3 spacers.

Sharp CV-P09FR Specifications

General

Cooling capacity (max)	- BTU/h
Dehumidifying capacity	1.167 l/h
Cooling capacity in watts (max)	2120 W

Weight and Dimensions

Weight	36000 g
