Sharp CV-P09FR Service Manual

CVP09FR
3 – 8

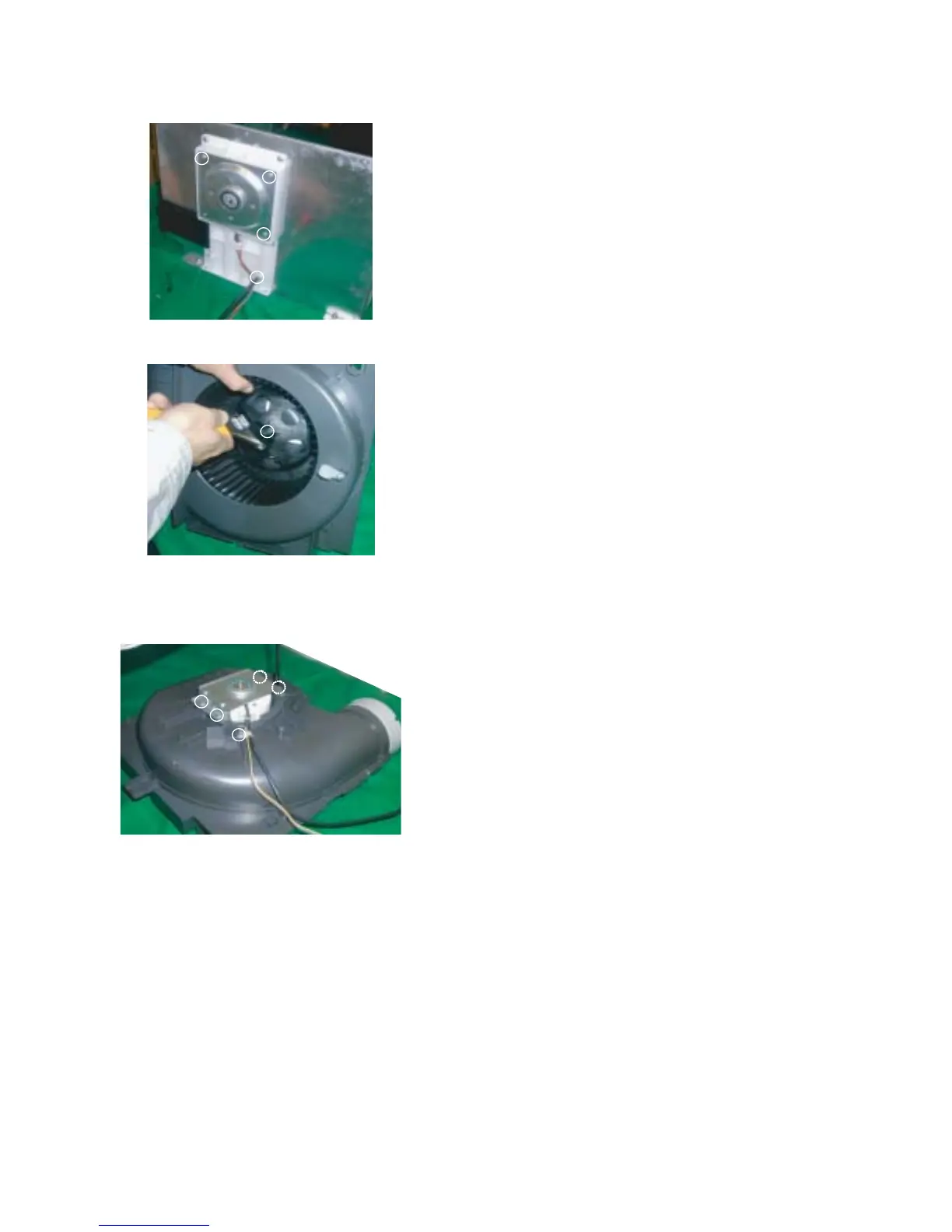

42.Unscrew 4 screws holding the motor cover and wire holder.
Remove the motor cover.
Then remove the fan motor.
43.Unscrew the screw holding the centrifugal fan.
44.Unscrew 5 screws holding the motor cover and wire holder.
Remove the motor cover.
Then remove the fan motor.

Sharp CV-P09FR Specifications

General

Cooling capacity (max)	- BTU/h
Dehumidifying capacity	1.167 l/h
Cooling capacity in watts (max)	2120 W

Weight and Dimensions

Weight	36000 g
