Reference Notes
CAUTION 1: Locking Tabs (L-1) and (L-2) are fragile.
Be careful not to break them.
1-1. Release five Locking Tabs (L-1).
1-2. Release three Locking Tabs (L-2).
1-3. Disconnect Connector (CN1609), and remove the
Front Assembly.
2. When reassembling, solder wire jumpers as shown
in Fig. D8.
3. Before installing the Deck Assembly, be sure to
place the pin of LD-SW on Main CBA as shown in
Fig. D8. Then, install the Deck Assembly while
aligning the hole of Cam Gear with the pin of LD-SW,
the shaft of Cam Gear with the hole of LD-SW as
shown in Fig. D8.
(S-1)
(S-1)
(S-1)

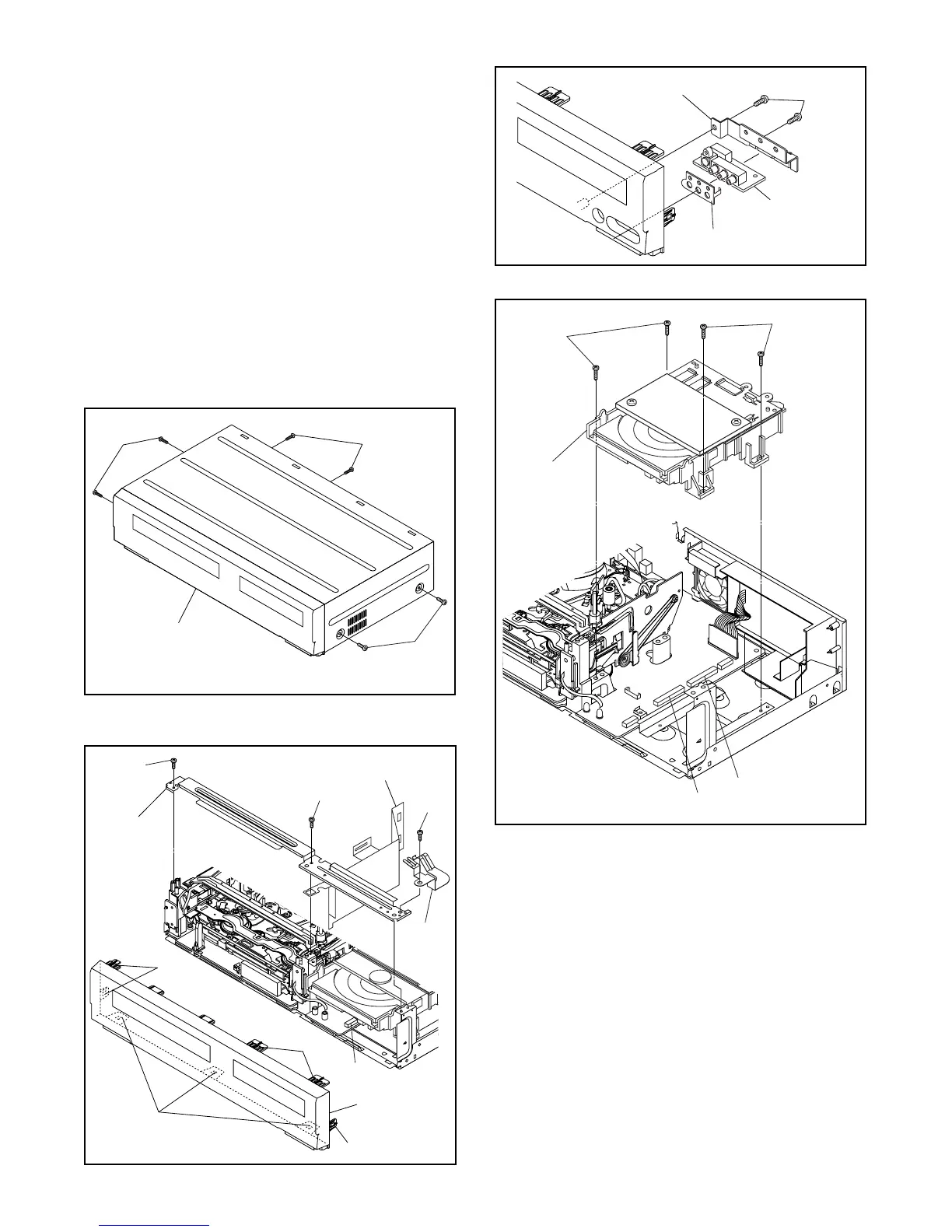

[1] Top Cover
Fig. D1
(L-1)
(S-2)
(S-2)
(S-3)
Shield
Plate
(L-2)
(L-1)
(L-1)
[2] Front
Assembly
[3] Front
Bracket
[4] Radiation Sheet
CN1609
Fig. D2
Fig. D3
(S-4)
Jack Earth Plate
[5] Jack Bracket
[6] Jack CBA
Fig. D4
(S-5B)
(S-5A)
CN2204
CN201
[7] DVD
Mechanism
&
DVD Main
CBA
Assembly
To Next Page
