1-14-3
NOTE: CBA AND PWB MEANS PRINTED WIRING BOARD.

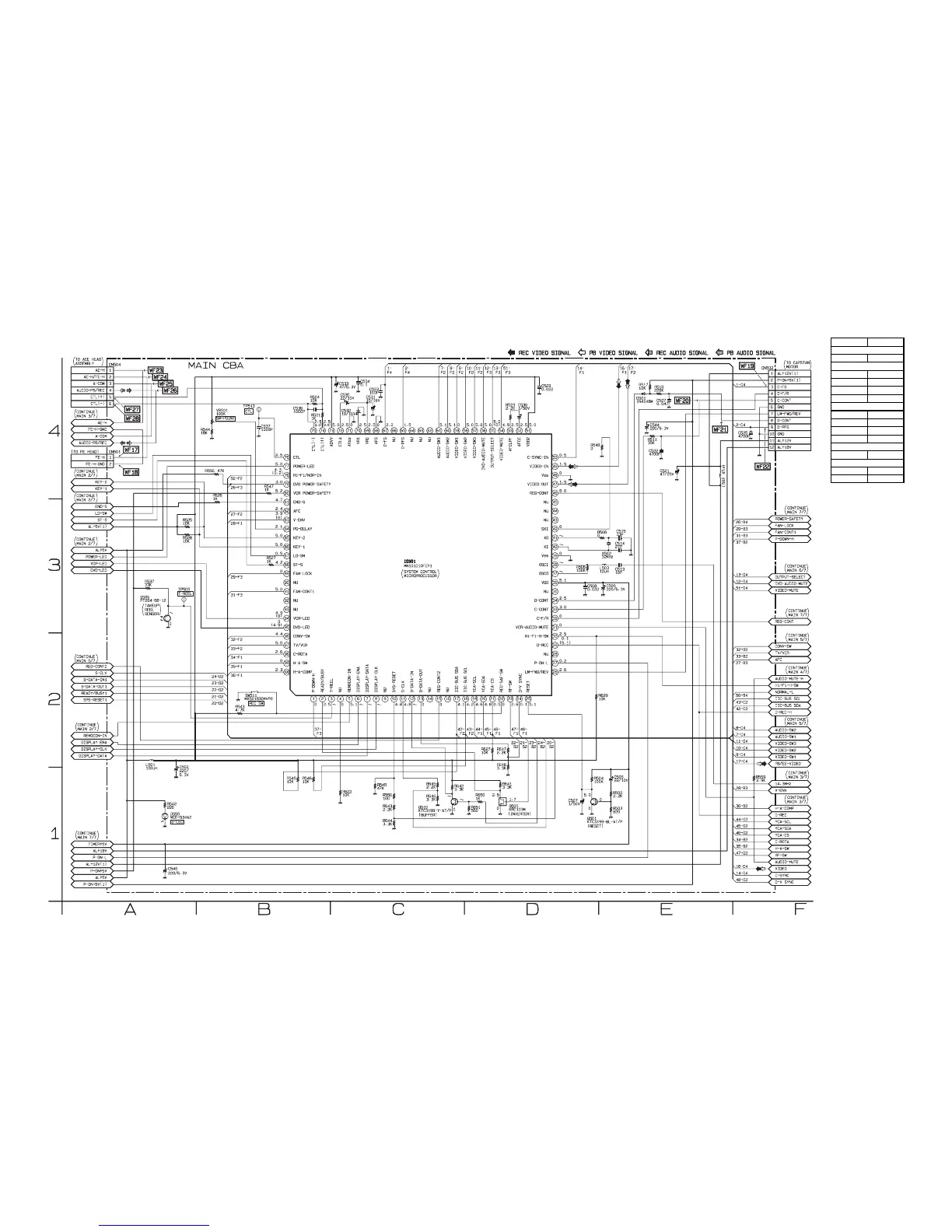

Main 1/7 Schematic Diagram < VCR Section >
E9656SCM1
MAIN 1/7
Ref No. Position
IC501 C-3
Q501 D-1
Q506 A-3
Q509 D-1
Q510 C-1
CN501 A-4
CN502 F-4
CN504 A-4
CN2208 A-3
VR501 B-4
TP505 A-3
TP513 B-4
IC
CONNECTORS
TRANSISTORS
VARIABLE RESISTOR
TEST POINTS
