1-14-5
NOTE: CBA AND PWB MEANS PRINTED WIRING BOARD.

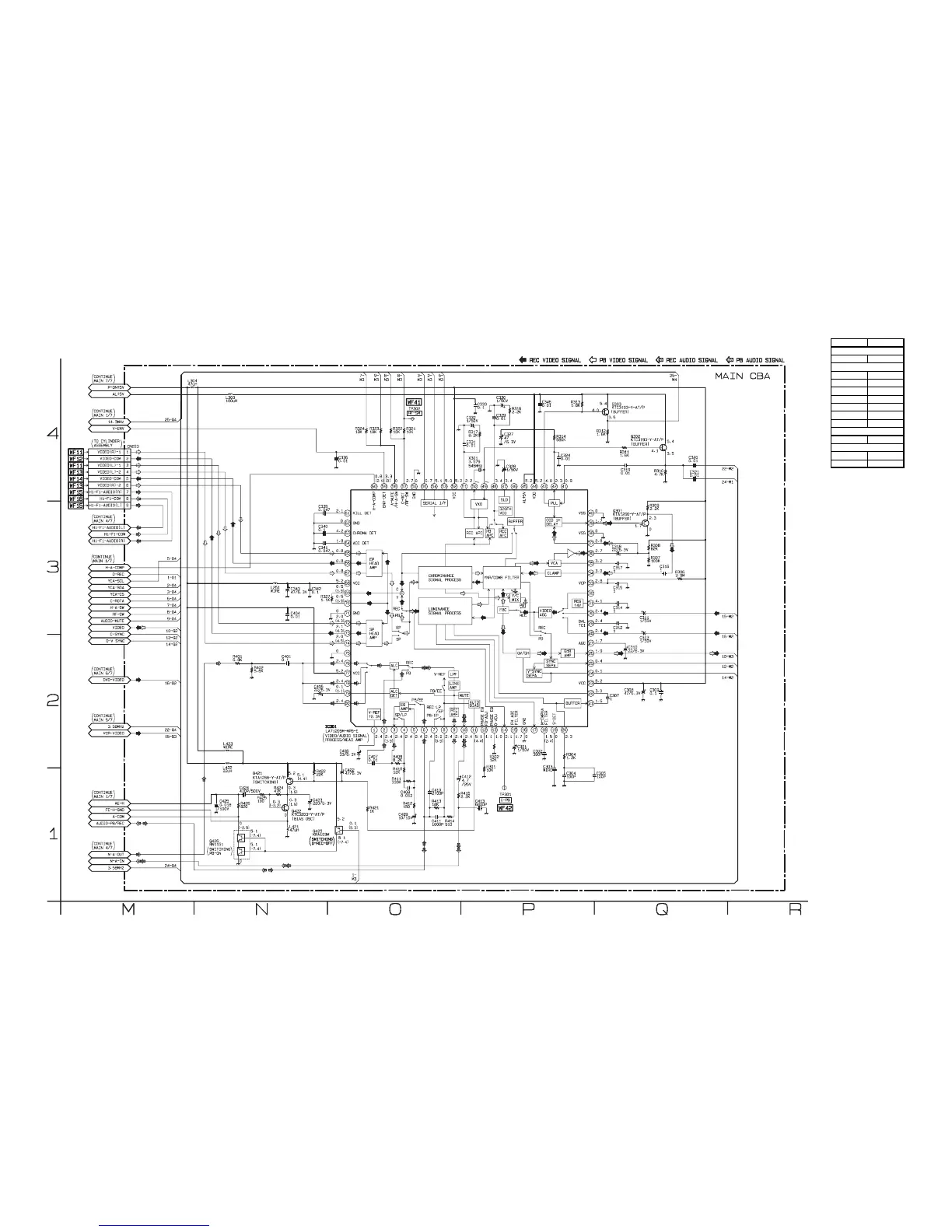

Main 3/7 Schematic Diagram < VCR Section >
E9656SCM3
MAIN 3/7
Ref No. Position
IC301 O-2
Q301 Q-3
Q302 Q-4
Q303 Q-4
Q421 N-1
Q422 N-1
Q425 N-1
Q426 N-1
CN253 M-4
TP301 P-1
TP302 O-4
CONNECTOR
TEST POINTS
TRANSISTORS
IC
