ER-A520/A530 Dealer Knowledge Book
Page 66 of 266 Specifications subject to change without notice: Revision date 10/07

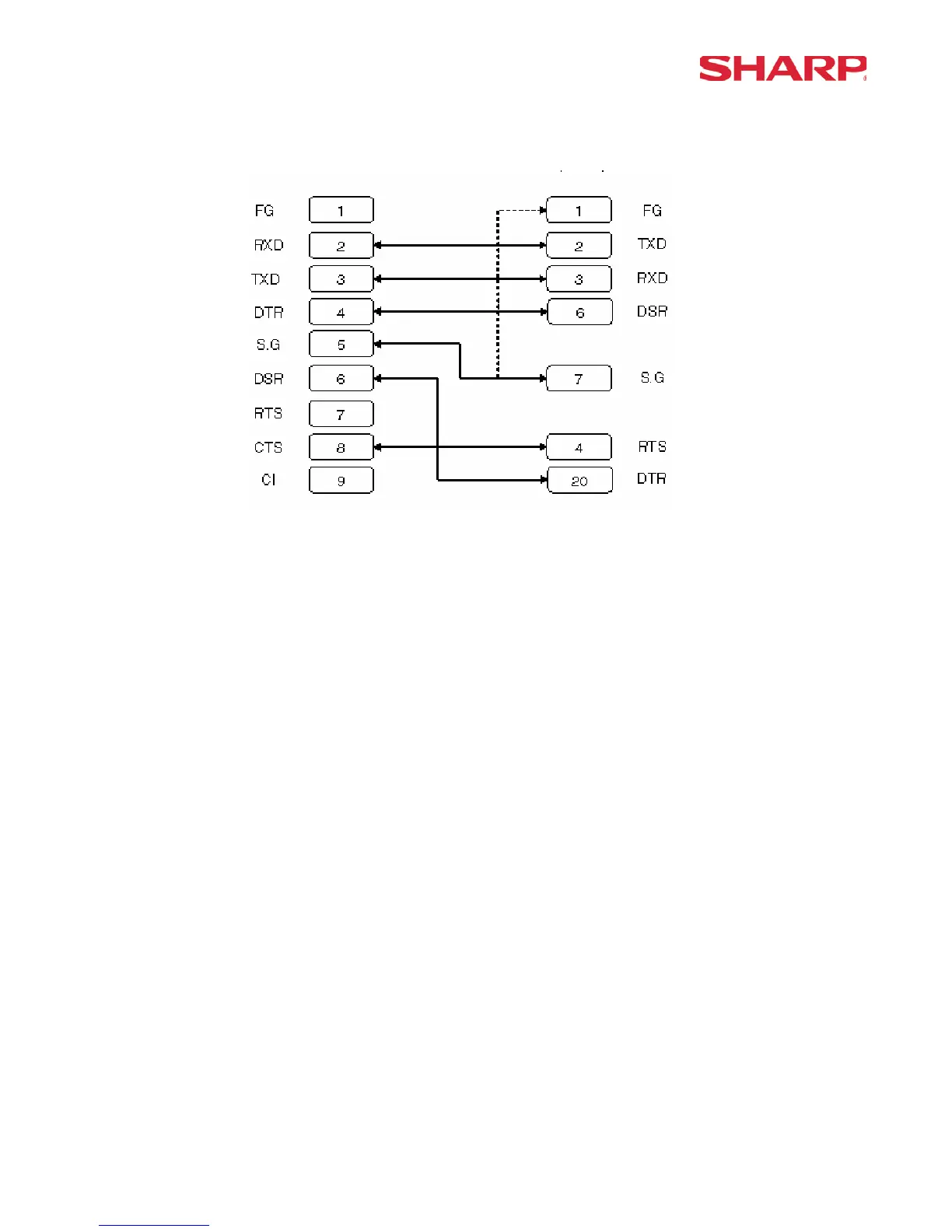

1. Cabling Pin Outs:
ECR SLIP PRINTER
9-Pin D–Sub 25-Pin D–Sub
2. Data Transmission:
- 8 Bits ASCII Code
- No Start Bit
- Non Parity
- 1 Stop Bit
- Baud Rate: 9600 bps (fixed)
*Handshaking: DTR/DSR Control
