PERIPHERALS
Specifications subject to change without notice: Revision date 10/07 Page 87 of 266

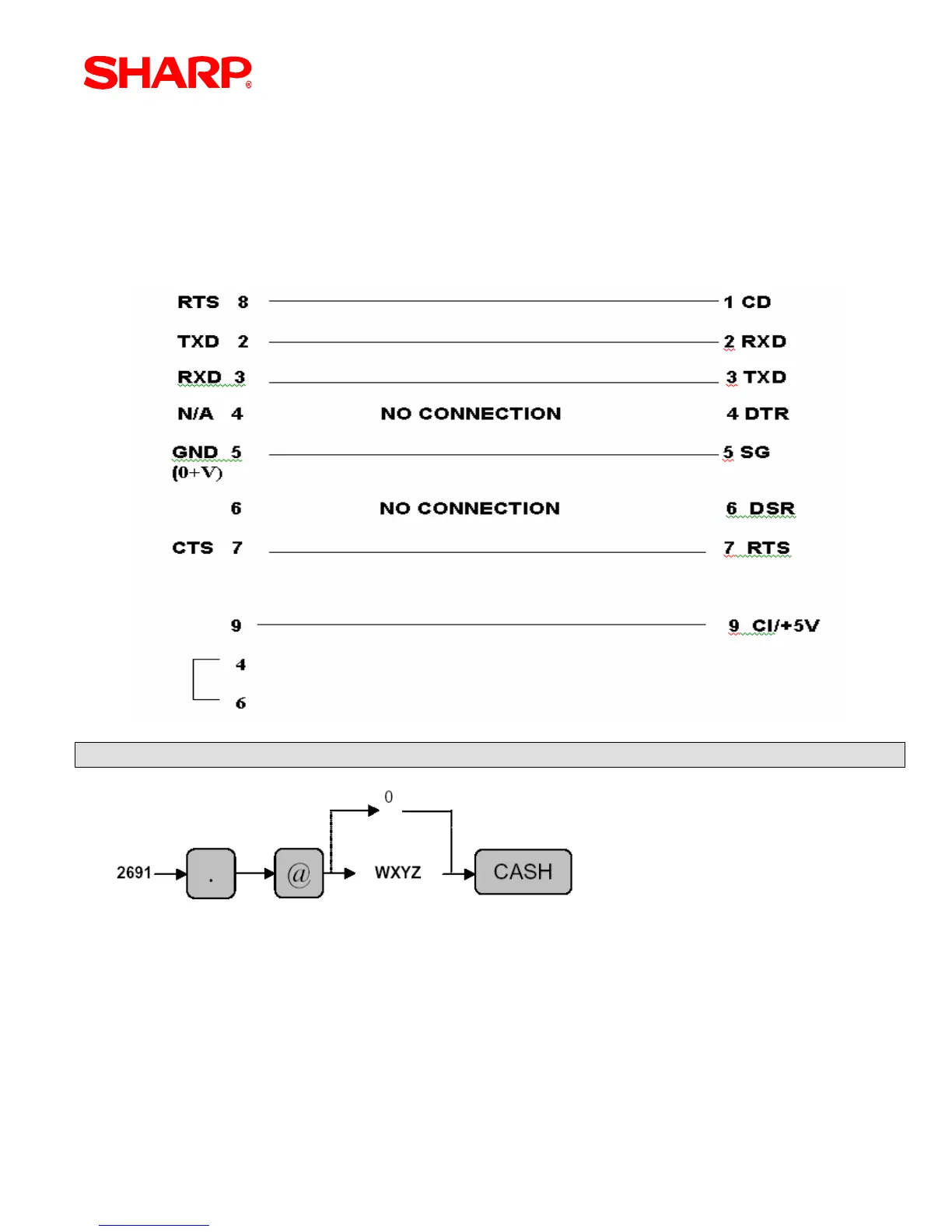

1. Cabling Pin Outs:
MS6720 Scanner
DB9 Male
Sharp Register
DB9 Female
PGM2 Mode Related Programming - 2691
W: Data Bit 7bits / 8bits =1/0
X: Parity Bit Non / Odd / Even =2/1/0
Y: Stop Bit 1bit / 2bits =1/0
Z: Transmission Speed 19200bps / 9600bps / 4800bps =2/1/0
MRS = 1110
To Next Page
