Sharp FO-71 /51/11 - Page 38

FO-71TH/UX-61TH/GQ-56TH/FO-51TH
UX-41TH/GQ-31TH/UX-21TH/FO-11TH/GQ-11TH

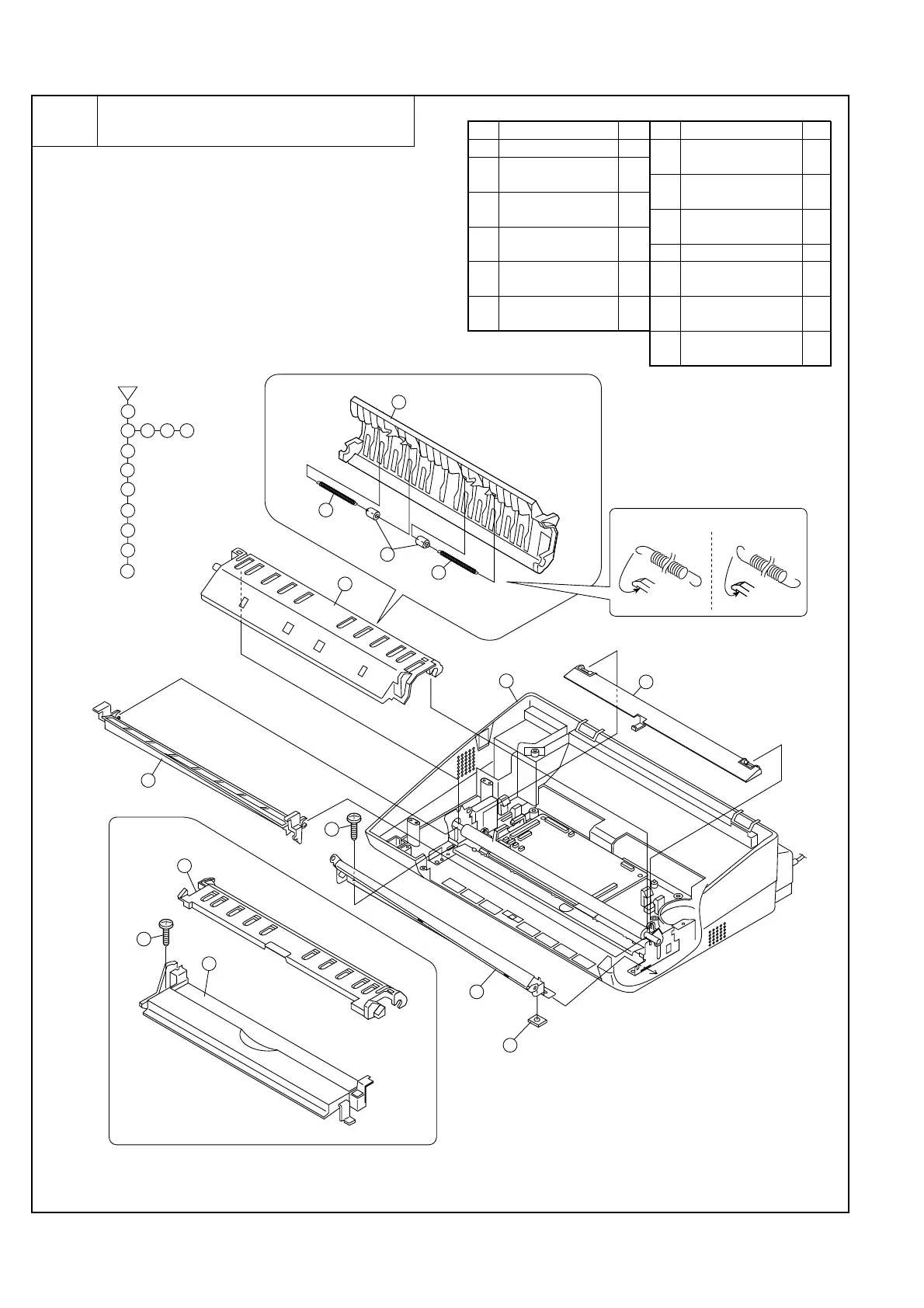

Head guide, PO guide, cutter guide
upper and cutter
Fig. 7
3 – 9
Parts list (Fig. 7)
7
1
2
3
4
4
5
1
10
11
13
6
8
9
7
2
3 4 5
7
8
9
6
Fix position
OK
NG
10
11
12
RELEA
SE
12
13
No. Part name Q’ty No. Part name Q’ty
1 Mechanism unit 1
2 Cutter guide upper 1
(FO-71/UX-61/GQ-56 only)
3 PO guide unit 1
(FO-71/UX-61/GQ-56 only)
4 Pinch roller spring 2
(FO-71/UX-61/GQ-56 only)
5 Pinch roller 2
(FO-71/UX-61/GQ-56 only)
6 PO guide 1
(FO-71/UX-61/GQ-56 only)
7 Screw (3×8) 1
(FO-51/11 UX-41/21 GQ-31/11 only)
8 PO guide 1
(FO-51/11 UX-41/21 GQ-31/11 only)
9 Release lever 1
(FO-51/11 UX-41/21 GQ-31/11 only)
10 Head guide 1
11 Screw (3×6) 1
(FO-71/UX-61/GQ-56 only)
12 Cutter cushion 1
(FO-71/UX-61/GQ-56 only)
13 Cutter 1
(FO-71/UX-61/GQ-56 only)
