Sharp FO-71 /51/11 - Page 40

FO-71TH/UX-61TH/GQ-56TH/FO-51TH
UX-41TH/GQ-31TH/UX-21TH/FO-11TH/GQ-11TH
Fig. 9
3 – 11
Head frame and thermal head
9

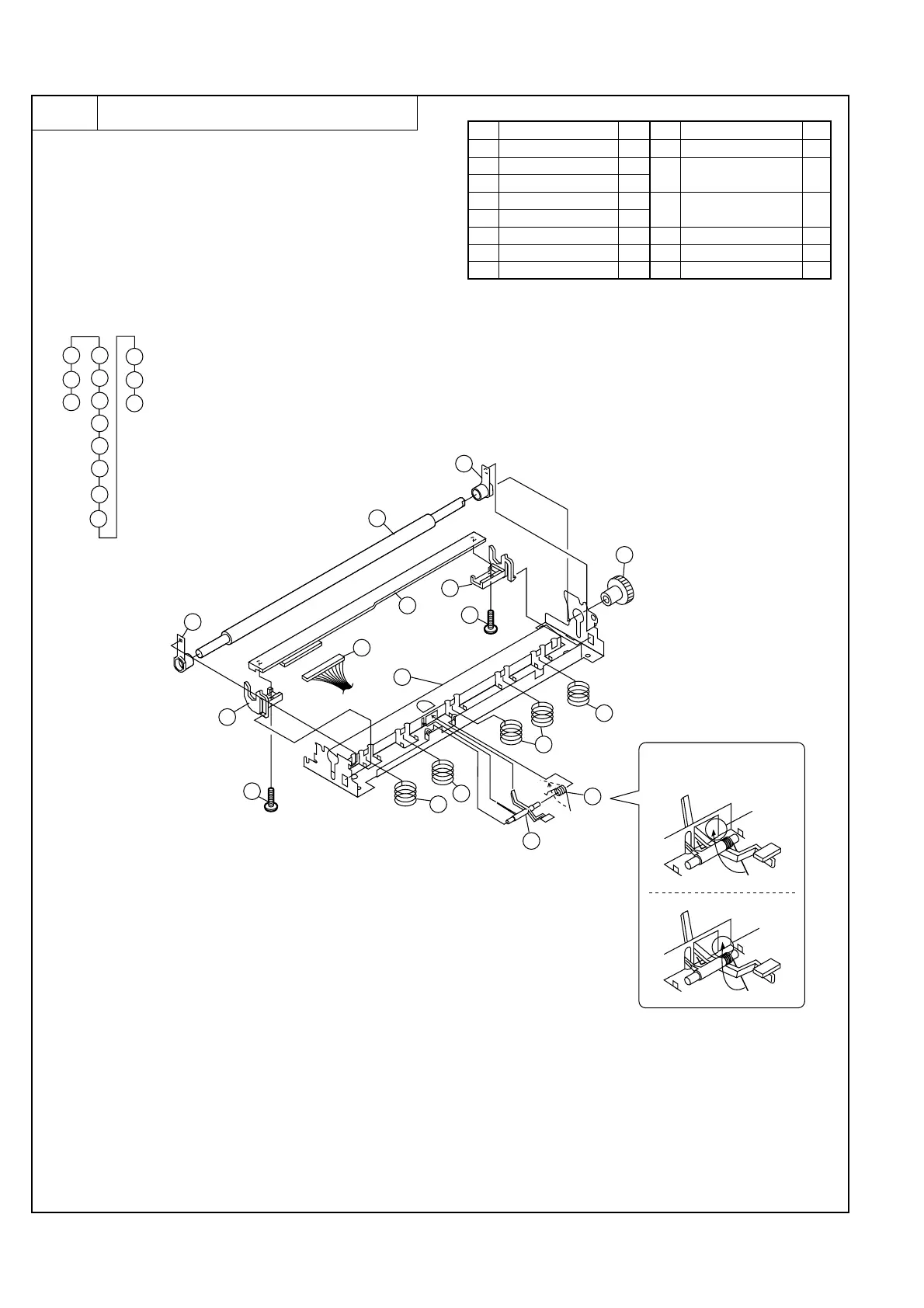

Parts list (Fig. 9)
5
12
10
13
11
14
12
12
13
13
11
9
14
2
2
2
1
1
3
3
4
4
5
7
8
6
9
7
6
10
8
Fix position of Document
Sensor lever spring
OK
NG
No. Part name Q’ty No. Part name Q’ty
1 Platen gear 1
2 Platen bearing 2
3 Platen roller 1
4 Connector 1
5 Screw (3×6) 1
6 Head holder, left 1
7 Screw (3×6) 1
8 Head holder, right 1
9 Thermal head 1
10 Document sensor lever 1
(FO-71/UX-61/GQ-56 only)
11 Document sensor lever spring 1
(FO-71/UX-61/GQ-56 only)
12 Head spring 2 2
13 Head spring 1 3
14 Head frame 1
