Sharp FO-71

FO-71RA
FO-51RA
2
3
3
4
5
5
6
6
1
2
8
8
9
9
10
10
7
7
7
13
13
14
14
15
15
16
16
12
11
18
18
19
19
11
12
17
17
12
LCD PWB
LCD PWB
Rib
Rib
LCD cable
Note) The LCD PWB should
be securely locked by the
click of the panel case.
16
4
1
Fix position
Hook
Hook

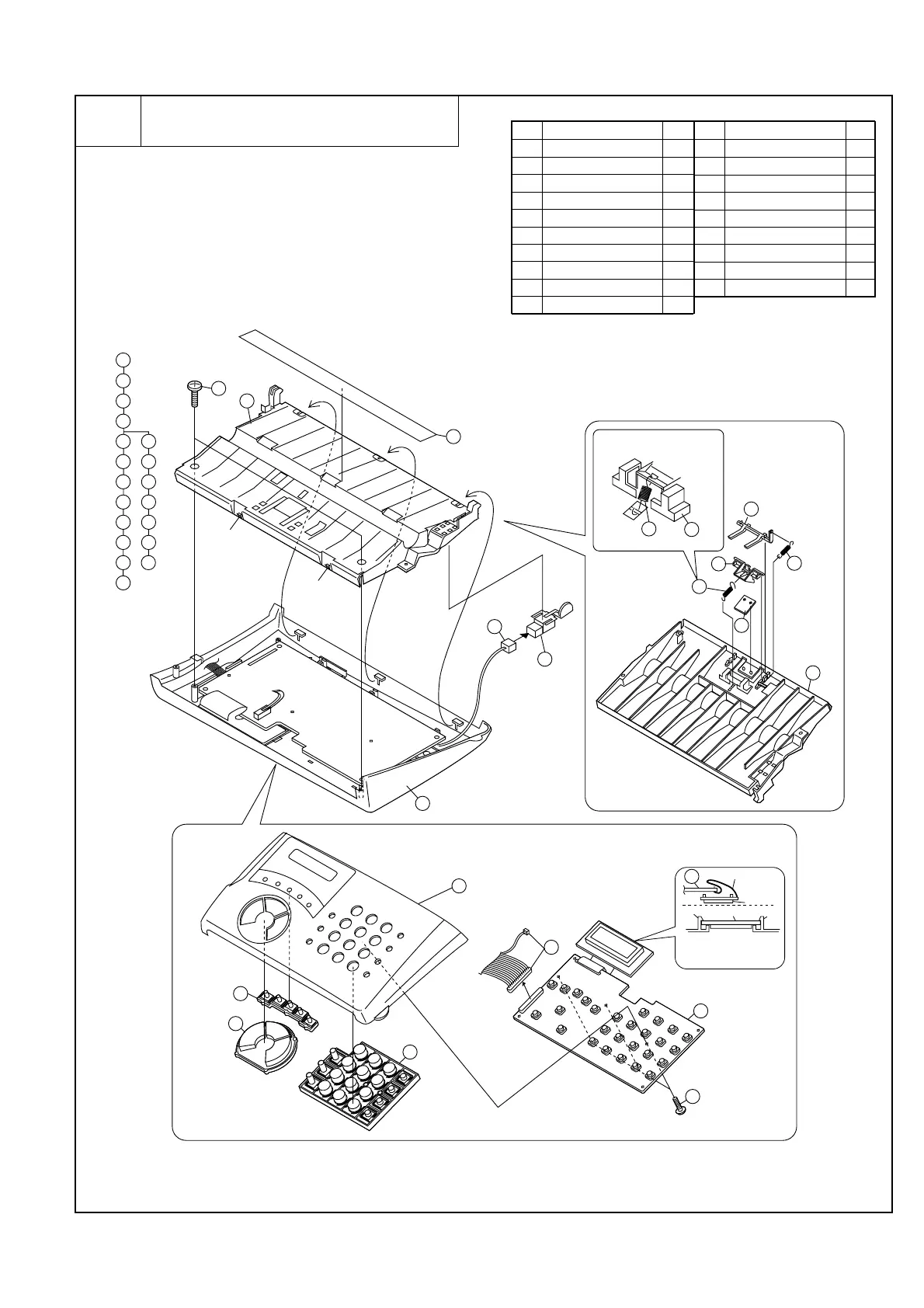

Fig. 4
3 – 6
Upper cabinet and document guide
upper
4
Parts list (Fig. 4)
11 Feed plate 1
12 Document guide upper 1
13 Screw (2×6) 3
14 Connector 1
15 Operation panel PWB unit 1
16 Direct key 1
17 Start key 1
18 12 key 1
19 Upper cabinet 1
No. Part name Q’ty No. Part name Q’ty
1 Screw (3×10) 2
2 Connector 1
3 Door sensor 1
4 Blind sheet 1
5 Document guide upper unit 1
6 Operation panel unit 1
7 Separate spring 1
8 Separator plate 1
9 Separator rubber 1
10 Feed spring 1
