Fan Speed Button /
Indicator Light (light green)
Filter Reset Button/
Indicator Light (light green)
OFF Timer Button/
Dust Monitor
(Temperature and humidity sensor /
dust sensor)
Child Lock Button/
Indicator Light
(light green)
Power Off Button
Plasmacluster Ion Indicator Light (blue)
Lighting: “ON”, Not lighting: “OFF”
Lights Control Button
Clean Air & Humidify Mode Button / Indicator Light (light green)
Plasmacluster Ion Shower Mode Button / Indicator Light (light green)
Clean Air Mode Button / Indicator Light (light green)
Sensor Unit
(internal)
Handle
(left and right)
Handle of Water Tank
Back
Humidifying Filter
Water Tank
Do Not Remove!
Do Not Remove!
Humidifying Tray
Float
Tray Partition
Roller
Back Panel
(Pre-filter)
Air Intake
HEPA Filter
Active Carbon & Silica
Gel Deodorizing Filter
Air Outlet (back)
Louver (automatic)
Caster
(4 locations)
Power cord
(plug shape varies by country)
Plug
Do not block the
air outlet or air intake.
Tank Cap
Main
Unit
Front
Air Outlet (front)
Caster
Lock

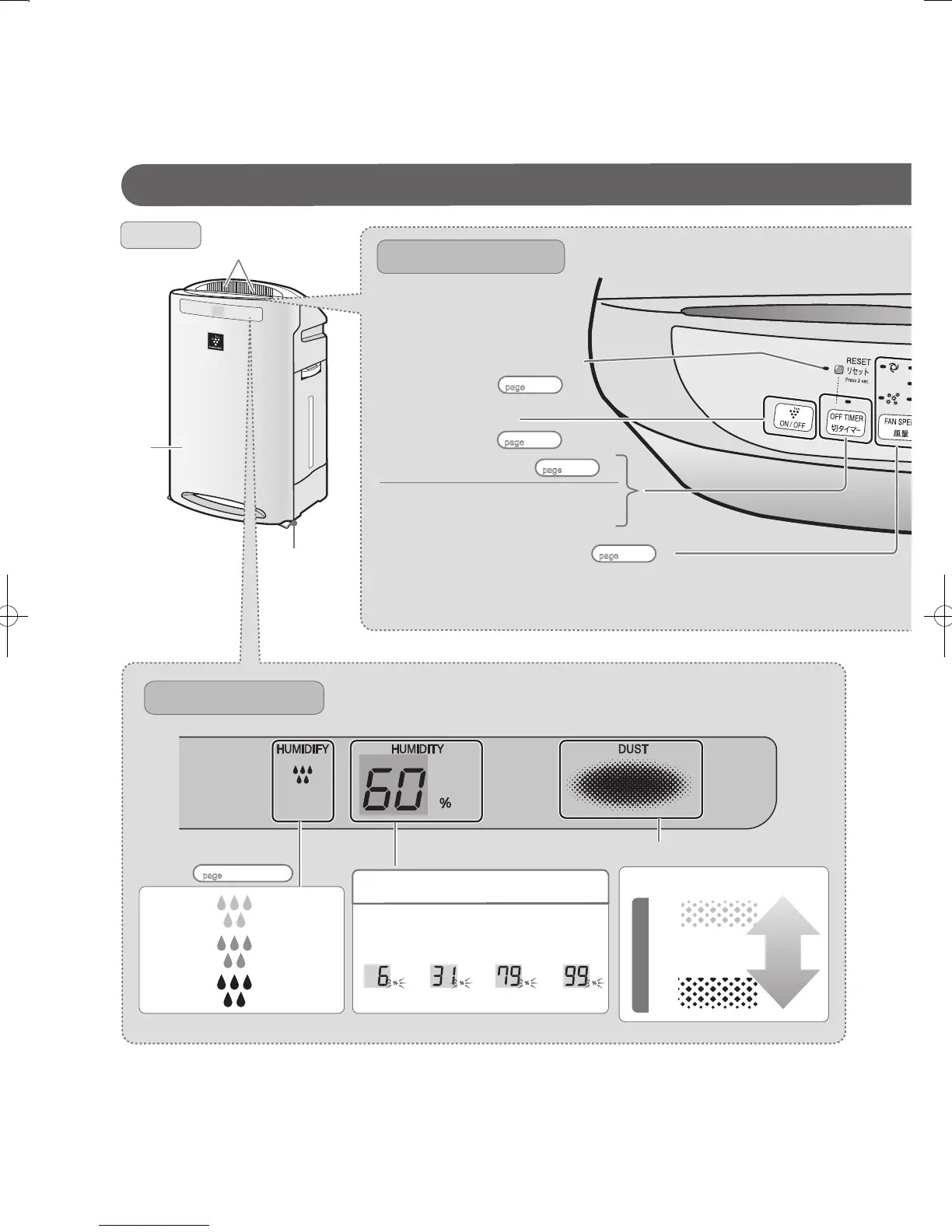

Main Unit, Control Panel and Front Monitor
Filter Maintenance Indicator
Light (orange)
Plasmacluster Ion
ON/OFF Button
Front Monitor
Indicates the air conditions and approximate humidity in a room.
Humidifying Indicator Light
Red
(Flashing)
Fill water
Off
Not humidifying
Green
Humidifying
Humidity level cannot be set.
Current Humidity Indicator (green)
Green
Red
Room air
Clean
Dirty
Control Panel
E-11
page
E-16
page
E-12
page
E-14
page
E-12
page
E-12
page
E-11
page
E-10
page
E-10
page
E-10～11
page
E-10～11
page
Indicates the pollution level of
room air with 5 levels *.
This styrene foam
is not a packing
material.
Be sure to attach it
during operation even if
humidification operation
is not carried out.
PARTS NAME
E-6
E-7
Press any button
indicated with to
start operation.
Indicates the present humidity (estimated).
(Display ranges from 6% to 99% by percent)
Casters can be moved
only in the lateral direction.
