LC-19D1E/S-BK/WH
5 – 24

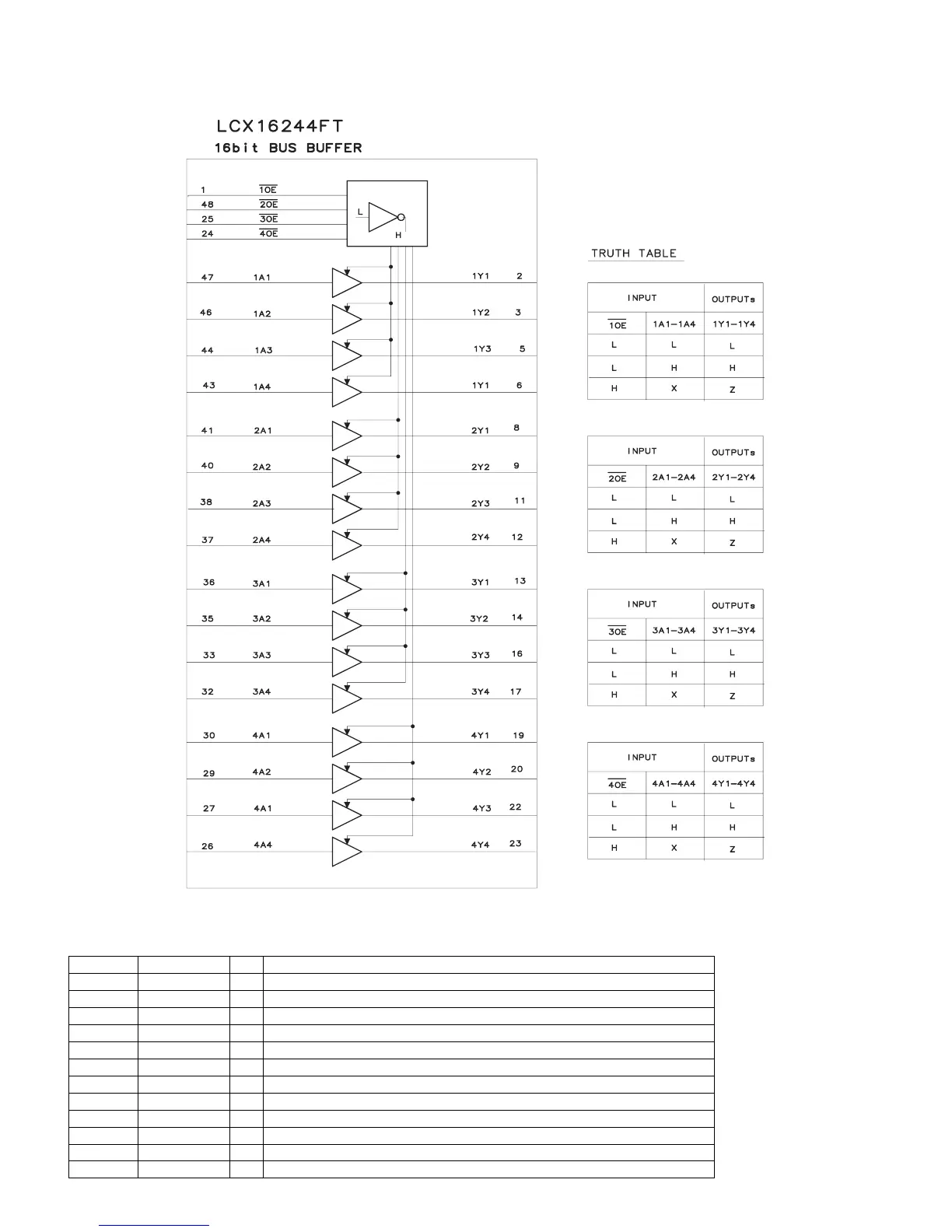

2.15. IC4402 (VHiLCX16244-1Y)
2.15.1 Block Diagram
2.15.2 Pin Connections and short description
Quad Bus Buffer
Pin No. Pin Name I/O Pin Function
1 1OE I Output Enable terminal 1
2 1Y1 O Output terminal 1Y1
3 1Y2 O Output terminal 1Y2
4 GND - Ground
5 1Y3 O Output terminal 1Y3
6 1Y4 O Output terminal 1Y4
7 VCC - Power supply
8 2Y1 O Output terminal 2Y1
9 2Y2 O Output terminal 2Y2
10 GND - Ground
11 2Y3 O Output terminal 2Y3
12 2Y4 O Output terminal 2Y4
To Next Page
