Service Manual
CHAPTER 2. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS

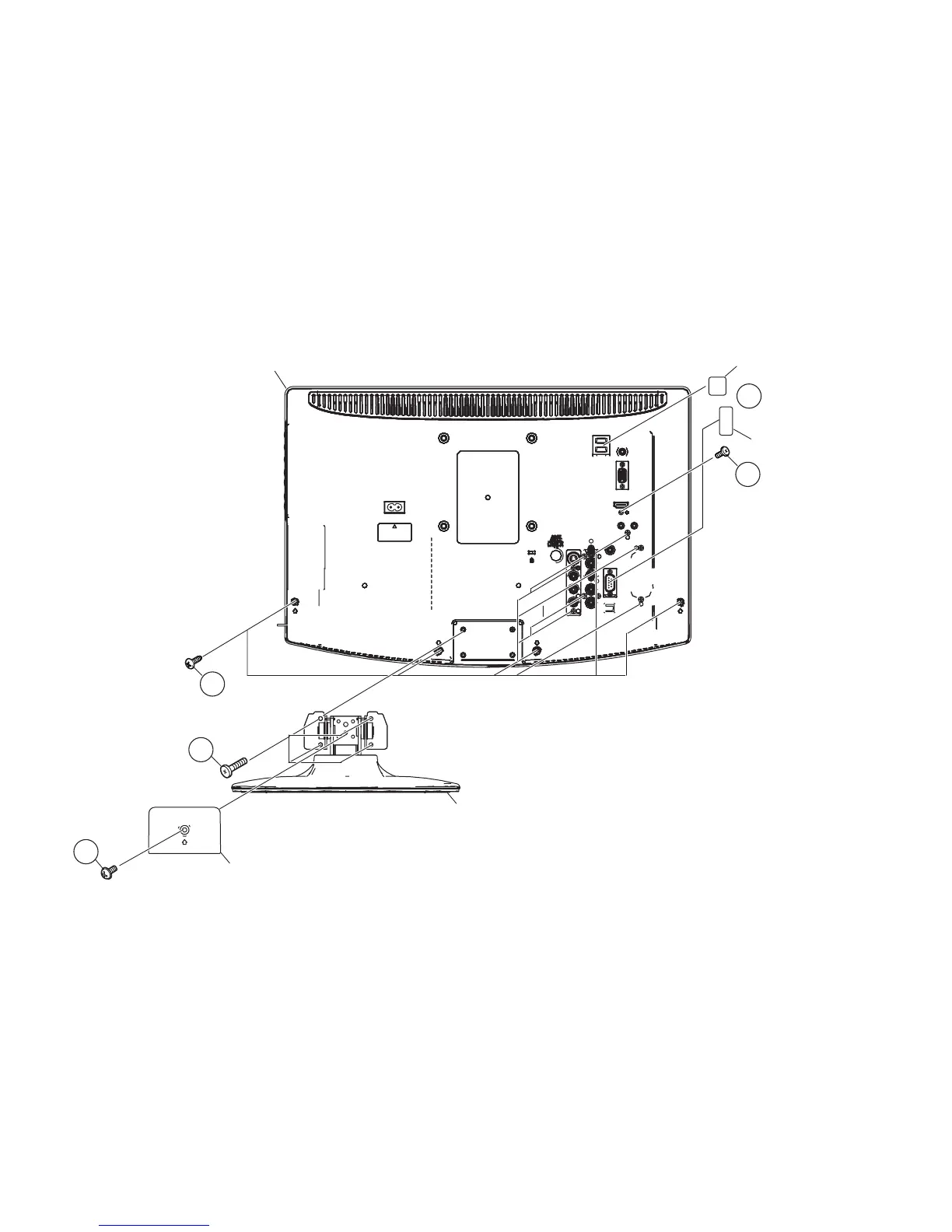

1. Detach the RS232C COVER and BASS CONE COVER [1].
2. Remove the 1 screw [2] and detach the STAND HINJI COVER.
3. Remove the 4 screws [3] and detach the STAND.
4. Remove the 1 screw [4].
5. Remove the 11 screws [5].
6. Remove the CAB-B after opening from the direction of an arrow.
2
3
4
5
1
BASS CONE COVER
RS232C COVER
STAND HINJI COVER
STAND
CAB-B
AC INPUT
110 - 240V
