Sharp LC-19D1E/S-BK/WH User Manual

LC-19D1E/S-BK/WH
2 – 2

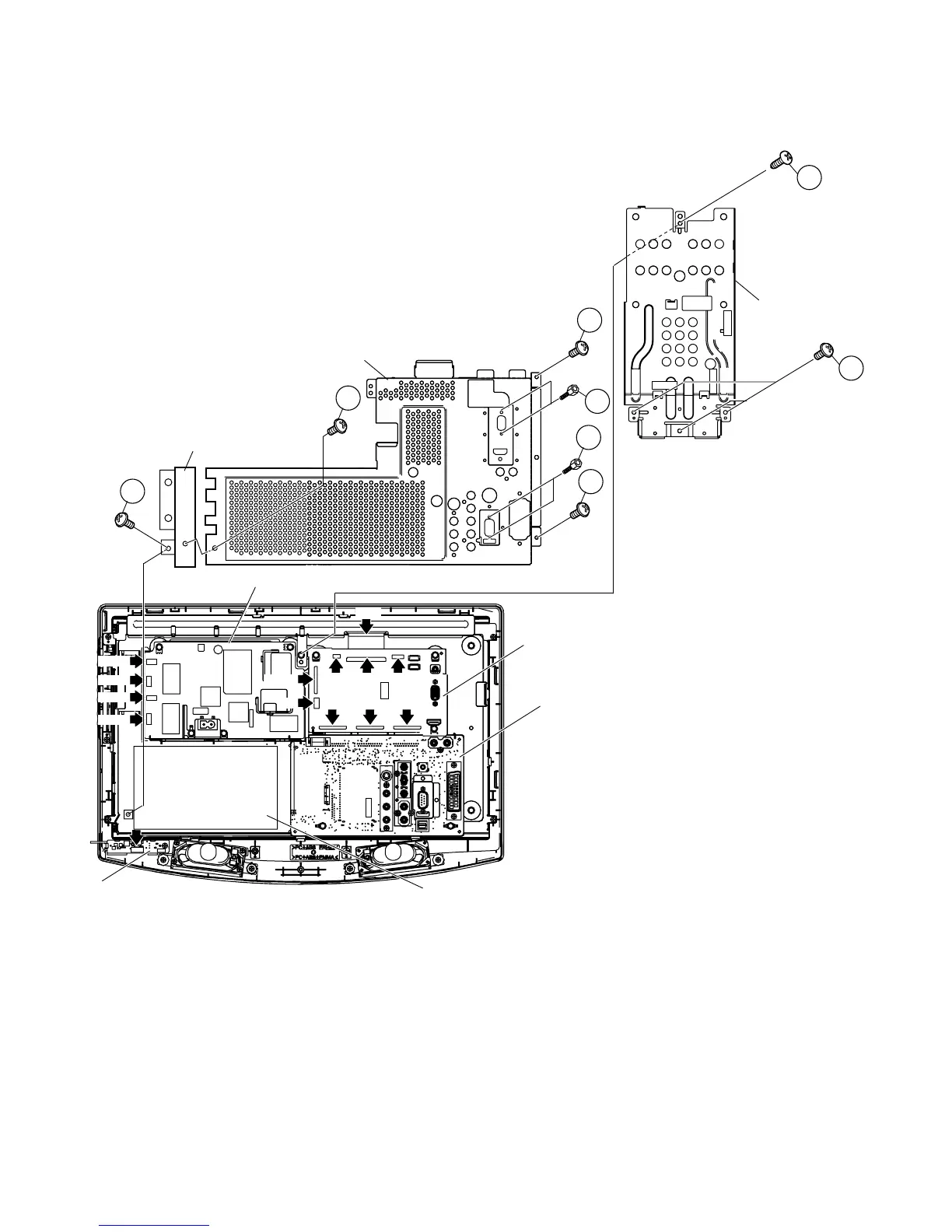

7. Remove the 3 screws [6], 1screw [7] and detach the VESA ANG.
8. Remove the 2 shaft screws [8], 2 shaft screws [9], 3 screws [10] and detach the MAIN SHIELD.
9. Remove the1 screw [11] and detach the C.I. CARD ANG.
10.Disconnect all the connectors from all the PWBs.
VESA ANG
7
6
8
9
10
MAIN SHIELD
MAIN UNIT
DIGITAL TUNER UNIT
DIGITAL UNIT
R/C, LED UNIT
POWER UNIT
C.I. CARD ANG
CN7504
CN7503
CN7505
CN7502
SP
SC1204
P2002
SC1201 SC1202 SC1203
P101
CN1
P2003SC9201
10
11
10
