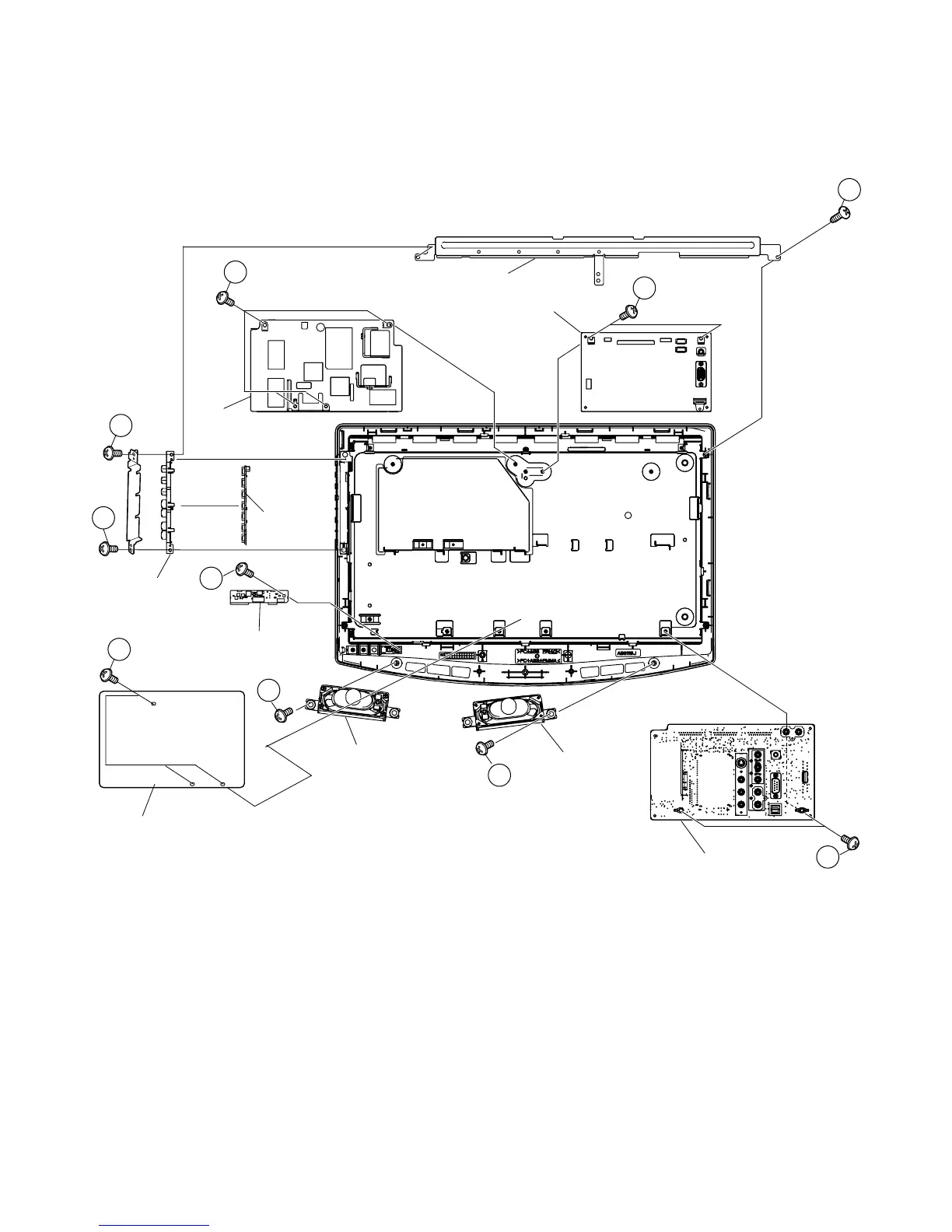

11.Remove the 3 screws [12] Detach the CONTROL-BTN, SW UNIT BARRIER and detach the SW UNIT from CONTROL-BTN [11].
12.Detach the SOURCE PWB SLD.
13.Remove the 2 screws [13] and detach the SP-HOLDER UNIT-L/R.
14.Remove the 11 screws [14] and detach the MAIN UNIT, POWER UNIT and SUB UNIT.
15.Remove the 1 screw [15] and detach the R/C, LED UNIT.
MAIN UNIT
SOURCE PWB SLD
DIGITAL TUNER UNIT
DIGITAL UNIT
R/C, LED UNIT
POWER
UNIT
CONTROL BTN
14
13
13
SW UNIT
SP HOLDER UNIT-R
SP HOLDER UNIT-L
12
12
12
14
14
15
14
