Error type
Lamp malfunction
Flashes once (rapidly)
Power failure
Flashes twice
Main CPU communication failure
Flashes 3 times
VSYNC failure
Flashes 4 times
Abnormal monitor temperature
Flashes 5 times
DL red; LED operation (1 cycle)
H: Illuminated
L: Off
H: Illuminated
L: Off
H: Illuminate
L: Off
H: Illuminate
L: Off
H: Illuminated
L: Off
Pins are monitor microprocessor pins.
ERR_PNL (IC1001: pin 100): Abnormal ÒLÓ. (detected only when the backlight is illuminated).
Note that after five detection counts, the lamp cannot be activated except in the monitoring process. Accumulated counts are cleared
to 0 when the corresponding setting in the monitor processing is made or after continuous illumination for 30 minutes.
Flow: INV_ERR (P3203: pin 5) -> CPU (IC1001: pin 100)
Refer to "2) Power failure details."
NON
VSYNC (IC1001: pin 71): ÒLÓ pulse every 16 ms when normal (interrupt).
The panel temperature remains 60¡C or higher for 15 seconds or more: CAUTION flashes red in the lower right of the OSD for AVC.
The panel temperature remains 60¡C or higher for over 25 seconds or more: error standby
(OSTEMP of OTHER2 in the monitoring process: displaying the thermistor AD value, TEMP ERR on FAN page: changing the AD
value for abnormal temperature): thermistor
1) DL red LED
Notes
Error type
Main PWB
DET_10V
(voltage failure)
Flashes once
DET_3.3V (voltage failure)
Flashes twice
Digital PWB
DET_D10V (voltage failure)
Flashes 3 times
DET_D3.3V (voltage failure)
Flashes 4 times
Panel-related
DET_PNL5V (voltage failure)
Flashes 5 times
Panel-related
DET_PN1_5V (voltage failure)
Flashes 6 times
OPC green; LED operation (1 cycle)
H: Illuminated
L: Off
H: Illuminated
L: Off
H: Illuminate
L: Off
H: Illuminated
L: Off
H: Illuminated
L: Off
H: Illuminated
L: Off
Pins are monitor microprocessor pins unless otherwise specified.
CPLD1 (IC1014: pin 42): Abnormal ÒLÓ. Main power supply 10V is not achieved.
Flow: +10V (Main PWB P1801: pins 1 and 2) -> Power supply detection IC (IC1811) -> CPLD1 (IC1014: pin 42)
NON
NON
NON
CPLD1 (IC1014: pin 41): Abnormal ÒLÓ. 5V for the LCD panel is not achieved.
Flow: PNL5V (Main PWB P1801: pins 7, 8 and 9) -> Power supply detection IC (IC1810) -> CPLD1 (IC1014: pin 41)
Detected only when the panel is operated.
CPLD2 (IC1503: pin 97): Abnormal ÒLÓ. Inverter 5V is not achieved.
Flow: 5V regulator (IC1809) -> Gate IC (IC3203) -> CPLD2 (IC1503: pin 97)
Detected only when the inverter is illuminated.
2) Power failure details (DL red LED flashes twice and OPC green LED flashes) Notes
Notes
250ms 1sec

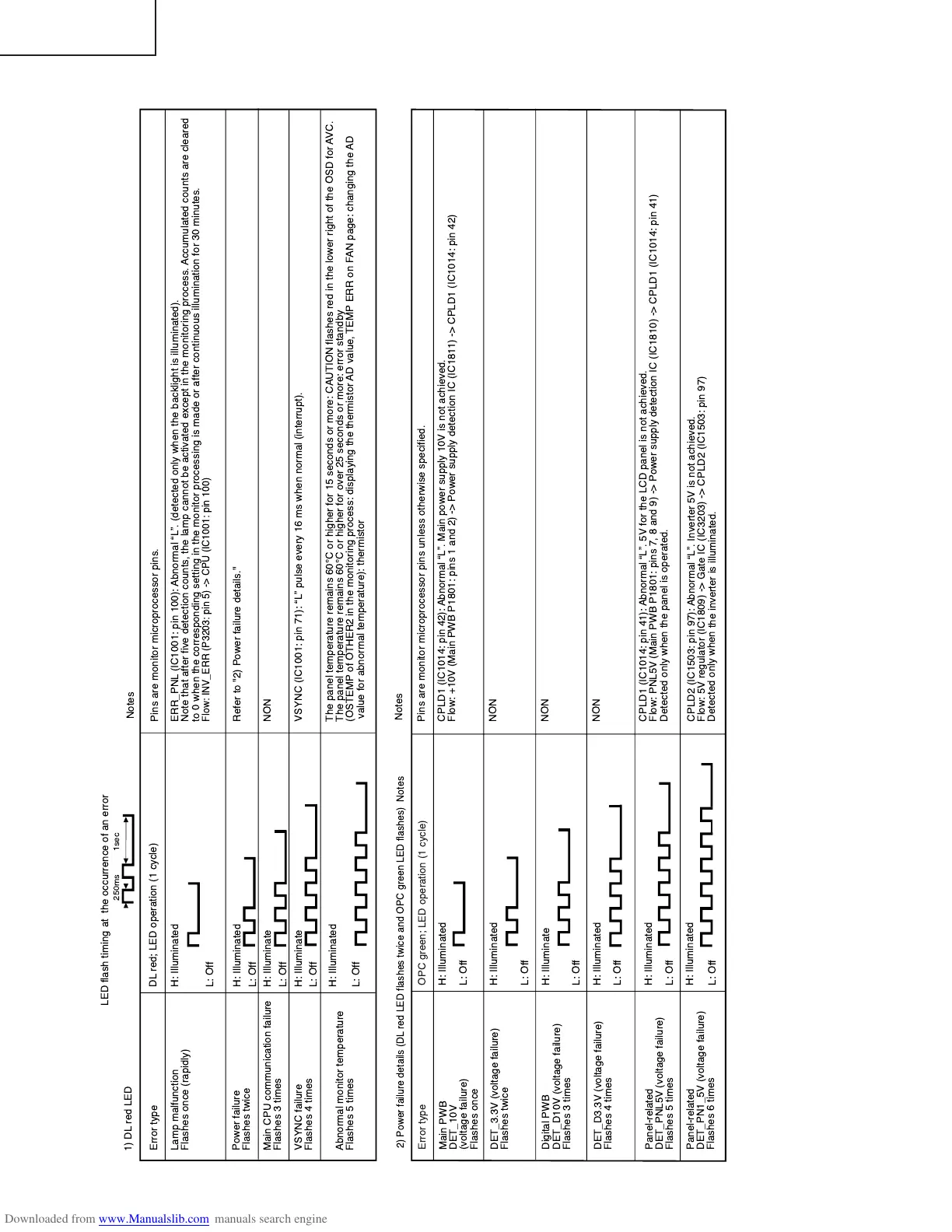

LED flash timing at the occurrence of an error
