Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
LC-26DA5U
LC-32DA5U
102
EXTENSION CABLES
QCNW-C222WJQZ J 80pins FFC L=1000mm AW
Pitch=0.5mm, LCD Controller
to LCD Panel x2 used
QCNW-D938WJQZ J 60pins FFC L=1000mm AV
AV to Main Unit (FC)
QCNW-D939WJQZ J 12pins L=1000mm AX
AV to Main Unit (FD)
QCNW-D940WJQZ J 20pins L=1000mm BA
Power to Main Unit (PE)
QCNW-D941WJQZ J 10pins L=1000mm AW
Power to Inverter Unit,x2 Used
(PG1), (PG2)
QCNW-D942WJQZ J 30pins L=1000mm BG
LCD Cont. to Main Unit (LV)
QCNW-D943WJQZ J 7pins L=1000mm AT
LCD Cont. to Main Unit (SH)
QCNW-D944WJQZ J 12pins L=1000mm AX
AV to Power Supply Unit (PA)
QCNW-E068WJQZ J 6pins L=1000mm AS
Main to Inverter Unit (MI)
SERVICE JIGS
(USE FOR SERVICING)
SUPPLIED ACCESSORIES
å X1 QACCDA039WJPZ X AC Cord AR
X2 RRMCGA416WJSA X Remote Control Unit BA
X3 LHLDW0110CEZZ X Cable Clamp AF
X4 LHLDWA083WJ00 X Cable Band AE
X5 TCADEA126WJZZ X Questionnaire Card AC
X6 TiNS-B945WJZZ X Operation Manual AY
PACKING PARTS
(NOT REPLACEMENT ITEM)
(LC-26DA5U)
S1 SPAKCC137WJZZ – Packing Case —
S2 SPAKFA634WJZZ – Accessory Case —
S3 SPAKPA390WJZZ – Wrapping Paper (Display) —
S4 SPAKFA806WJZZ – Stand-Pad —
S5 SPAKPA391WJZZ – Wrapping Paper (Stand) —
S6 SPAKXA699WJZZ – Buffer Material —
S7 SSAKA0101GJZZ – Polyethylene Bag —
S8 TLABKA009WJZZ – Bar Code Label —
(LC-32DA5U)
S1 SPAKCC138WJZZ – Packing Case —
S2 SPAKFA770WJZZ – Accessory Case —
S3 SPAKPA438WJZZ – Wrapping Paper (Display) —
S4 SPAKFA807WJZZ – Stand Pad —
S5 SPAKPA377WJZZ – Wrapping Paper (Stand) —
S6 SPAKXA755WJZZ – Baffer Material —
S7 SSAKA0101GJZZ – Polyethylene Bag —
S8 TLABKA009WJZZ – Bar Code Label —

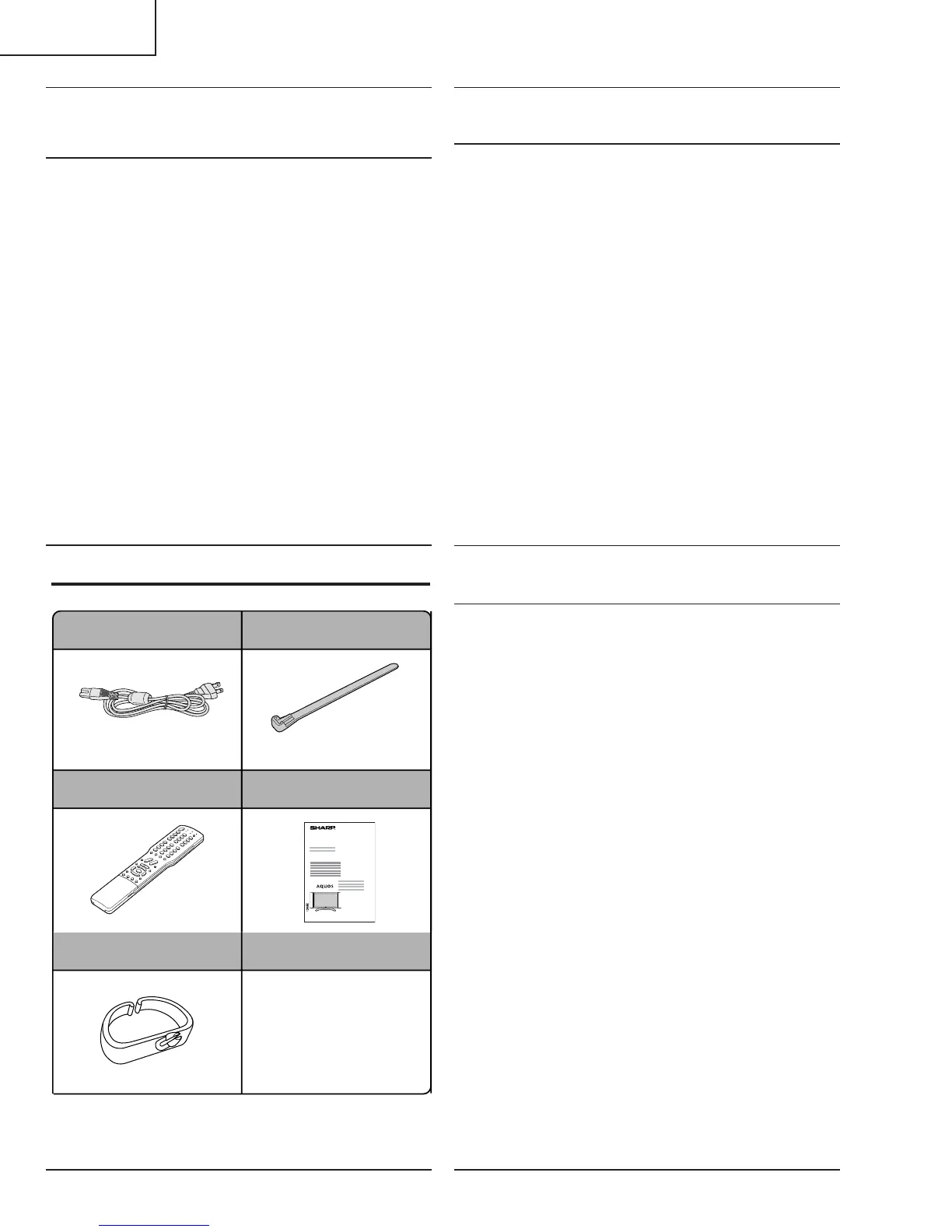

Supplied accessories
Make sure the following accessories are provided with the product.
X2 Remote control unit
X1 AC cord
X6 Operation manual
X4 Cable band
X3 Cable clamp
