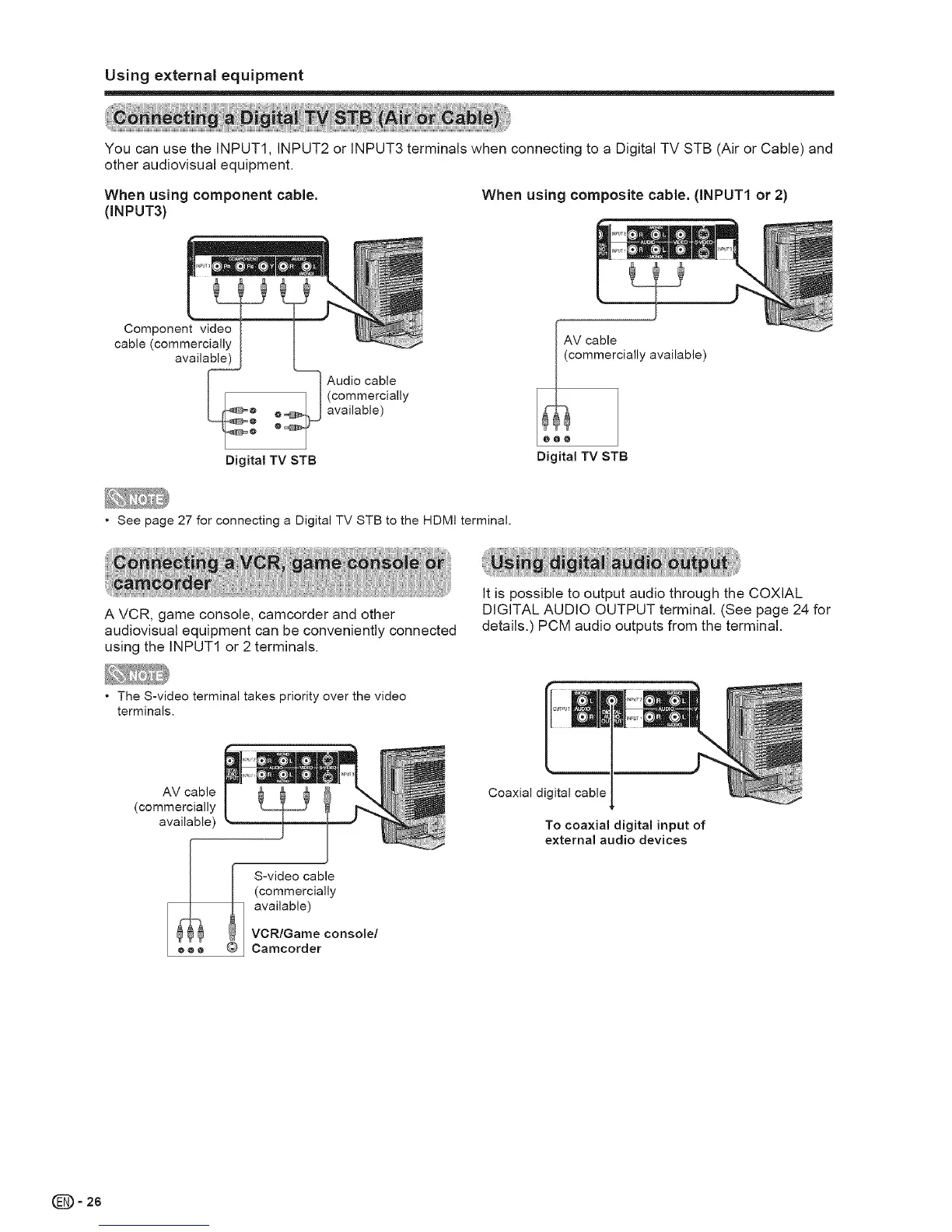

Using external equipment
You can use the INPUT1, INPUT2 or INPUT3 terminals when connecting to a Digital TV STB (Air or Cable) and
other audiovisual equipment.
When using component cable.
(INPUT3)
When using composite cable. (INPUT1 or 2)
Component video
cable (commercially
available)
Digital TV STB
Audio cable
(commercially
available)
AV cable
(commercially available)
@@@
Digital TV STB
• See page 27 for connecting a Digital TV STB to the HDMI terminal.
A VCR, game console, camcorder and other
audiovisual equipment can be conveniently connected
using the INPUT1 or 2 terminals.
It is possible to output audio through the COXlAL
DIGITAL AUDIO OUTPUT terminal. (See page 24 for
details.) PCM audio outputs from the terminal.
• The S-video terminal takes priority over the video
terminals.
AV cable
(commercially
available)
Coaxial digital cable
To coaxial digital input of
external audio devices
S-video cable
(commercially
available)
VCR/Game console/
Camcorder
(_)= 26
