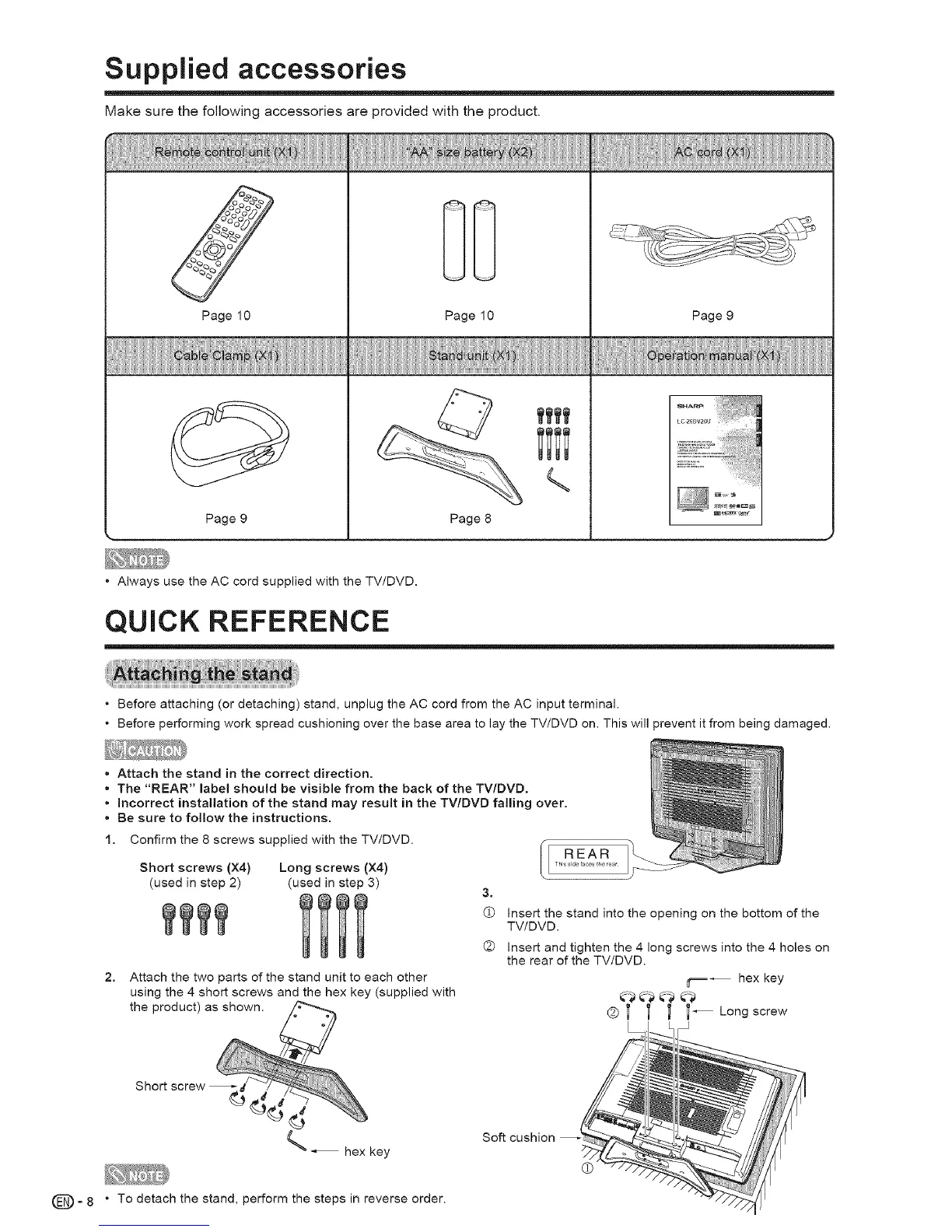

Supplied accessories
Make sure the following accessories are provided with the product.
Page 10 Page 10 Page 9
Page 9
%
Page 8
• Always use the AC cord supplied with the TV/DVD.
QUICK REFERENCE
• Before attaching (or detaching) stand, unplug the AC cord from the AC input terminal.
• Before performing work spread cushioning over the base area to lay the TV/DVD on. This will prevent it from being damaged.
• Attach the stand in the correct direction.
• The "REAR" label should be visible from the back of the TV/DVD.
• incorrect installation of the stand may result in the TV/DVD falling over.
• Be sure to follow the instructions.
1. Confirm the 8 screws supplied with the TV/DVD.
Short screws (X4)
(used in step 2)
Long screws (X4)
(used in step 3)
3,
Attach the two parts of the stand unit to each other
using the 4 short screws and the hex key (supplied with
the product) as shown.
[ REAR
This side faces the rear
Insert the stand into the opening on the bottom of the
TV/DVD.
Insert and tighten the 4 long screws into the 4 holes on
the rear of the TV/DVD.
_ hex key
_)_t _# dl % Long screw
Short screw
_hex key
Soft cushion
(_) = 8 " To detach the stand, perform the steps in reverse order.
