LC-30HV4E
Appendix
SCART (INPUT 1)
1. Audio right output
(TV Monitor out)
2. Audio right input
3. Audio left output
(TV Monitor out)
4. Common earth for audio
5. Earth for blue
6. Audio left input
7. Blue input
8. Audio-video control
9. Earth for green
10. Not used
11. Green input
12. Not used
13. Earth for red
14. Not used
15. Red input
16. Red/Green/Blue control
17. Earth for video
18. Earth for Red/Green/Blue
control
19. Video output
(TV Monitor out)
20. Video input
21. Plug shield
SCART (INPUT 2)
1. Audio right output
2. Audio right input
3. Audio left output
4. Common earth for audio
5. Earth
6. Audio left input
7. Not used
8. Audio-video control
9. Earth
10. AV LINK control
11. Not used
12. Not used
13. Earth
14. Not used
15. Chroma S-Video input
16. Not used
17. Earth for video
18. Earth
19. TV Monitor output
20. Video input/S-video input
21. Plug shield
SCART (INPUT 3)
1. Audio right output
2. Audio right input
3. Audio left output
4. Common earth for audio
5. Earth
6. Audio left input
7. Blue input
8. Audio-video control
9. Earth
10. Not used
11. Green input
12. Not used
13. Earth
14. Not used
15. Red input/Chroma S-Video
input
16. Red/Green/Blue control
17. Earth for video
18. Earth
19. TV Monitor output
20. Video input/S-video input
21. Plug shield
1 3 5 7 9 111315171921
2 4 6 8 101214161820

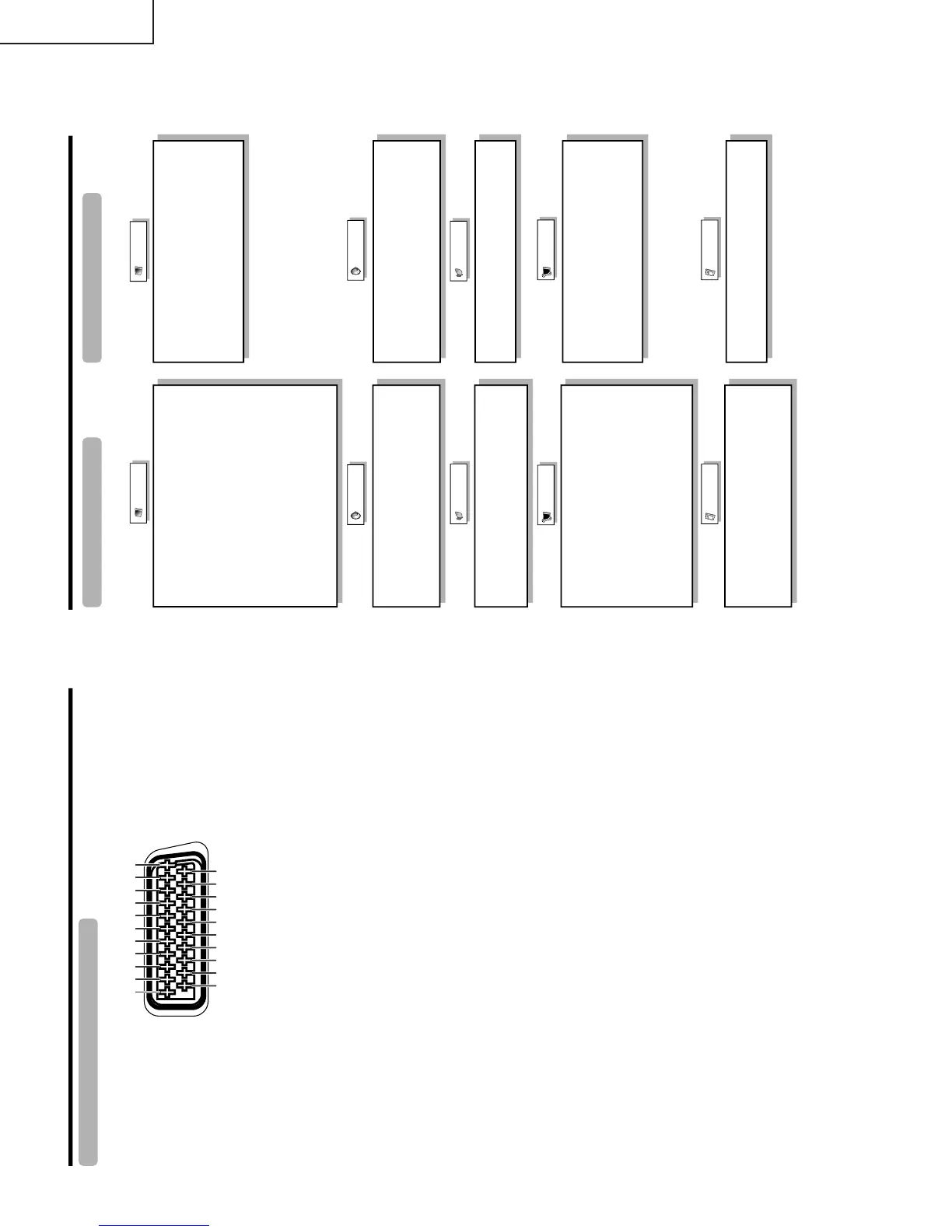

Connecting pin assignments for SCART
Various audio and video devices may be connected via the SCART terminals.
Basic adjustment settings
AV input mode menu items
List of AV menu items to help you with
operations
Contrast
Brightness
Colour
Tint
Sharpness
Advanced
C.M.S.
Colour Temp
Black
Monochrome
Film Mode
I/P Setting
DNR
Power Save
No Signal off
No Operation off
Auto Installation
Programme Setup
Child Lock
Position
WSS
4:3 Mode
Full Mode
Rotate
Language
Treble
Bass
Balance
Surround .
Input Select
Audio Out
Cool Climate
Colour System
Audio
Power control
Setup
Option
PC input mode menu items
List of PC menu items to help you with
operations
Contrast
Brightness
Red
Green
Blue
C.M.S.
Power Save
Power Management
Input Signal
Auto Sync.
Fine Sync.
Rotate
Language
Audio
Power control
Setup
Option
Treble
Bass
Balance
Surround
Audio Out
Cool Climate
