Need help?Do you have a question about the Sharp LC-30HV4E and is the answer not in the manual?
General| Screen Size | 30 inches |
|---|---|
| Display Type | LCD |
| HDMI Ports | 1 |
| USB Ports | 0 |
| Weight | 13 kg |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 800:1 |
| Brightness | 450 cd/m² |
| Response Time | 16 ms |
| Power Consumption | 135 W |
| Resolution | 1366 x 768 |
| Input Ports | Component, Composite, S-Video |
| Viewing Angle | 170° (H) / 170° (V) |
Highlights special safety characteristics of electrical and mechanical parts in LCD TVs.
Explains the use of lead-free solder and the LF symbol on PWBs.
Recommends dedicated soldering bits for lead-free solder due to higher melting point.
Provides guidance on soldering techniques with lead-free solder, including tip care.
Identifies and illustrates the names of parts for the Display and AVC System.
Provides instructions for connecting system cables and AC cords for initial setup.
Provides dimensional drawings and measurements for the AVC System unit in millimeters.
Details the procedure for removing major parts of the AVC System unit, including cabinet and PWB.
Explains the procedure to access the system's in-process adjustment mode.
Describes OSD menu screens and items used for manual adjustments.
Lists the necessary tools for program upgrading, including PC and cables.
Outlines the steps needed before rewriting a program, including software setup and connections.
Details the procedure for rewriting the main program of the AVC System.
Procedure for adjusting the +B voltage, specifying signal and voltmeter connection.
Explains how to adjust common bias for different frequency settings (50 Hz, 60 Hz, PC).
Details the process for background adjustment of R, G, B offsets and gammas.
Describes how to perform initialization, including user clear and full EEPROM clear.
Describes the first layer display of the OSD menu, showing titles and items.
Explains the second layer display of the OSD menu, showing adjustment items and screen modes.
Explains how to change data in the adjustment item display using VOL UP/DOWN keys.
Details basic behaviors of remote controller and main unit keys during adjustment.
Information on IC2501 for decoding audio signals and serving as an audio data selector.
Details IC2510's role in controlling audio delay to synchronize with video signals.
Describes IC1301 as a 7-input, 3-output selector for audio and video signals.
Information on IC1401, a 4-input, 3-output video selector for component input.
Information on IC801/IC802 for video and chroma demodulation for PAL/NTSC/SECAM.
Details IC803 for component input processing and H/V synchronization signal processing.
Information on IC1901 as an FPGA for synchronous processing and horizontal blanking signals.
Details ICs within the PC I/F unit, including A/D converters and panel link transmitters.
Describes IC10004 as a 3-channel A/D converter for video and PC signals.
Information on IC10310, a 3-channel A/D converter for video signals used in two-screen applications.
Details IC10025 for I/P conversion, scaling, and OSD signal generation.
Troubleshooting table for AVC System issues related to power and image problems.
Troubleshooting steps for no sound from speakers when using external devices or PC.
Troubleshooting steps for no sound when TV signal is received, checking tuner and audio ICs.
Troubleshooting steps for abnormal audio or no monitor audio output, checking levels and mute circuits.
Troubleshooting steps for no video image on INPUT1, checking signal application and input selection.
Troubleshooting steps for no video image on INPUT2, checking signal application and input selection.
Troubleshooting steps for no video image on INPUT3 and INPUT4, checking signal application and selection.
Troubleshooting steps for no Y/C image on INPUT2 and INPUT3, checking signal application and selection.
Troubleshooting video signal path from IC1301 to IC401/IC402 and IC801/IC802.
Troubleshooting Y/C signal path from IC1301 to IC401/IC402 and IC801/IC802.
Troubleshooting MAIN system video signals from IC801 to IC803 and FL810.
Troubleshooting SUB system video signals from IC802 to Q901-2/Q903-4/Q905-6.
Troubleshooting steps for no image when TV signal is received, checking tuner and IC1301.
Troubleshooting steps when no teletext screen appears, checking teletext signal and IC1601.
Troubleshooting steps for no monitor image on AV-OUT and S-OUT, checking signal and IC1301.
Troubleshooting steps for no TV, video, component, or PC picture, checking inputs and ICs.
Troubleshooting steps for synchronization failure in MAIN system RGB/COMPONENT signals.
Troubleshooting table for Display issues, covering power and LED status.
Troubleshooting steps for no picture, checking signal input, ICs, and system cable.
Troubleshooting steps for no sound, checking signal waveform at transistors and ICs.
Diagram showing the chassis layout of the AVC System, indicating component placement on AV and Power PWBs.
Component layout diagrams for the MAIN PWB and FRONT PWB of the AVC System.
Component layout diagrams for the MAIN, INVERTER-1, and INVERTER-2 PWBs of the Display.

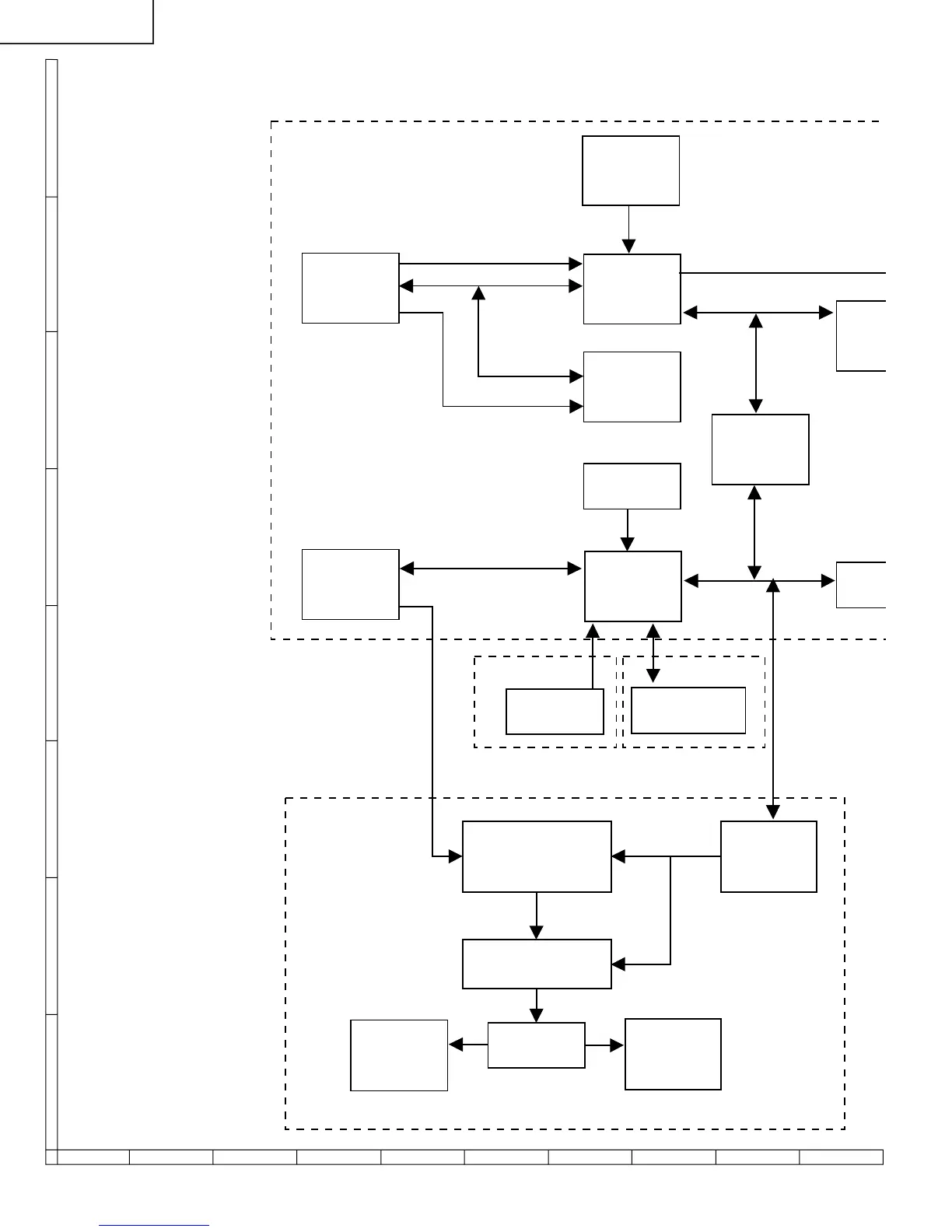

Block diagram illustrating the system architecture of the AVC System, showing signal flow.
Detailed block diagram illustrating the signal flow within the AVC System, showing signal paths.
Block diagram of the power system within the AVC System, detailing power distribution.
Block diagram for the PC I/F unit, detailing signal paths and ICs involved.
Block diagram illustrating the signal flow for the Display unit, covering main and audio units.
Block diagram illustrating the power unit of the Display, showing voltage regulation and distribution.
Diagram showing the overall wiring for the AVC system, part 1 of 2.
Diagram showing the overall wiring for the AVC system, part 2 of 2.
Specifies conditions for measuring voltage, including AC adapter and signal input.
Outlines conditions for observing waveforms, including color settings and signal generator.
Explains symbols and units used for resistors and capacitors in schematic diagrams.
Printed wiring board layouts for the SR Unit (Component and Chip Parts Sides).
Printed wiring board layouts for the MAIN Unit (Side-A).
Printed wiring board layouts for the MAIN Unit (Chip Parts Side-A).
Printed wiring board layouts for the PC I/F Unit (Side-A).
Printed wiring board layout for the MAIN Unit (Component Side-A) of the Display.
Printed wiring board layout for the MAIN Unit (Chip Parts Side-A) of the Display.
Printed wiring board layout for the MAIN Unit (Component Side-B) of the Display.
Printed wiring board layout for the MAIN Unit (Chip Parts Side) of the Display.
Printed wiring board layout for the LCD CONTROL Unit (Component Side-A).
Printed wiring board layout for the LCD CONTROL Unit (Chip Parts Side-A).
Printed wiring board layout for the LCD CONTROL Unit (Component Side-B).
Printed wiring board layout for the LCD CONTROL Unit (Chip Parts Side-B).
Printed wiring board layout for the AUDIO Unit (Component Side).
Printed wiring board layout for the AUDIO Unit (Chip parts Side).
Printed wiring board layout for the INVERTER-1 Unit (Component Side).
Printed wiring board layout for the INVERTER-1 Unit (Chip parts Side).
Printed wiring board layout for the INVERTER-2 Unit (Component Side).
Printed wiring board layout for the INVERTER-2 Unit (Chip parts Side).
Printed wiring board layout for the INVERTER GROUND Unit (Component Side).
Printed wiring board layout for the INVERTER GROUND Unit (Chip Parts Side).
Printed wiring board layout for the OPERATION Unit (Component Side).
Printed wiring board layout for the OPERATION Unit (Chip Parts Side).
Printed wiring board layout for the R/C, LED Unit (Component Side).
Printed wiring board layout for the SPEAKER-L Unit (Component Side).
Printed wiring board layout for the SPEAKER-R Unit (Component Side).
Printed wiring board layout for the R/C, LED Unit (Chip Parts Side).
Printed wiring board layout for the SPEAKER-L Unit (Chip Parts Side).
Printed wiring board layout for the SPEAKER-R Unit (Chip Parts Side).
Lists printed wiring board assemblies for various units, not for replacement.
Lists integrated circuits used in the MAIN Unit (AVC System), including part numbers and codes.
Lists transistors used in the MAIN Unit (AVC System), including part numbers and codes.
Identifies the LCD Panel unit and its associated parts list.
Lists diodes used in the MAIN Unit (AVC System), including part numbers and codes.
Lists packaged circuits like X601, X801, X802 used in the MAIN Unit.
Lists filters and coils used in the MAIN Unit (AVC System), including part numbers and codes.
Lists capacitors used in the MAIN Unit (AVC System), including part numbers and codes.
Lists resistors used in the MAIN Unit (AVC System), including part numbers and codes.
Lists integrated circuits used in the AV Unit (AVC System), including part numbers and codes.
Lists transistors used in the AV Unit (AVC System), including part numbers and codes.
Lists diodes used in the AV Unit (AVC System), including part numbers and codes.
Lists packaged circuits like X601, X801, X802 used in the AV Unit.
Lists filters and coils used in the AV Unit (AVC System), including part numbers and codes.
Lists capacitors used in the AV Unit (AVC System), including part numbers and codes.
Lists capacitors used in the AV Unit (AVC System), including part numbers and codes.
Lists capacitors used in the AV Unit (AVC System), including part numbers and codes.
Lists resistors used in the AV Unit (AVC System), including part numbers and codes.
Lists integrated circuits used in the FRONT Unit (AVC System), including part numbers and codes.
Lists transistors used in the FRONT Unit (AVC System), including part numbers and codes.
Lists diodes used in the FRONT Unit (AVC System), including part numbers and codes.
Lists packaged circuits like X601, X801, X802 used in the FRONT Unit.
Lists filters and coils used in the FRONT Unit (AVC System), including part numbers and codes.
Lists capacitors used in the FRONT Unit (AVC System), including part numbers and codes.
Lists resistors used in the PC I/F Unit (AVC System), including part numbers and codes.
Lists integrated circuits for the LCD CONTROL Unit (Display), including part numbers and codes.
Lists transistors for the LCD CONTROL Unit (Display), including part numbers and codes.
Lists diodes used in the MAIN Unit (Display), including part numbers and codes.
Lists filters and coils used in the MAIN Unit (Display), including part numbers and codes.
Lists capacitors used in the MAIN Unit (Display), including part numbers and codes.
Lists resistors used in the MAIN Unit (Display), including part numbers and codes.
Lists integrated circuits for the AUDIO Unit (Display), including part numbers and codes.
Lists transistors for the AUDIO Unit (Display), including part numbers and codes.
Lists diodes used in the AUDIO Unit (Display), including part numbers and codes.
Lists capacitors used in the AUDIO Unit (Display), including part numbers and codes.
Lists resistors used in the AUDIO Unit (Display), including part numbers and codes.
Lists miscellaneous parts like fuses, plugs, and connectors for INVERTER-1 and INVERTER-2 Units.
Lists transistors used in the INVERTER-GND and OPERATION Units, including part numbers and codes.
Lists diodes used in the OPERATION Unit, including part numbers and codes.
Lists capacitors used in the INVERTER-GND Unit, including part numbers and codes.
Lists resistors used in the INVERTER-GND and OPERATION Units, including part numbers and codes.
Lists integrated circuits for the R/C, LED Unit, including part numbers and codes.
Lists transistors for the R/C, LED Unit, including part numbers and codes.
Lists diodes used in the R/C, LED Unit, including part numbers and codes.
Lists capacitors used in the SPEAKER-L Unit, including part numbers and codes.
Lists integrated circuits for the POWER Unit (Display), including part numbers and codes.
Lists transistors for the POWER Unit (Display), including part numbers and codes.
Lists diodes used in the POWER Unit (Display), including part numbers and codes.
Lists capacitors used in the POWER Unit (Display), including part numbers and codes.
Lists resistors used in the POWER Unit (Display), including part numbers and codes.
Lists miscellaneous parts like fuses and plugs for the POWER Unit (Display).
Diagrams showing cabinet and mechanical parts for the AVC System unit.
Lists cabinet and mechanical parts for the Display unit, including screws, cables, and connectors.
Diagrams showing the overall assembly of the Display unit's cabinet and mechanical parts.
Detailed list of cabinet and mechanical parts for the Display unit, including part numbers and codes.
Lists packing materials and cases used for the product, not for replacement.
Lists service jigs required for maintenance and servicing of the unit.
