LC-30HV4E
87

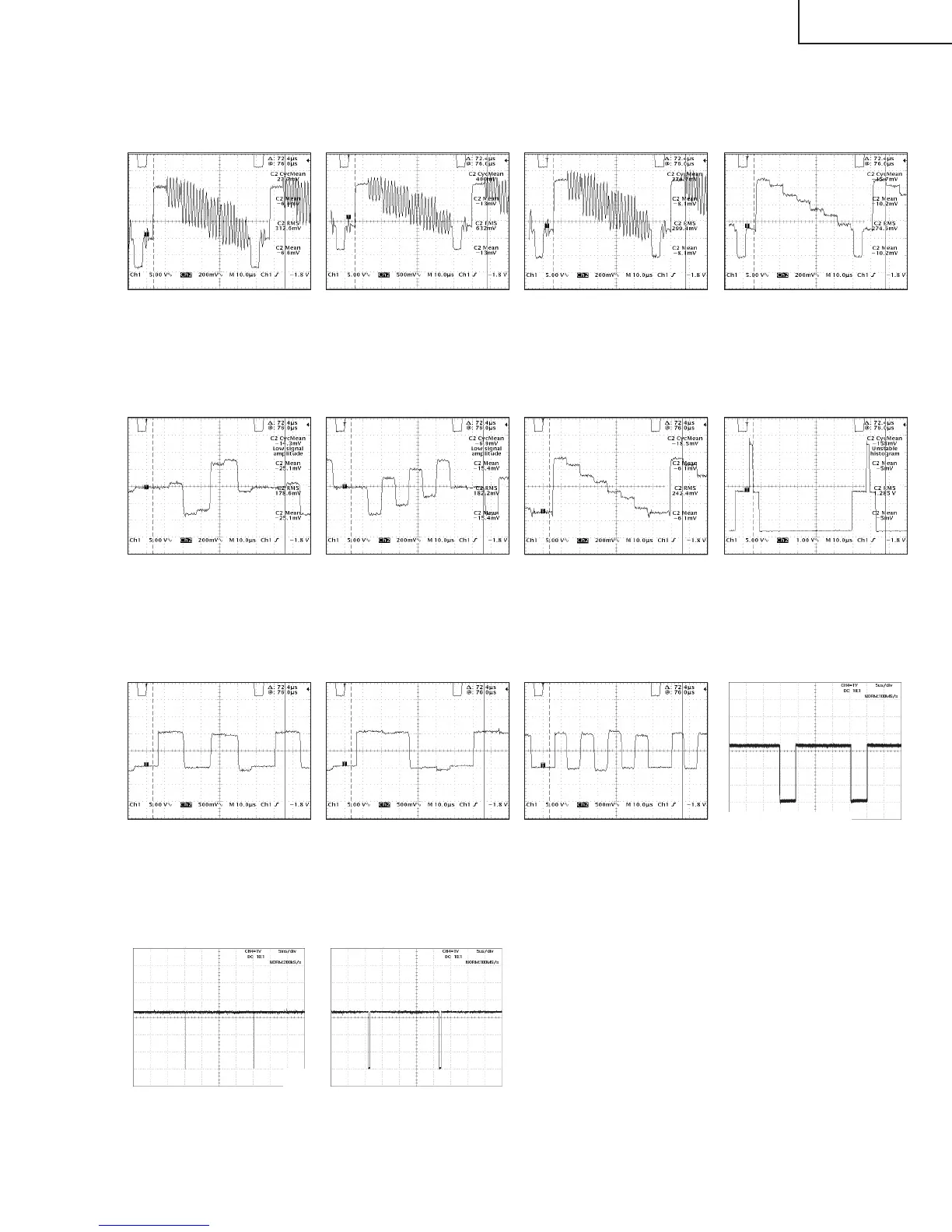

WAVEFORMS
1
TP1101 (Tuner Out)
V: 200mV/div H: 10µsec/div
2
IC1301 (56) pin (Y-Out)
V: 500mV/div H: 10µsec/div
3
IC401 (7) pin
(Main Comb Filter)
V: 200mV/div H: 10µsec/div
4
IC801 (1) pin (TP812)
V: 200mV/div H: 10µsec/div
5
P801 (5) pin (MCR)
V: 200mV/div H: 10µsec/div
6
P801 (3) pin (MCB)
V: 200mV/div H: 20µsec/div
7
P801 (1) pin (MY)
V: 200mV/div H: 20µsec/div
8
IC803 (31) pin
V: 1V/div H: 20µsec/div
9
TP816
V: 500mV/div H: 10µsec/div
0
TP815
V: 500mV/div H: 20µsec/div
q
TP814
V: 500mV/div H: 10µsec/div
w
IC2201 (95) pin
V: 1V/div H: 5µsec/div
er
IC2201 (96) pin
V: 1V/div H: 5msec/div
IC2201 (97) pin
V: 1V/div H: 5µsec/div
