LC-32AX3H/M/X
LC-37AX3H/M/X
10

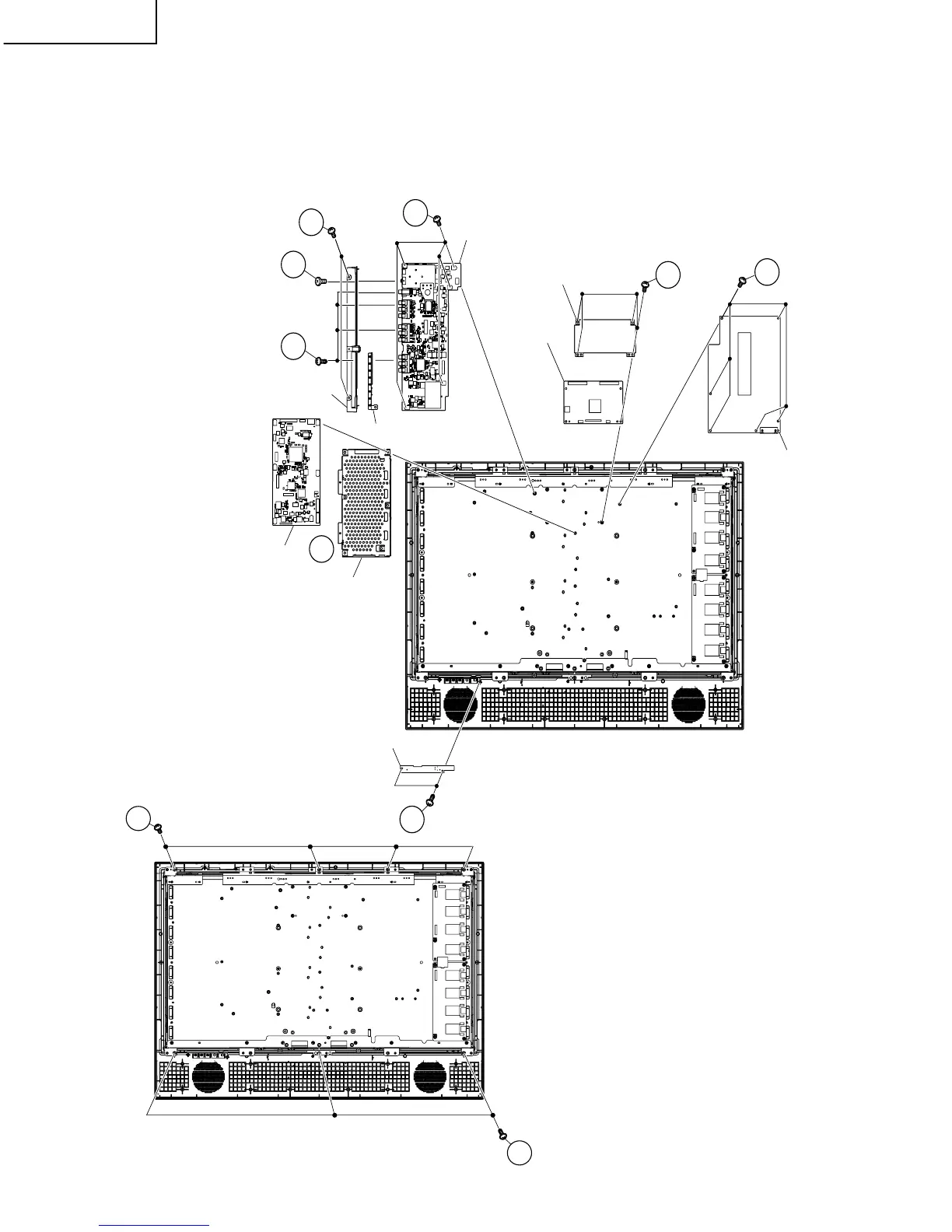

12. Detach the main unit and the main unit shield (bottom.).
13. Remove the LCD control unit shield fixing screws (4 pcs.).
14. Remove the power unit fixing screws (6 pcs.).
15. Remove the AV unit fixing screws (7 pcs.).
16. Remove the chassis frame fixing screws (5 pcs.).
17. Remove the R/C,LED unit fixing screws (2 pcs.).
18. Remove the LCD panel module fixing screws (7 pcs.).
LCD Control Unit Shield
LCD Control
Unit
Power Unit
R/C, LED Unit
Main Unit
Tuner Shield
Chassis Frame
Main Unit Shield (Bottom)
AV Unit
15
15
16
16
13
14
17
12
18
18
