Sharp LC-32AX3H - Page 9

LC-32AX3H/M/X
LC-37AX3H/M/X
9

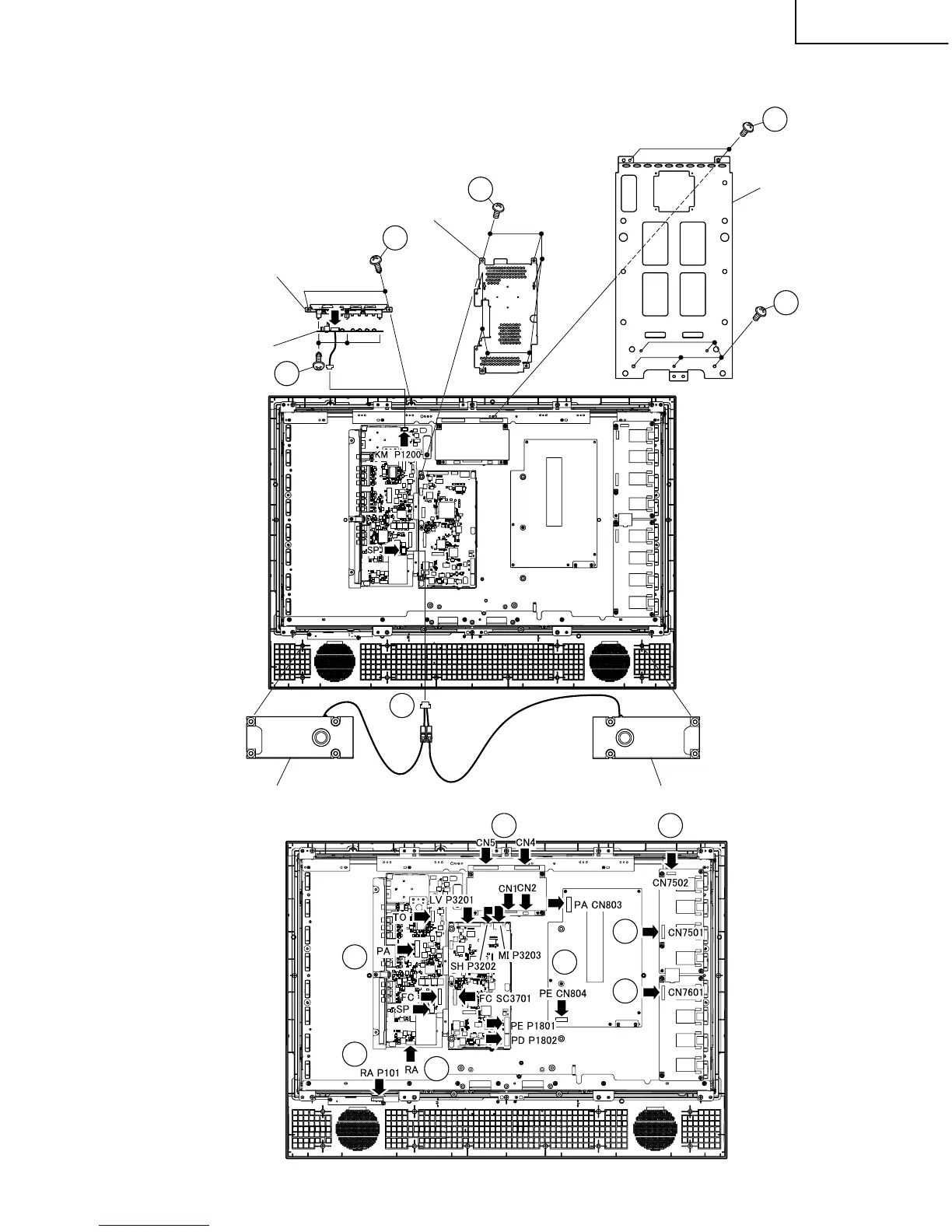

6. Remove the center angle fixing screws (7 pcs.).
7. Remove the top cover ass’y fixing screws (2 pcs.).
8. Remove the key unit fixing screws (3 pcs.).
9. Detach the right and left speaker boxes.
10. Remove the main unit shield (top) fixing screws (7 pcs.).
11. Detach the connector from each PWB.
Top Cover Ass'y
Main Unit Shield (Top)
Center Angle
Key Unit
Speaker Box-R Speaker Box-L
KM P151
10
7
6
6
8
9
1111
11
11
11
11
11
11
