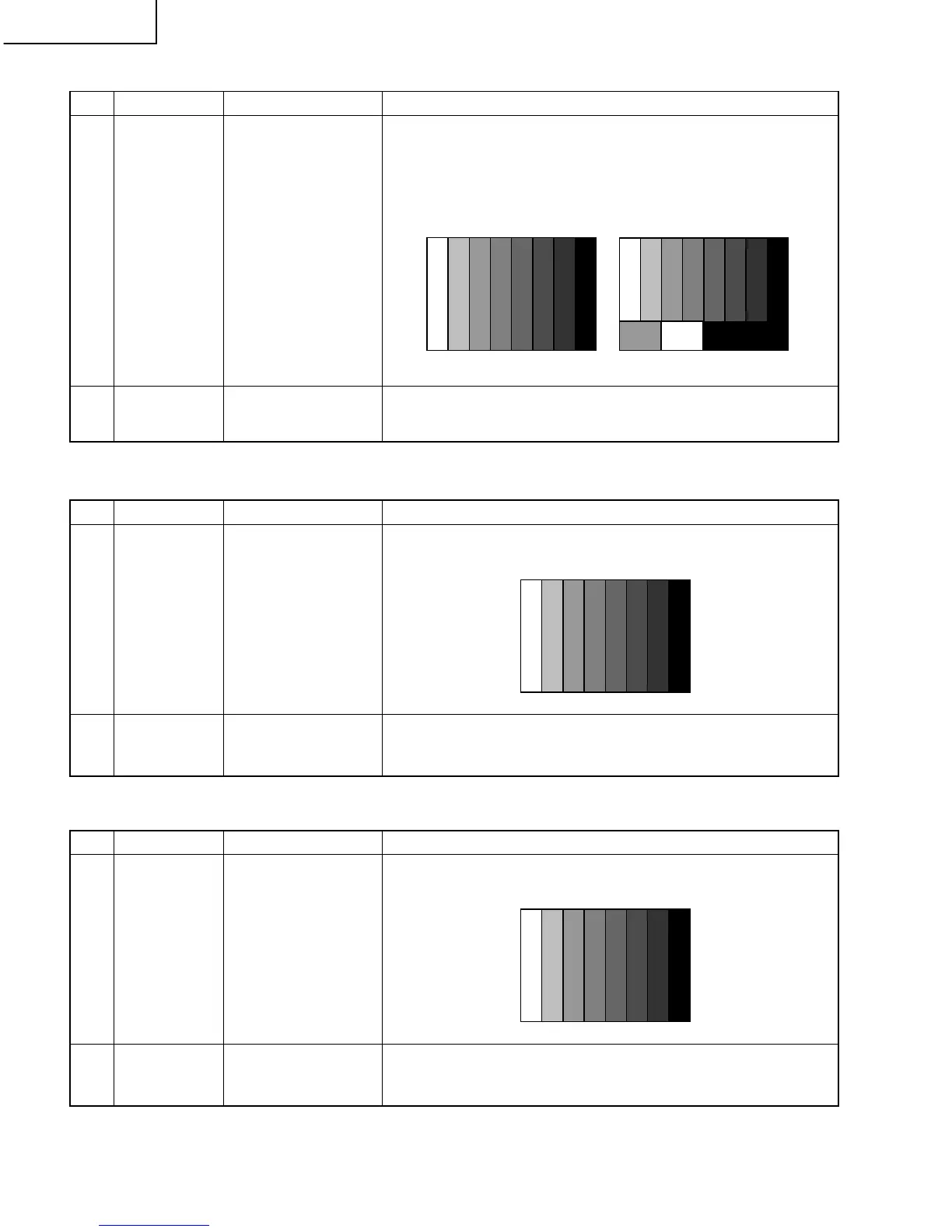

(4) PAL signal & tuner adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
PAL Full Field Colour
Bar RF signal
PAL Split Colour Bar
E-12ch, RF signal
[Terminal]
VIDEO (INPUT 1)
TUNER RF
2 Auto adjustment Page 3/15
performance
» Feed the PAL Full-Field Colour Bar signal (75% colour saturation) to
VIDEO (INPUT 1 ).
» Feed the RF signal (E-12ch) to TUNER.
» Make sure the PAL Colour Bar (E-12ch) has the sync level of 7:3 with
the picture level.
Bring the cursor on [ËPAL + TUNER ADJ] and press [ENTER].
[ËPAL + TUNER ADJ OK] appears when finished.
[E-12CH]
↑100% white
↑100% white
[VIDEO IN SIGNAL]
(5) SECAM signal adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 Adjustment [Signal]
SECAM Full-Field
Colour bar signal
[Terminal]
VIDEO (INPUT 1)
2 Auto adjustment Page 3/15
performance
» Feed the SECAM Full-Field Colour Bar signal (75% colour saturation) to
VIDEO (INPUT 1).
Bring the cursor on [ËSECAM ADJ] and press [ENTER].
[ËSECAM ADJ OK] appears when finished.
100% white
↑
(6) N358 signal adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 Adjustment [Signal]
N358 Full-Field Colour
Bar
[Terminal]
VIDEO (INPUT 1)
2 Auto adjustment Page 3/15
performance
» Feed the N358 Full-Field Colour Bar signal (75% colour saturation) to
VIDEO (INPUT 1).
Bring the cursor on [ËN358 ADJ] and press [ENTER].
[ËN358 ADJ OK] appears when finished.
100% white
↑
