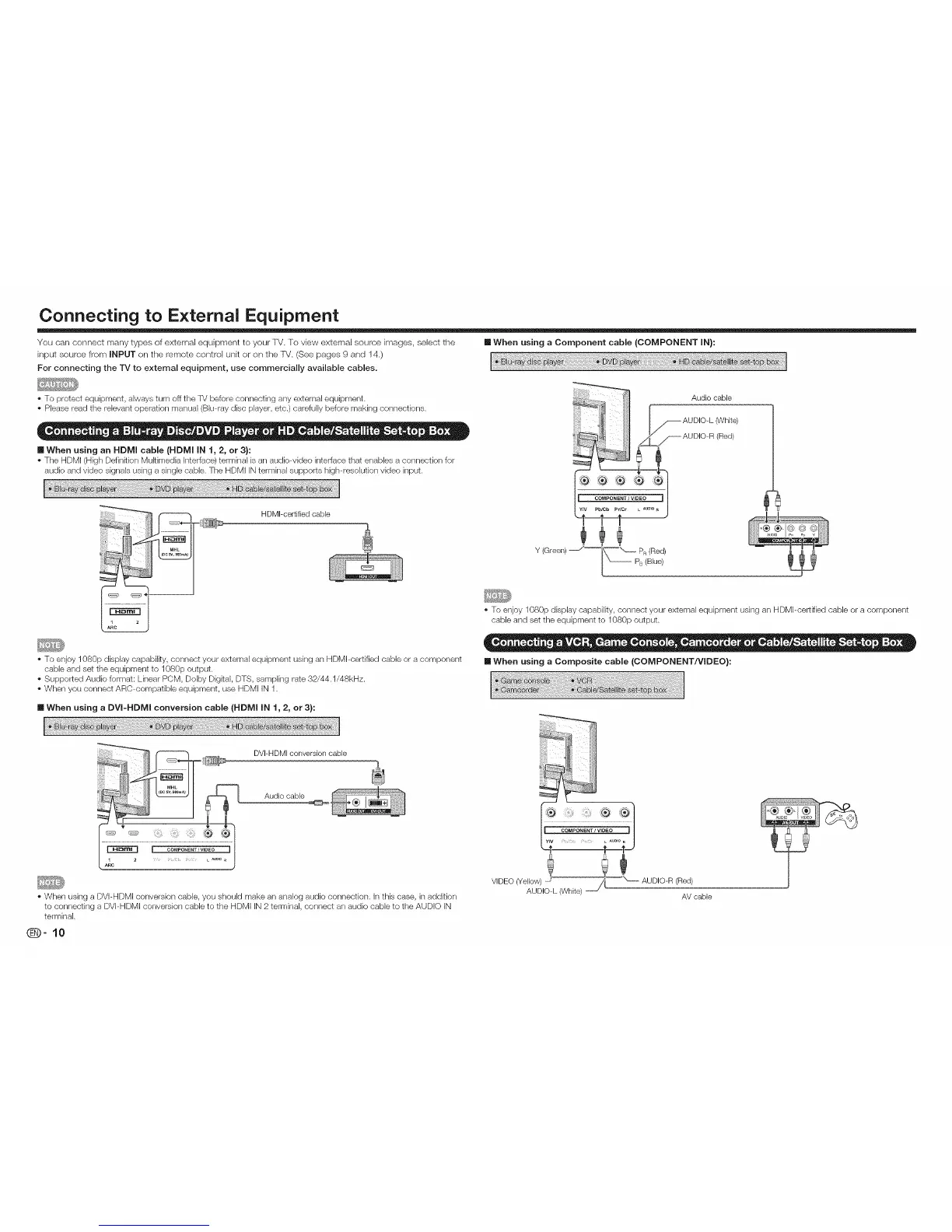

Connecting to External Equipment
You can connect many types of exlemal equipment to your lV, To view external source images, select the
input source from INPUT on the remote control unit or on the lV, (See pages 9 and 14,)
For connecting the "IV to external equipment, use commercially available cables.
[] When using a Component cable (COMPONENT IN):
• To protect equipment, always turn off the TV before connecting any external equipment.
• Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.
[] When using an HDMI cable (HDMI IN 1, 2, or 3}:
• The HDMI (High Definition MuRimedia Interface) terminal is an audio-video interface that enables a connection for
audio and video signals using a single cable. The HDMI IN terminal supports high-resolution video input.
Audio cable
_ AUDIO-L (White)
__S AUDIO-R (Red)
HDMI-certified cable
Y (Green) _"_
• To enjoy 1080p display capabilRy, connect your external equipment using an HDMI-certified cable or a component
cable and set the equipment to 1080p output.
• Supported Audio format: Linear PCM, Dolby DigRal, DTS, sampling rate 32/44.1/48kHz.
• When you connect ARC-compatible equipment, use HDMI IN 1.
[] When using a DVm-HDMI conversion cable (HDMI mN1, 2, or 3):
• To enjoy 1080p display capabilRy, connect your external equipment using an HDMI-certified cable or a component
cable and set the equipment to 1080p output.
[] When using a Composite cable (COMPONENT/VIDEO):
DVI-HDMI conversion cable
Audio cable
@-
• When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addRion
to connecting a DVI-HDMI conversion cable to the HDMI IN 2 terminal, connect an audio cable to the AUDIO IN
terminal.
VIDEO (Yel'l°'\_!l_uu "-oooooAUDIO-R (Red)
AV cable
To Next Page
