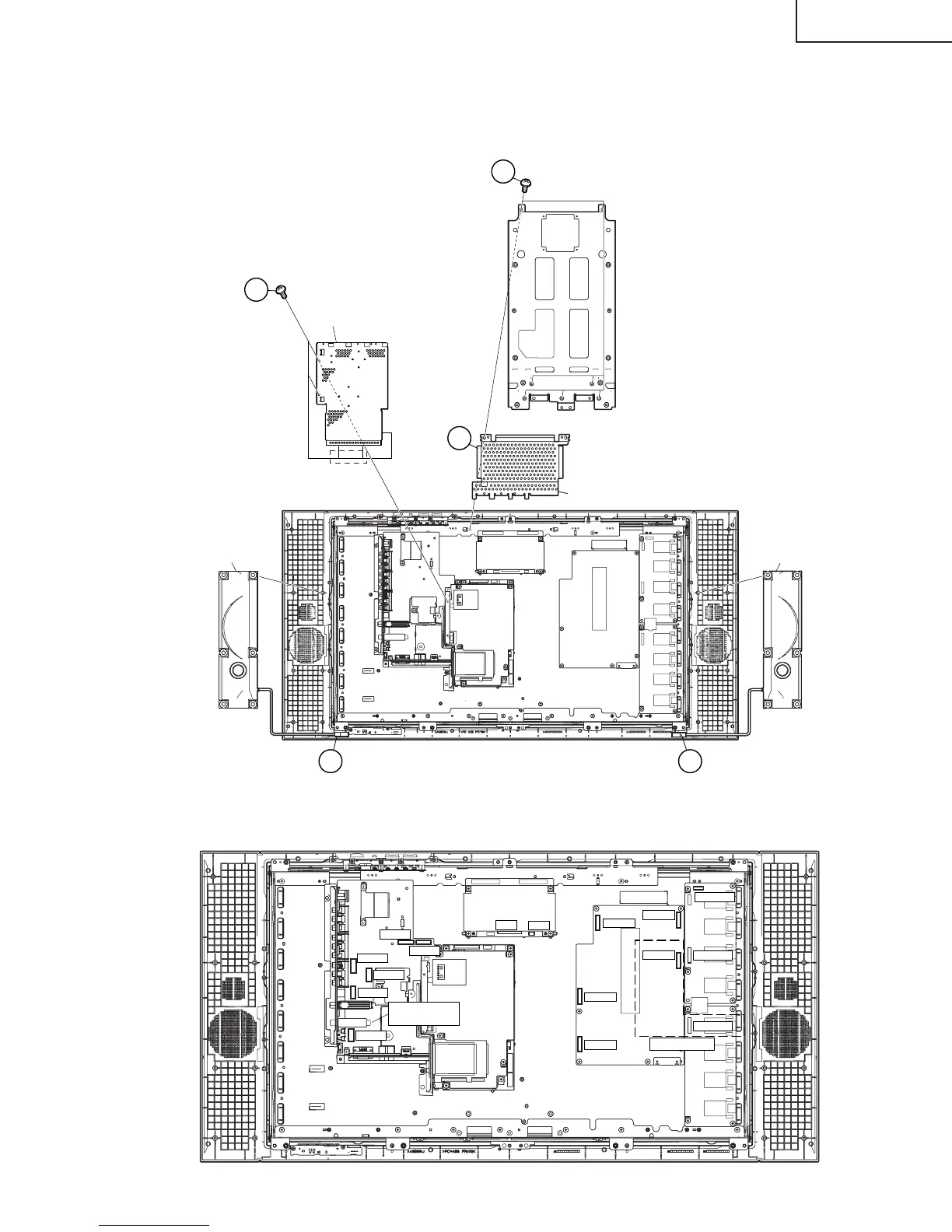

5. Remove the 7 lock screws 7 and detach the Center Angle.
6. Detach the LCD Control Shield 8.
7. Remove the 5 lock screws 9 and detach the Main Shield A.
8. Disconnect the connectors 0 and q, and detach the SP Box (R) and SP Box (L).
9. Remove the connectors,(P5703,P3103,P1105,P2501,P3005,P3101,CN1,CN2,CN801,CN802,CN803,
CN804,CN805,CN7502,CN7501,and CN7601) Remove the 2 Coaxial Cables,(RED and BLACK).
