Sharp LC-37X20E Service Manual

LC-32X20E/S/RU, LC-37X20E/S/RU
2 – 6

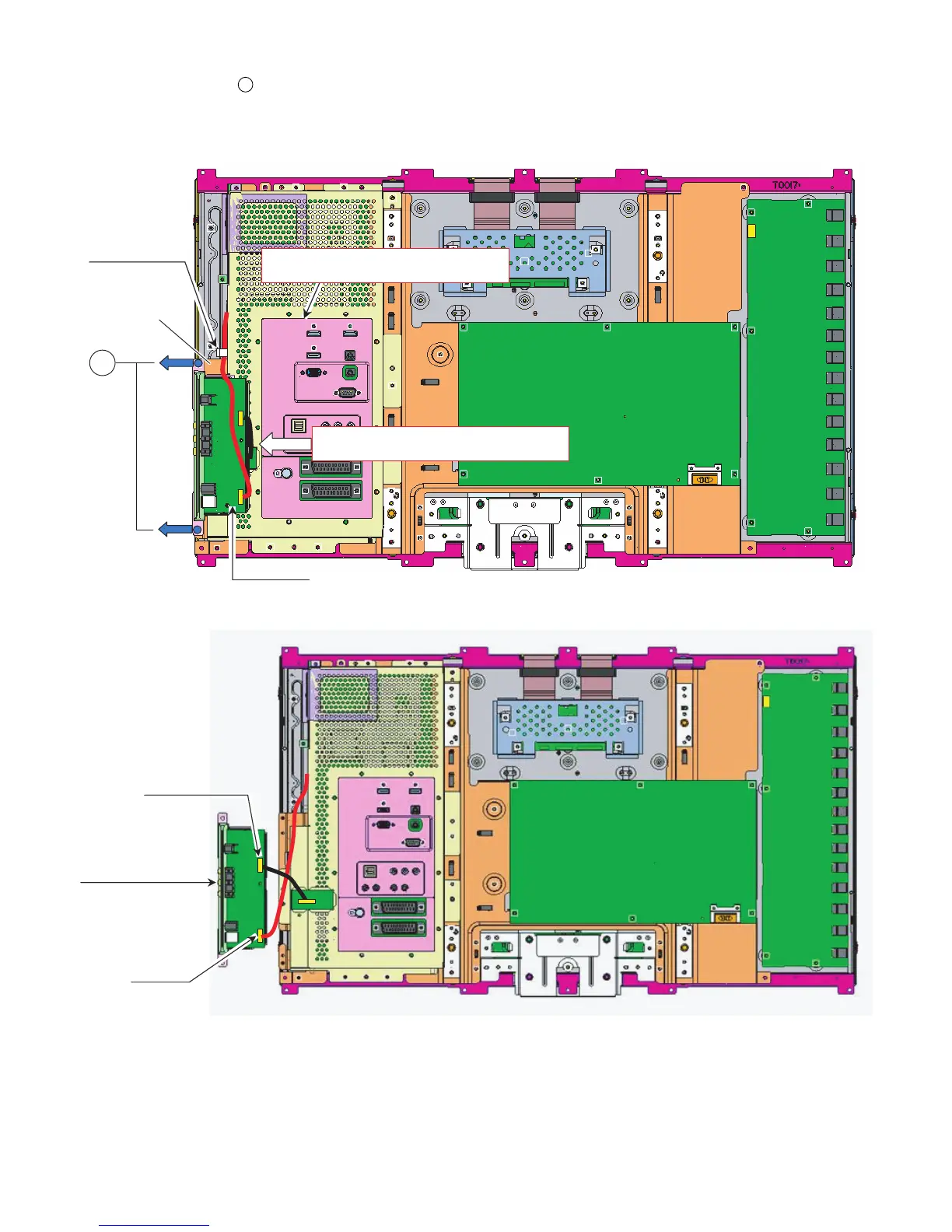

8. Remove the 2 lock screws and detach the MINI AV Unit.
Detach the Conductive Tape.
Remove all the connectors from PWBs.
10
#Caution
Don't protrude Wire "US" ,"VD" to this area
#For Prevention sandwitch Wire with CAB-B,
Push Wire "VD" under MINI-AV
Wire "US" to WH
Conductive Tape
10
MINI AV UNIT
MINI AV UNIT
with GASKET
Wire "US"
Wire "VD"
