Sharp LC-42D83X - Connecting a PC; Analogue Connection; HDMI Connection

56

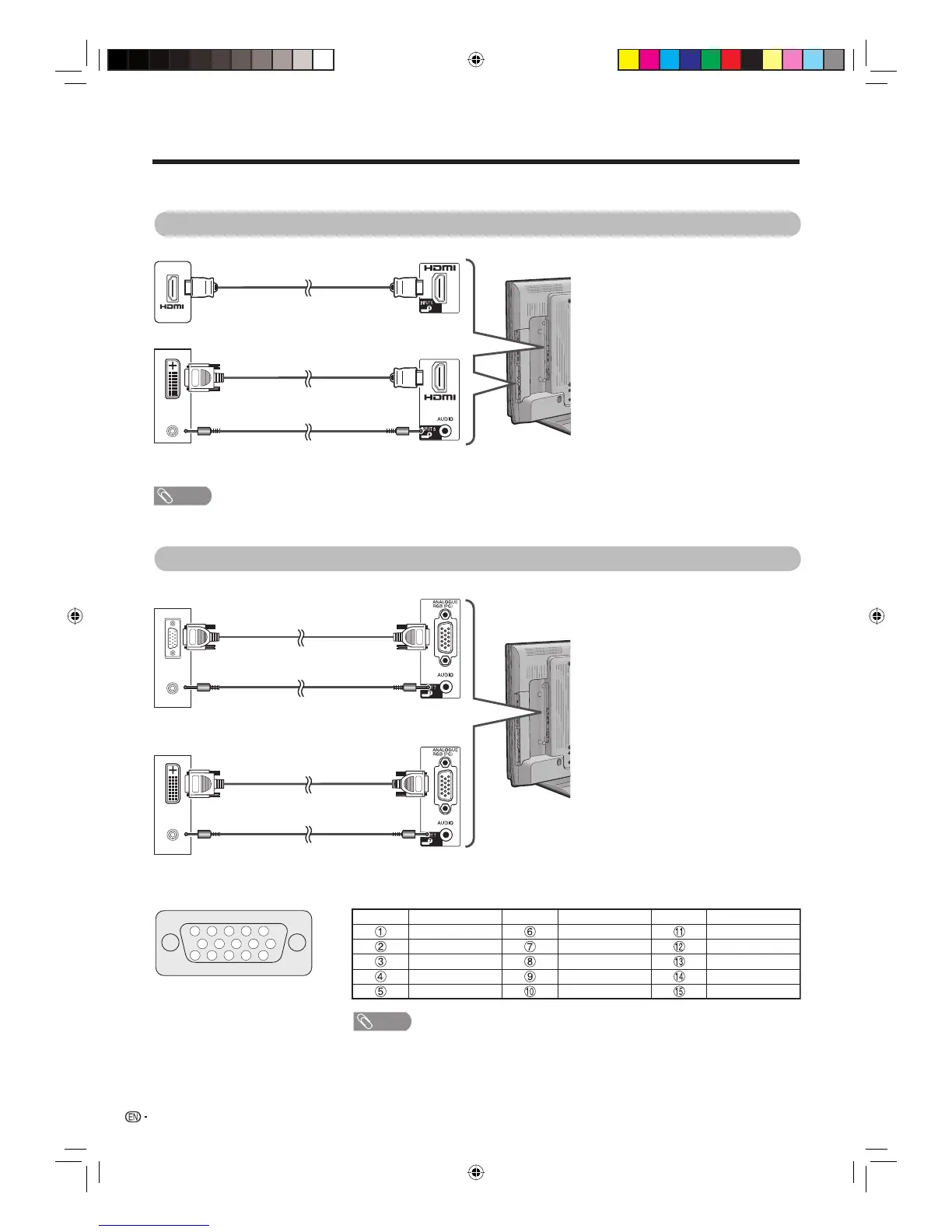

Connecting a PC
HDMI Connection
Use the PC terminals to connect a PC.
Signal names for 15-pin mini D-sub connector
NOTE
• Macintosh adaptor may be required for use for some Macintosh computers.
• Pin No. 5 is not used for inputting the signal.
15
14
13
12
9
11
10
8
7
6
5
4 3
2
1
Pin No. Signal name Pin No. Signal name Pin No. Signal name
R GND (Ground) Not connected
G GND (Ground) SDA
B GND (Ground) HD
Not connected +5V VD
CSYNC GND (Ground) SCL
Analogue Connection
PC
PC
PC
PC
HDMI cable
(Commercially available)
DVI/HDMI conversion cable
(Commercially available)
Ø 3.5 mm stereo minijack cable
(Commercially available)
INPUT 4 or 5
INPUT 6
INPUT 7
INPUT 7
Ø 3.5 mm stereo minijack cable
(Commercially available)
Ø 3.5 mm stereo minijack cable
(Commercially available)
RGB/DVI conversion cable
(Commercially available)
RGB cable
(Commercially available)
NOTE
• The PC INPUT terminals are DDC1/2B-compatible.
• Refer to page 61 for a list of PC signals compatible with the TV.
