6
Preparation
• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
• Before performing work, spread cushioning over the base area to lay the TV on. This will prevent it from being
damaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

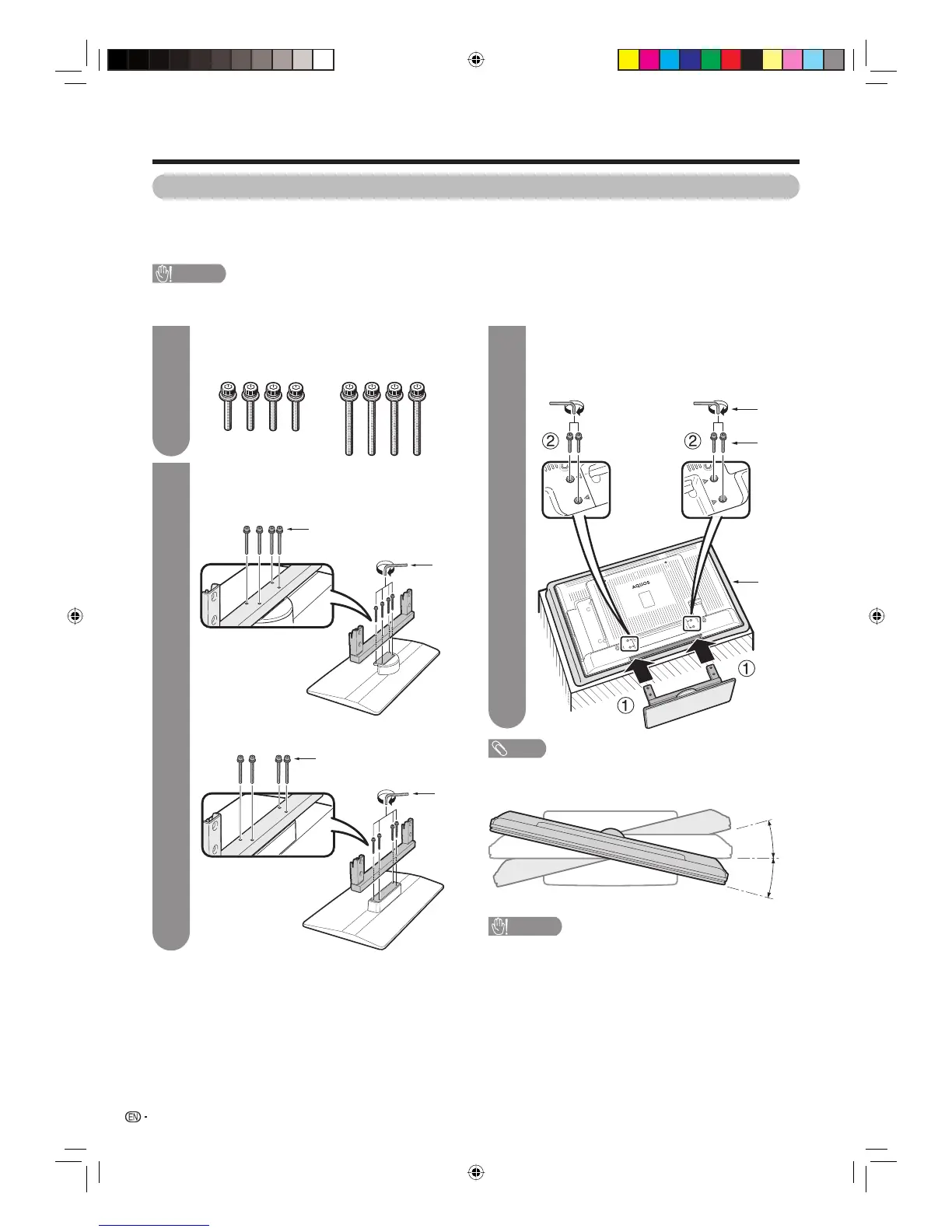

Attaching the stand
1 3
1
Insert the stand into the openings on the
bottom of the TV.
2
Insert and tighten the 4 short screws into
the 4 holes on the rear of the TV.
Hex key
Short
screw
Soft
cushion
NOTE
• To detach the stand, perform the steps in reverse order.
2
Hex
key
Long screw
Attach the supporting post for the stand unit
onto the base as shown below.
Confi rm the 8 screws supplied with the TV.
Short screws (g4)
(used in step 3)
Long screws (
g
4)
(used in step 2)
LC-42D83X
LC-46D83X/LC-52D83X
Hex
key
Long screw
LC-42D83X
CAUTION
• Adjust the screen with both hands. Put one hand on
the TV and rotate the screen while steadying the stand
with your other hand.
The TV can be rotated up to 15 degrees to the right or left.
15°
15°
52D83X_en_b.indd 652D83X_en_b.indd 6 2007/08/31 16:24:472007/08/31 16:24:47
To Next Page
