7. Remove the 5 lock screws w and detach the Wire Shield.
8. Remove the 11 lock screws e. Disconnect [FA] connector. Detach the Center Angle.
9. Remove the KEY PWB.
9-1.Disconnect the [KM] connector.
9-2.Remove the 2 lock screws r from the Top Control Cover.
9-3.Remove the 3 lock screws t from the KEY PWB.

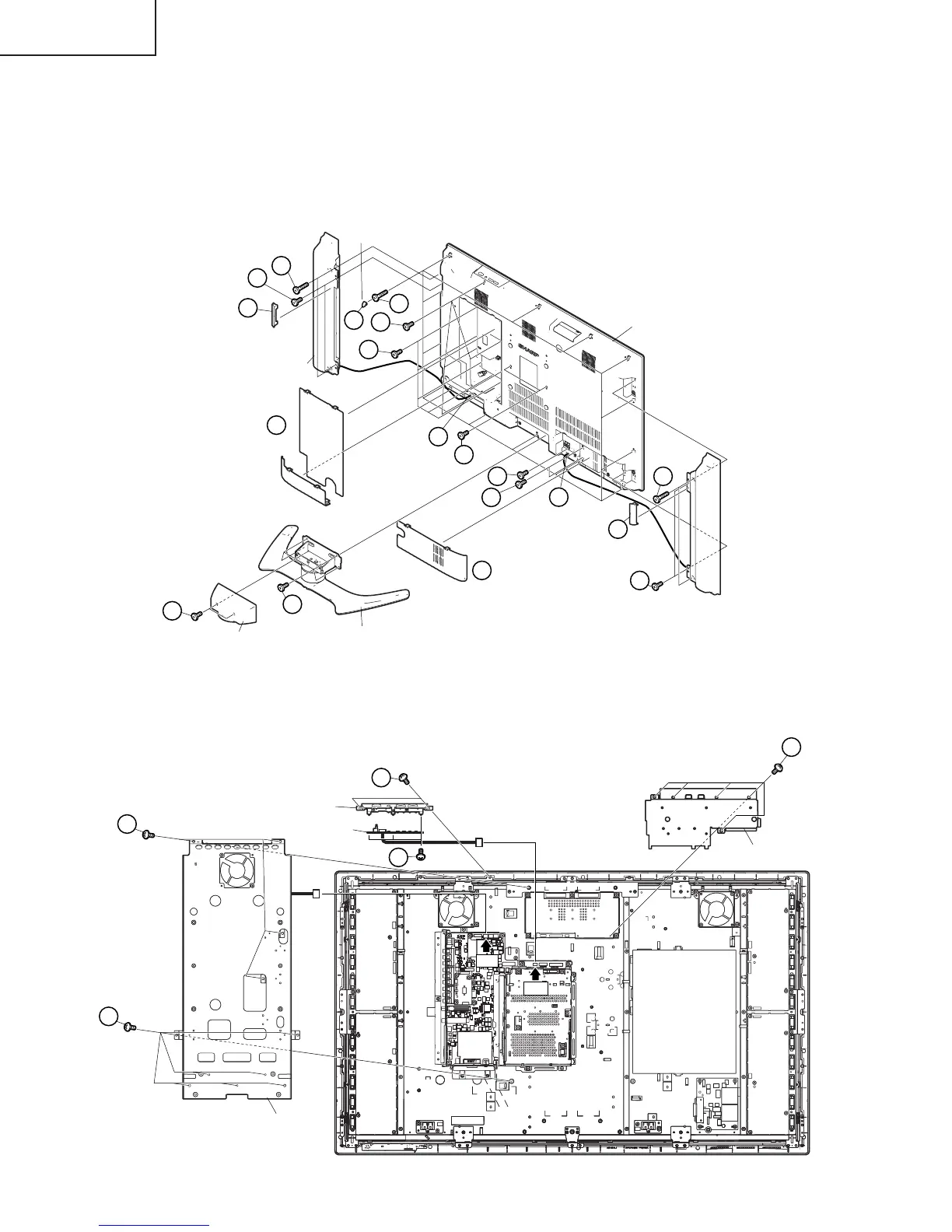

REMOVING OF MAJOR PARTS (LC-45GD5U)
1. Remove the Terminal Coves 1.
2. Detach the Bracket Covers 2.
3. Remove the 4 lock screws 3, the 4 lock screws 4, the 2 SP cords 5 and detach the Speakers.
4. Remove the 2 lock screws 6 and detach the Stand Cover.
5. Remove the 4 lock screws 7 and detach the Stand.
6. Remove the 4 Hole Covers 8, 13 lock screws 9, 6 lock screws 0, 9 lock screws q and detach the Rear
Cabinet.
2
3
4
1
5
5
Speaker (L)
Speaker (R)
Terminal Cover
Stand
Stand Cover
Terminal Cover
3
2
4
7
1
6
9
10
11
10
11
11
8
SP read (L)
SP read (R)
Rear Cabinet
Hole Cover
12
Wire Shield
13
Center Angle
KEY PWB
Top Control Cover
14
15
13
[KM]
[FA]
