LC-46DH65E/S, LC-46DH66E
2 – 4

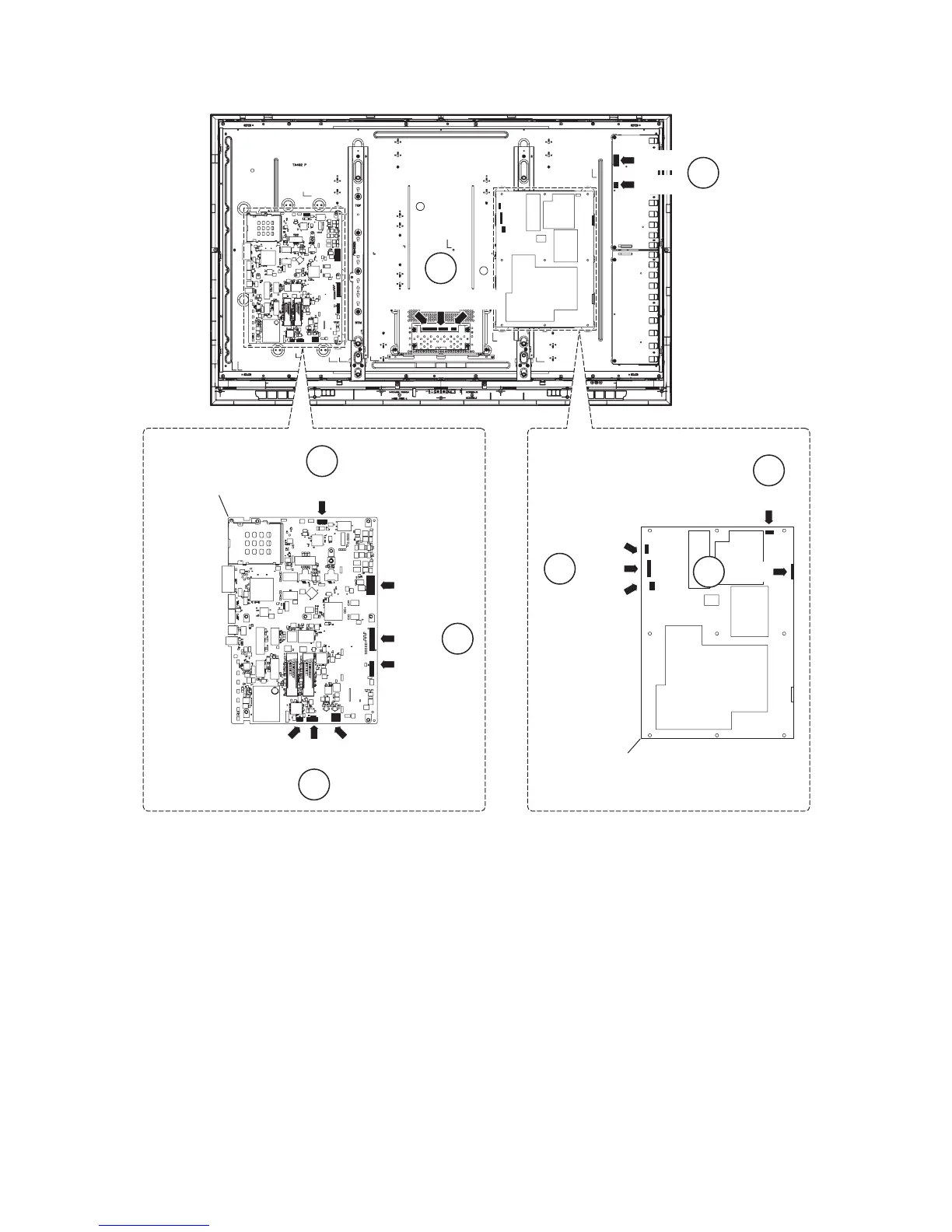

4. Removing of Connectors
1. Disconnect all the connectors from all the PWBs.
1
[LW] [PL][LP]
1
[LB2]
[LA]
1
1
1
1
MAIN Unit
POWER Unit
[RA] [SP][KM]
[PD]
[LW]
[LP]
[PD]
1 [LA]
[PL]
[LB1]
[LB2]
1
[LB1]
