Sharp LC-60EQ10U Service Manual

LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
4 – 1
LC-60EQ10U
Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-60EQ10U/SQ10U,15U,17U)

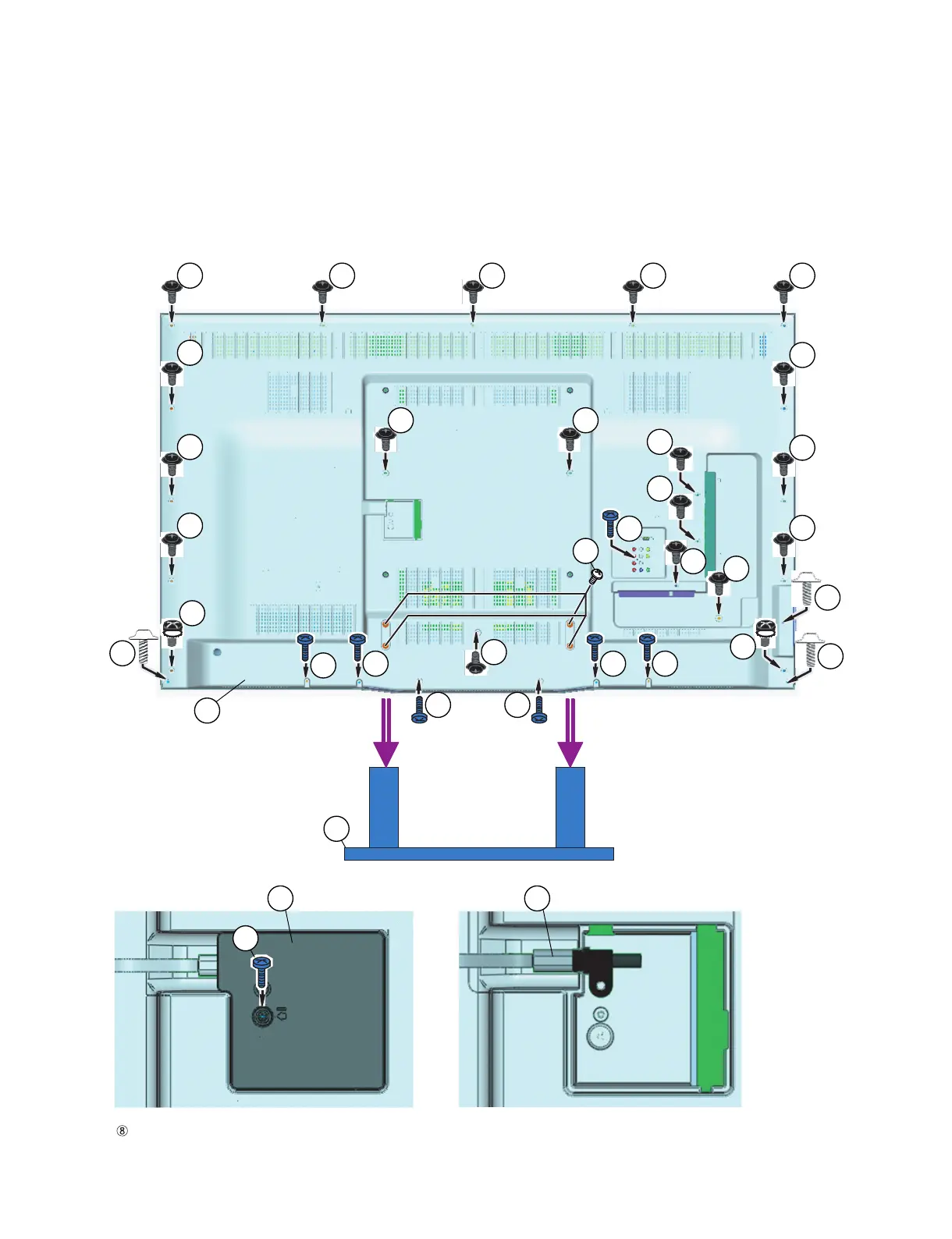

1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 4 lock screws (1) and detach the Stand Unit (2).
2. Remove the 1 lock screw (3) and detach the AC Cord Cover (4).
3. Disconnect AC Wire and detach the AC Cord (5).
4. Remove the 3 lock screws (6), 7 lock screws (7), 2 lock screws (8), 18 lock screws (9) and detach the Rear Cabinet Ass'y (10).
NOTE: only these places use different screws (plactic screws).
These are for heat measures.Please be careful.
䎔
䎶䏗䏄䏑䏇䎃䎸䏑䏌䏗
䎕
䎖
䎗
䎤䎦䎃䎦䏒䏕䏇䎃䎦䏒䏙䏈䏕
䎘
䎤䎦䎃䎦䏒䏕䏇
䎚
䎚 䎚 䎚
䎚 䎚
䎙
䎙
䎙
䎛
䎛
䎚
䎜
䎜
䎜
䎜
䎜
䎜
䎜
䎜䎜䎜䎜䎜
䎜
䎜
䎜
䎜 䎜
䎜
䎵䏈䏄䏕䎃䎦䏄䏅䏌䏑䏈䏗䎃䎤䏖䏖䎊䏜
䎔䎓

Sharp LC-60EQ10U Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	60 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	Edge-Lit LED
Contrast ratio (dynamic)	8000000:1
3D	No
Audio input	4
Teletext function	-
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	110 - 240 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Package depth	249 mm
Package width	1522 mm
Package height	946 mm
Package weight	36500 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	372 mm
Height (with stand)	861 mm
Weight (with stand)	28000 g
Depth (without stand)	77 mm
Width (without stand)	1379 mm
Height (without stand)	445 mm
Weight (without stand)	25000 g
