[8] Precautions for assembly (LC-60/70TQ15U)
1. Points to be checked and precautions when servicing the unit
Mount the main PWB Ass’y on the backlight chassis and check that the EMI-prevention parts are not peeled and twisted from the access holes. (The
EMI-prevention parts, conductive nonwoven fabric gaskets, must be seen from the access holes.)
[Countermeasure]

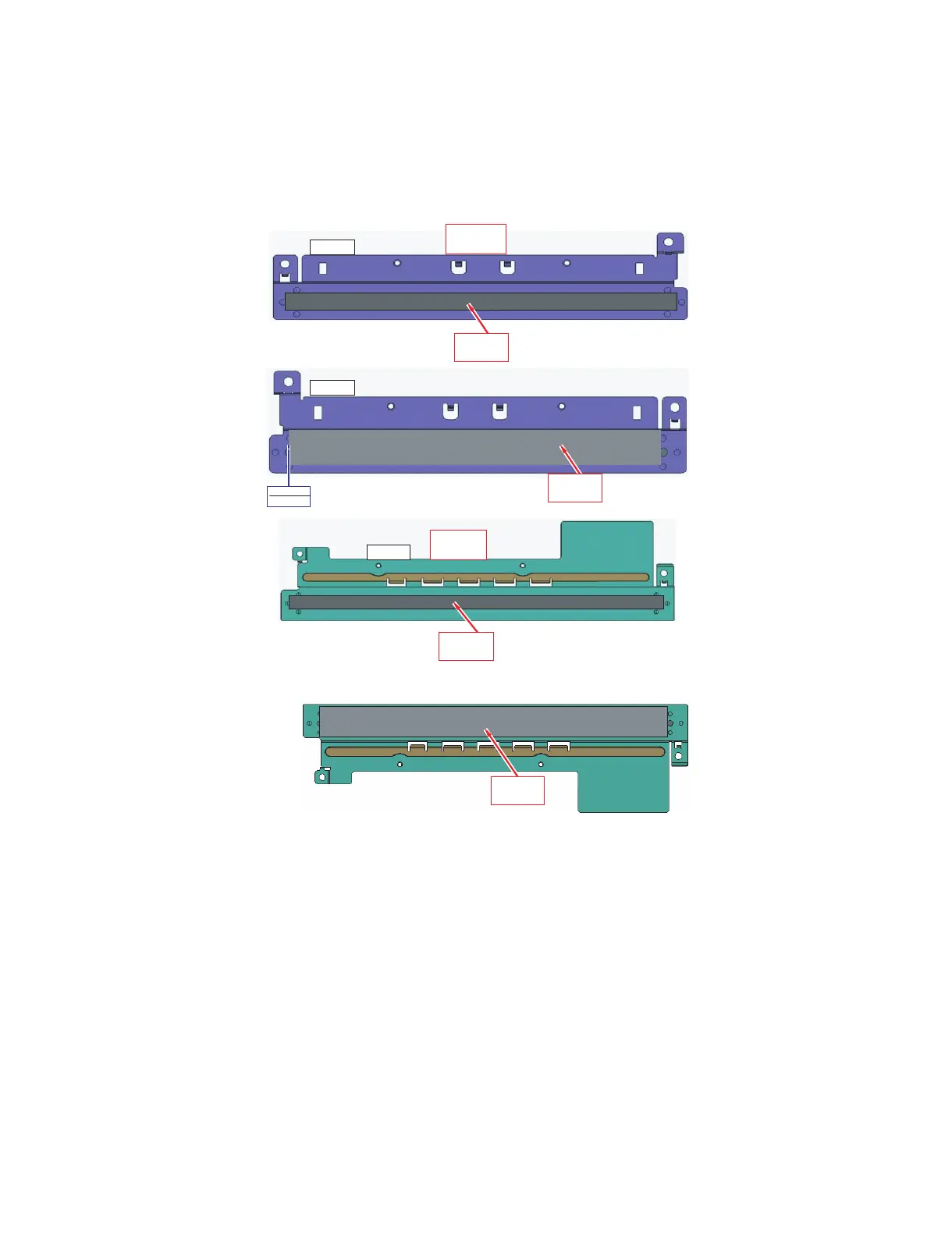

Attach the conductive nonwoven fabric gaskets on the shielded case on the main PWB.
• LC-60TQ15U
Back side
Front side
(1) Pre pare ***
LAN GKD146W JFW
TER M ANG BOTTOM
(2) Stick***
PSPAZC 691WJZZ
CONDUCTR:8x 180
(3) Stick***
HDECP A 091WJZZ
DEC SHEET BTM
Stick standard
Center of Hole
Back side
(1) Prepare***
LAN GKD145W JFW
TER M ANG SIDE
(2) Stick ***
PSPA Z C690WJZZ
CONDUCTR:8x 255
(3) Stick *****
HDECPA090WJZZ
DEC SHEET SIDE
