Sharp LC-60EQ10U Service Manual

LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
4 – 17

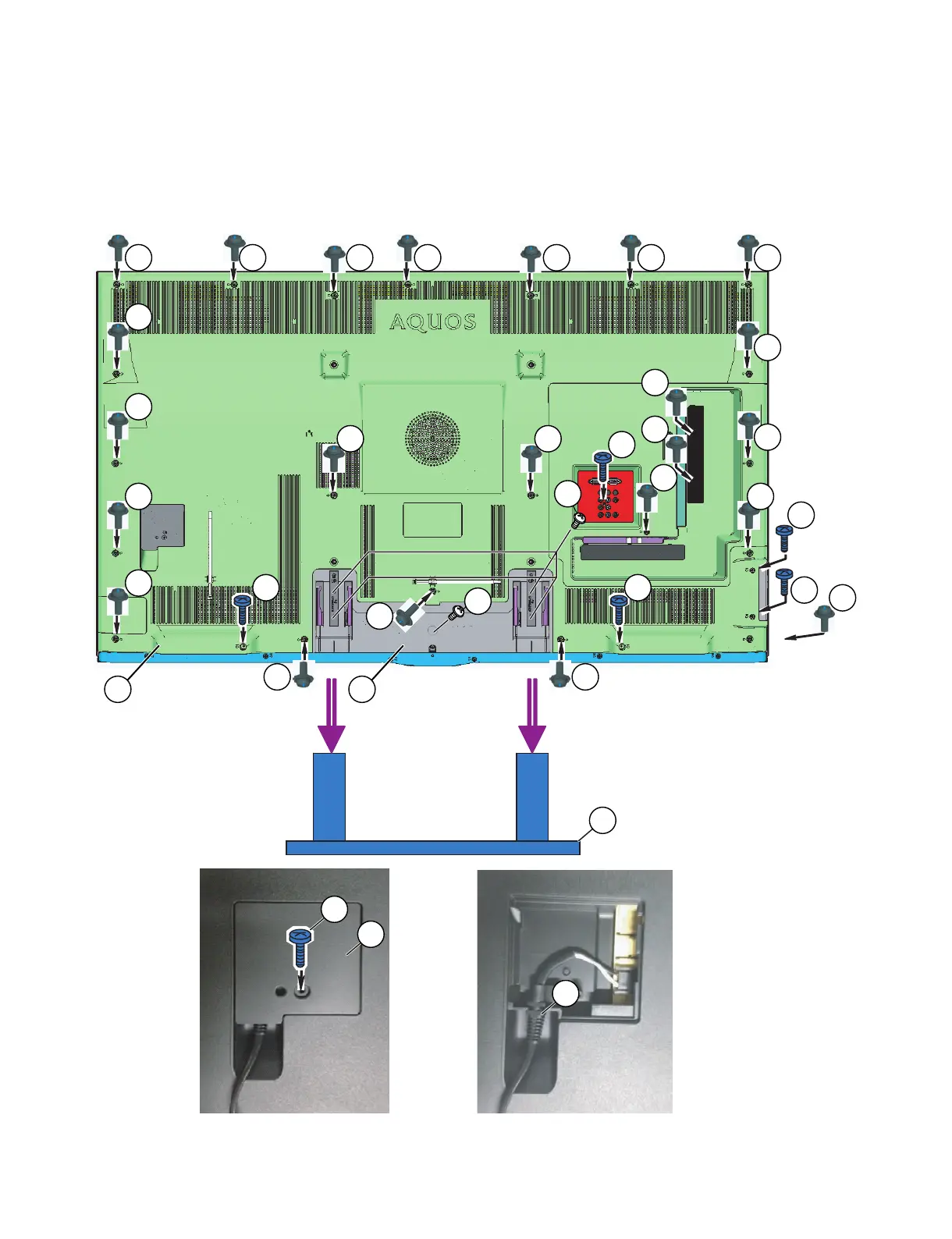

[5] REMOVING OF MAJOR PARTS (LC-60TQ15U)
1. Removing of Stand Unit and Rear Cabinet Ass'y.
1. Remove the 1 lock screw (1) and detach the Stand Support Ass'y (2).
2. Remove the 4 lock screws (3) and detach the Stand Unit (4).
3. Remove the 1 lock screw (5) and detach the AC Cord Cover (6).
4. Disconnect AC Wire and detach the AC Cord (7).
5. Remove the 5 lock screws (8), 23 lock screws (9) and detach the Rear Cabinet Ass'y (10).
