Sharp LC-60EQ10U - Page 37

LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
4 – 16

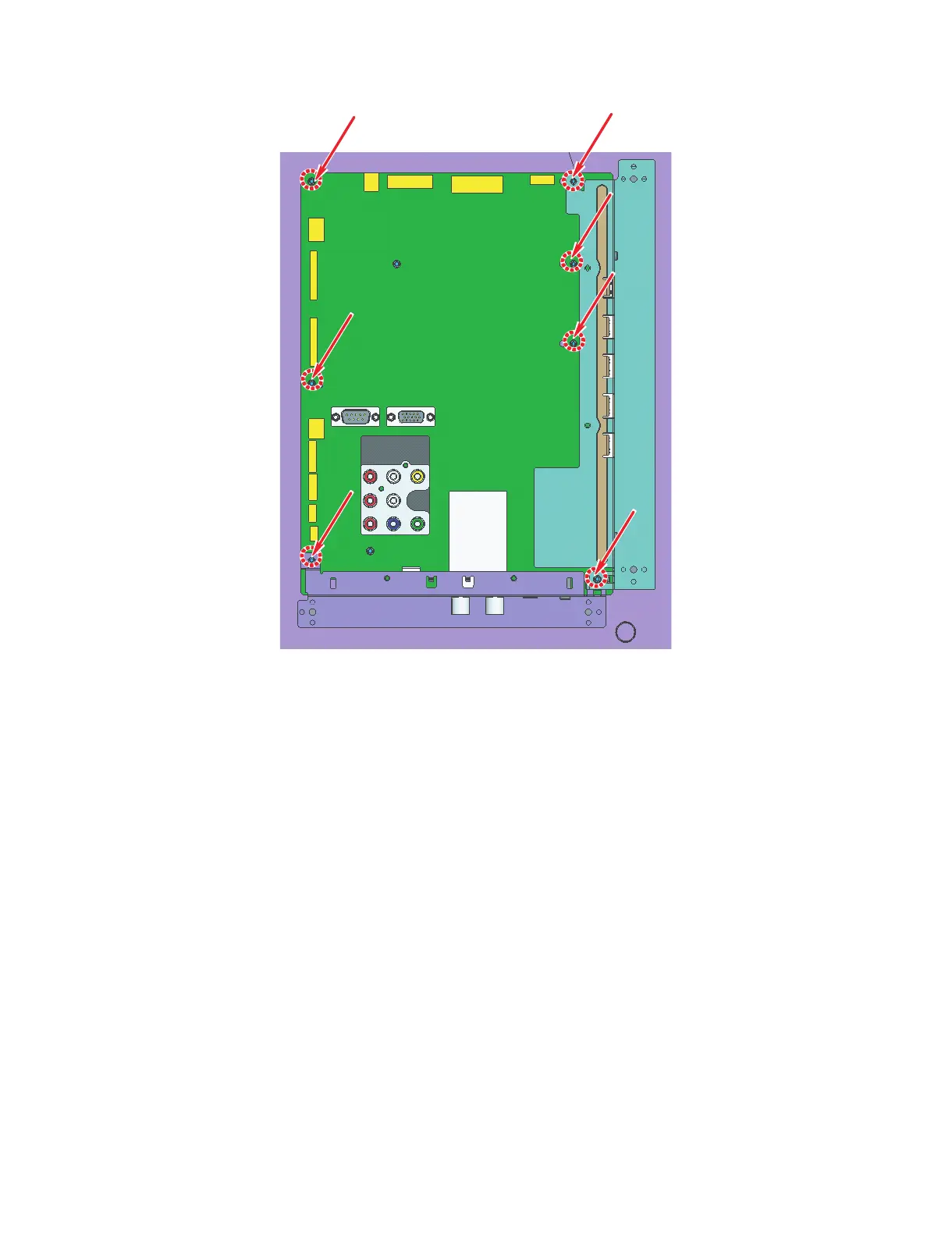

The following is a drawing mounting the main PWB Ass’y on the backlight chassis. (The parts indicated by -> are the access holes for confirmation.)
(Main PWB Ass’y => State where the shielded case and RF terminal angle are mounted on the main PWB)
