Sharp LC-60EQ10U Service Manual

LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
4 – 15

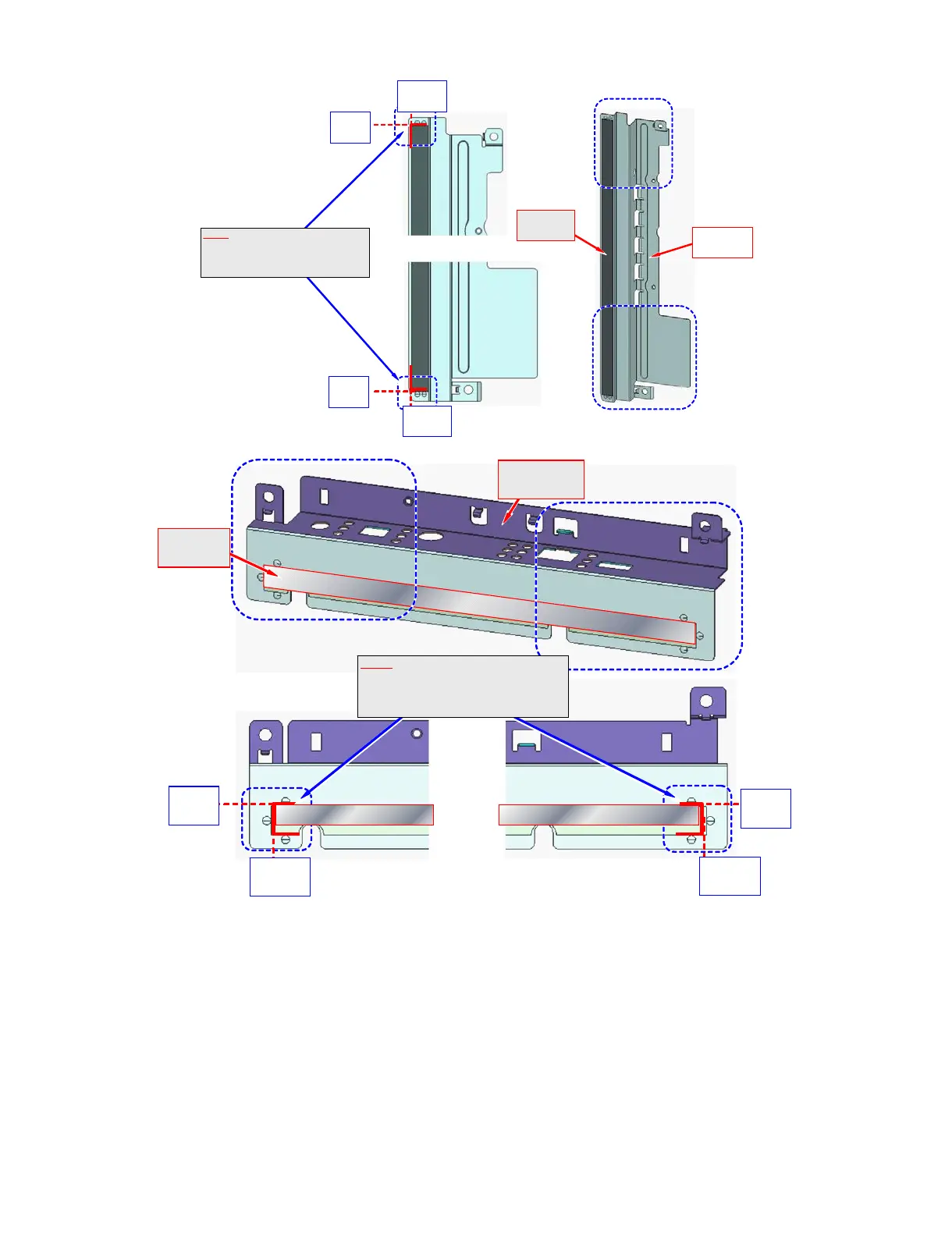

• LC-70EQ10U/SQ10U,15U,17U
(2) Stick *****
PSPA ZC690WJZ Z
(COND:8X255 )
(1) Pre pare*****
LAN GKD825WJ3W
(TERMANG SIDE )
Caution
Base line :
P unc h m a rk
of TER MINAL ANG
Stick it on the inside of the protruding portion.
Do not stick it on protruding portion.
Stic k it so that CONDUCTR does not bec ome the w rinkle.
Base line
(Punch mark
of BL chassis)
Base line
(Punch mark
of ANG)
Base line
(Punch mark
of ANG)
Base line
(Punch mark
of BL chassis)
(1) Prepar e*****
LAN GKD876WJ3W
(TERM ANG BOTTOM)
Caution
Base line :
Punch Mark
of TERMINAL ANG
Stick it on the inside of the protruding portion.
Do not stick it on protruding portion.
Stick it so that C ONDUCTR does not become the w rinkle.
(2) Stick *****
PSPAZC691WJZZ
(COND:8X180 )
Base line
(Punch mark
of ANG)
Base line
(Punch mark
of BL chassis)
Base line
(Punch mark
of ANG)
Base line
(Punch mark
of B L chassis)

Sharp LC-60EQ10U Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	60 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	Edge-Lit LED
Contrast ratio (dynamic)	8000000:1
3D	No
Audio input	4
Teletext function	-
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	110 - 240 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Package depth	249 mm
Package width	1522 mm
Package height	946 mm
Package weight	36500 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	372 mm
Height (with stand)	861 mm
Weight (with stand)	28000 g
Depth (without stand)	77 mm
Width (without stand)	1379 mm
Height (without stand)	445 mm
Weight (without stand)	25000 g
