Sharp LC-60EQ10U Service Manual

LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
4 – 3

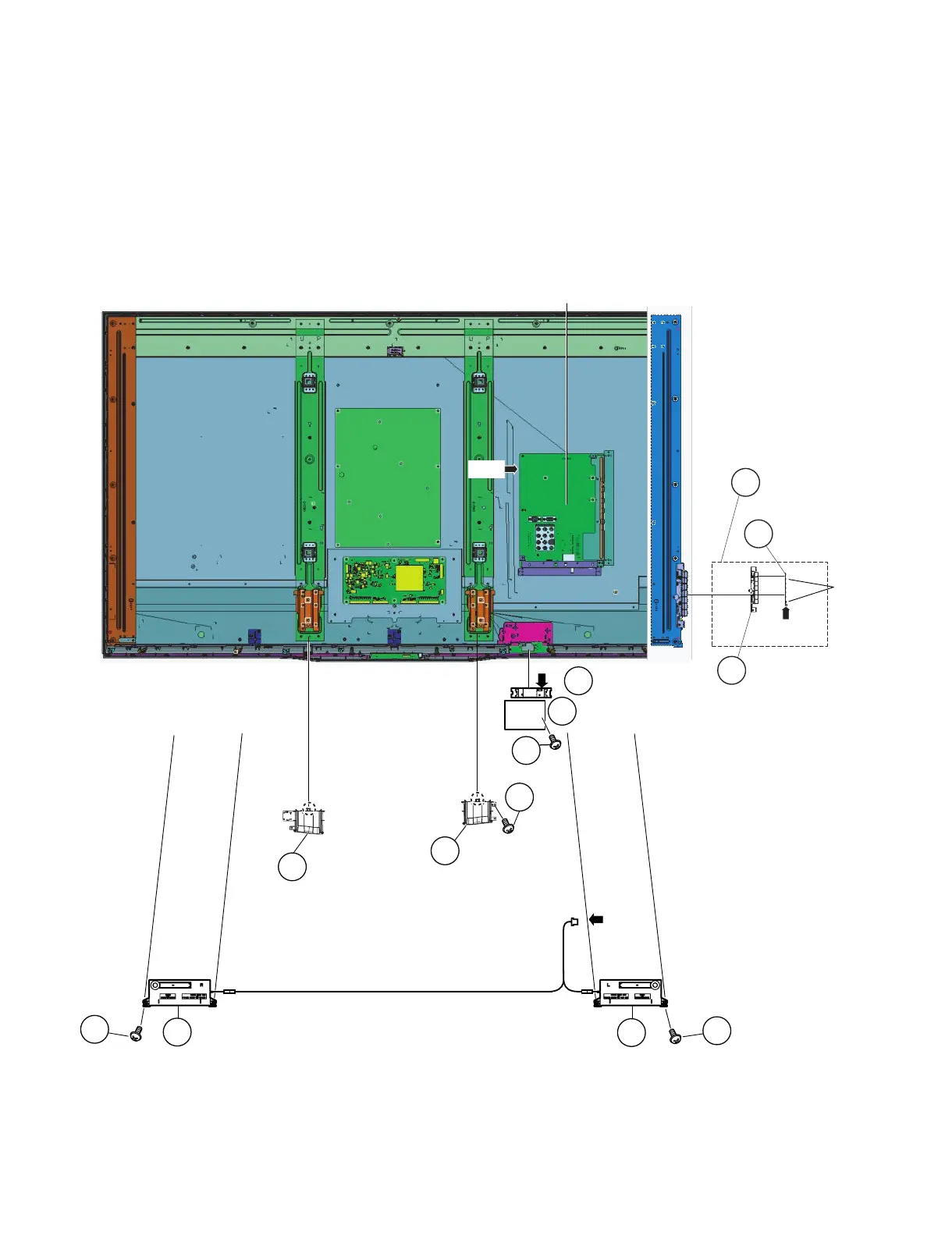

2. Removing of Speaker (L/R), KEY Unit Ass’y and Bottom Cover (L/R).
1. Remove the 2 lock screws (1) and detach the Speaker Unit (R) (2), Speaker Unit (L) (3).
2. Disconnect the SP1 Wire.
3. Detach the KEY Unit Ass'y (4).
4. Remove the KM Wire.
5. Remove the 2 Hooks and detach the KEY Unit (5) from the KEY Button (6).
6. Remove the 1 lock screw (7), 6 Hooks and detach the Bottom Cover-L (8) and Bottom Cover-R (9).
7. Remove the 1 lock screw (10) and detach the WiFi Holder (11).
8. Detach the WiFi+BT Unit (12) from the WiFi Holder (11).
9. Remove the UB Wire.
䎥䏒䏗䏗䏒䏐䎃
䎦䏒䏙䏈䏕䎐䎵
䎥䏒䏗䏗䏒䏐
䎦䏒䏙䏈䏕䎐䎯
䎜
䎛
䎚
䎫䏒䏒䏎
䎫䏒䏒䏎
䎫䏒䏒䏎
[KM]
5
4
6 KEY Button
KEY Unit
KEY Unit
Ass'y
䎰䎤䎬䎱䎃䎸䏑䏌䏗
䎾䎶䎳䏀
䎶䏓䏈䏄䏎䏈䏕䎃䎸䏑䏌䏗䎃䎋䎵䎌
䎶䏓䏈䏄䏎䏈䏕䎃䎸䏑䏌䏗䎃䎋䎯䎌
䎕
䎔
䎖
䎔
䎺䏌䎐䎩䏌䎃䎸䏑䏌䏗䎺䏌䎩䏌䎎䎥䎷䎃䎸䏑䏌䏗
䎺䏌䎐䎩䏌䎃䎫䏒䏏䏇䏈䏕䎺䏌䎩䏌䎃䎫䏒䏏䏇䏈䏕
䎾䎸䎥䏀䎾䎸䎥䏀
䎔䎕
䎔䎓
䎔䎔
[SP1]

Sharp LC-60EQ10U Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	60 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	Edge-Lit LED
Contrast ratio (dynamic)	8000000:1
3D	No
Audio input	4
Teletext function	-
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	110 - 240 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Package depth	249 mm
Package width	1522 mm
Package height	946 mm
Package weight	36500 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	372 mm
Height (with stand)	861 mm
Weight (with stand)	28000 g
Depth (without stand)	77 mm
Width (without stand)	1379 mm
Height (without stand)	445 mm
Weight (without stand)	25000 g
