Sharp LC-60EQ10U Service Manual

LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
4 – 5

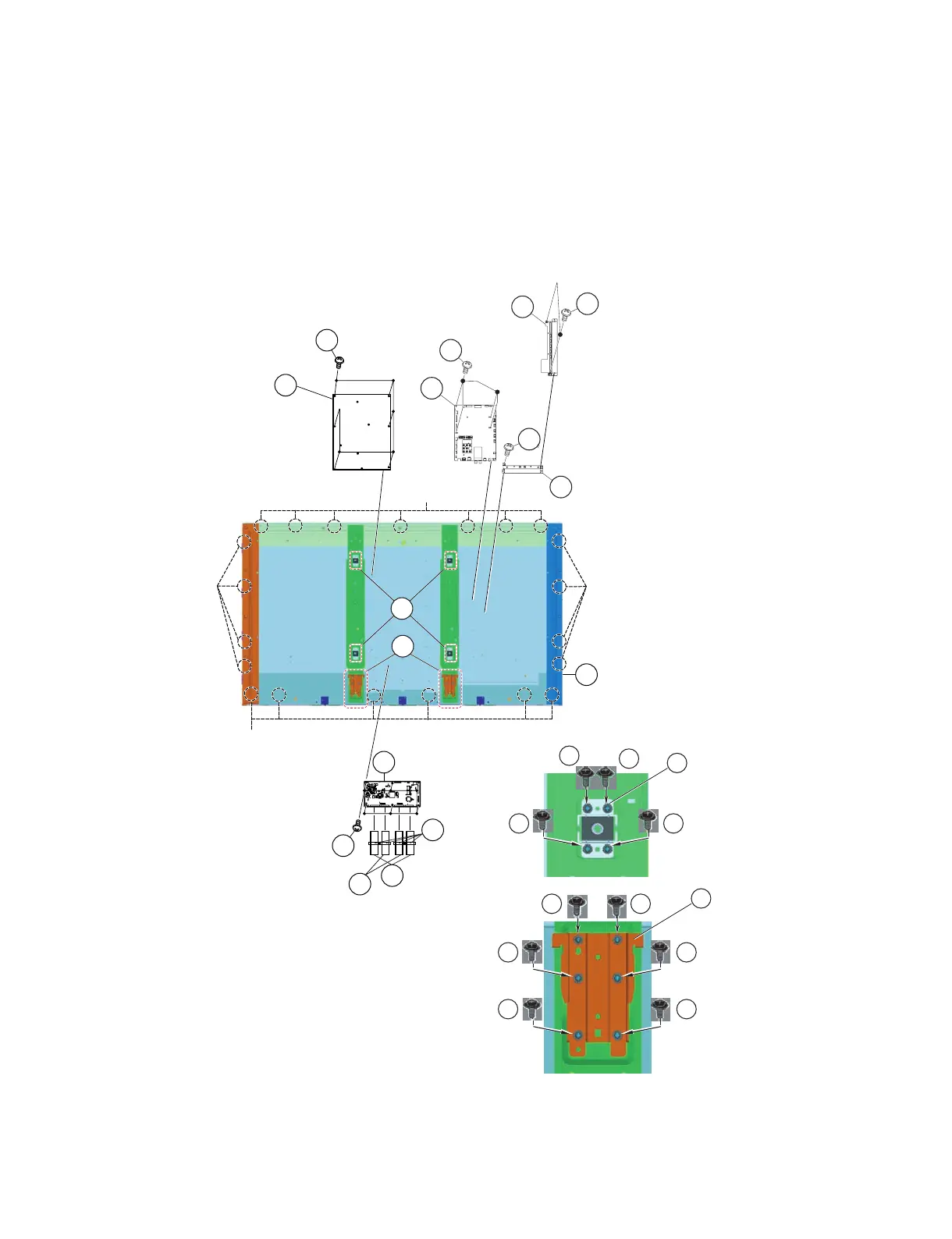

4. Removing of 60" LCD Panel Module Unit, LCD CONTROL Unit, MAIN Unit, POWER/DRIVE Unit.
1. Remove the 21 Hooks and Detach the 60" LCD Panel Module Unit (1).
2. Remove the 2 Connecting Cords(FFC80P) (2), 2 Connecting Cords(FFC64P) (17), 4 Ferrite Cores (18).
3. Remove the 6 lock screws (3) and detach the LCD CONTROL Unit (4).
4. Remove the 2 lock screws (5) and detach the Terminal Angle (Side) (6).
5. Remove the 1 lock screw (7) and detach the Terminal Angle (Bottom) (8).
6. Remove the 4 lock screws (9) and detach the MAIN Unit (10).
7. Remove the 6 lock screws (11) and detach the POWER/DRIVE Unit (12).
8. Remove the 12 lock screws (13) 2 Stand Fix Angles (14).
9. Remove the 16 lock screws (15) 4 VESA Angle Ass'y (16).
䎔䎕
䎔䎔
䎗
䎖
䎕
䎯䎦䎧䎃䎦䎲䎱䎷䎵䎲䎯
䎃䎸䏑䏌䏗
䎩䎩䎦䎃䎛䎓䎳
䎳䎲䎺䎨䎵䎒䎧䎵䎬䎹䎨
䎃䎸䏑䏌䏗
䎙䎓䎅䎯䎦䎧䎃䎳䏄䏑䏈䏏䎃䎰䏒䏇䏘䏏䏈䎃䎸䏑䏌䏗
䎹䎨䎶䎤䎃䎤䏑䏊䏏䏈䎃䎤䏖䏖䎊䏜
䎔
䎫䏒䏒䏎
䎫䏒䏒䏎
䎫䏒䏒䏎
䎫䏒䏒䏎
䎶䏗䏄䏑䏇䎃䎩䏌䏛䎃䎤䏑䏊䏏䏈
䎔䎚
䎩䎩䎦䎃䎙䎗䎳
䎔䎛
䎩䏈䏕䏕䏌䏗䏈䎃䎦䏒䏕䏈
10
MAIN
Unit
6Terminal Angle (Side)
8
15
15
15 15
13
13 13
13
13
13
16
14
Terminal Angle
(Bottom)
9
5
7
16
14

Sharp LC-60EQ10U Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	60 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	Edge-Lit LED
Contrast ratio (dynamic)	8000000:1
3D	No
Audio input	4
Teletext function	-
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	110 - 240 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Package depth	249 mm
Package width	1522 mm
Package height	946 mm
Package weight	36500 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	372 mm
Height (with stand)	861 mm
Weight (with stand)	28000 g
Depth (without stand)	77 mm
Width (without stand)	1379 mm
Height (without stand)	445 mm
Weight (without stand)	25000 g
