Sharp LC-60EQ10U Service Manual

LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
4 – 9

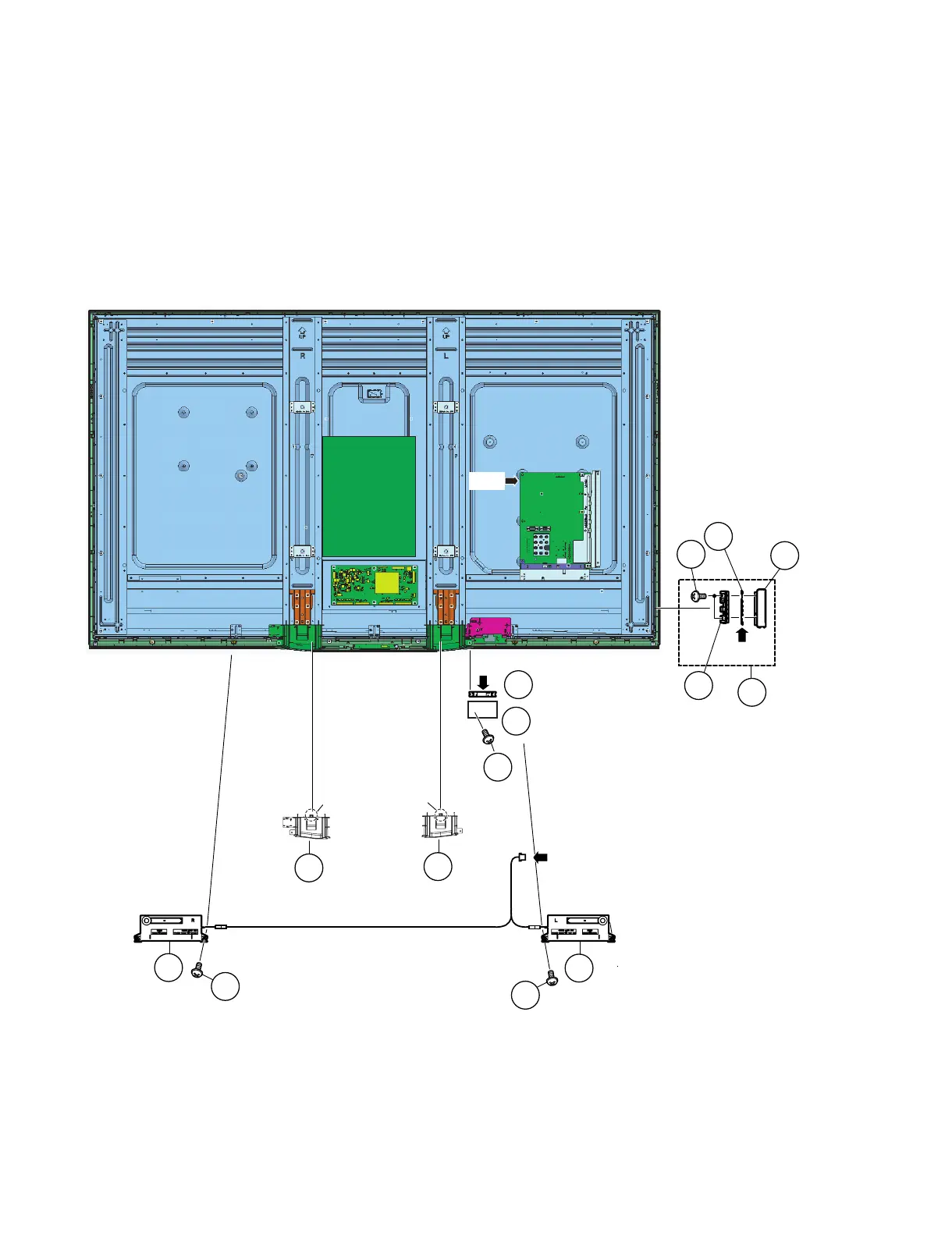

2. Removing of Speaker (L/R), KEY Unit and Bottom Cover (L/R).
1. Remove the 2 lock screws (1) and detach the Speaker Unit (R) (2), Speaker Unit (L) (3).
2. Disconnect the SP1 Wire.
3. Detach the KEY Unit Ass'y (4).
4. Remove the KM Wire.
5. Remove the 2 lock screws (5) and detach the KEY Button (6) from the KEY Button Cover (8).
6. Detach the KEY Unit (7) from KEY Button Cover (8).
7. Remove the 6 Hooks and detach the Bottom Cover-L (9) and Bottom Cover-R (10).
8. Remove the 1 lock screw (11) and detach the WiFi Holder (12).
9. Detach the WiFi+BT Unit (13) from the WiFi Holder (12).
10.Remove the UB Wire.
