Sharp LC-60EQ10U Service Manual

LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
4 – 35

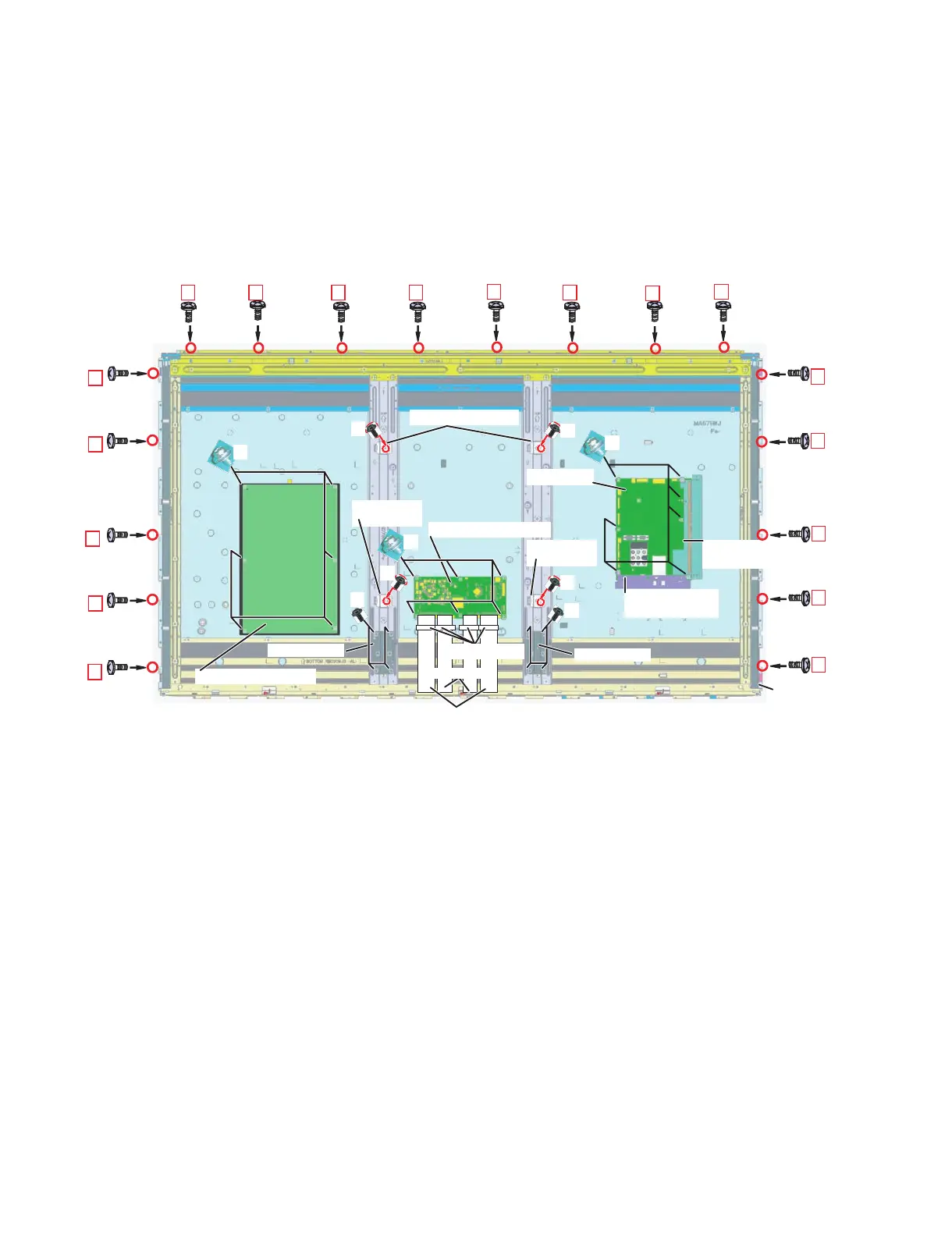

4. Removing of Aluminum Frame Ass'y, LCD CONTROL Unit, MAIN Unit, POWER/DRIVE Unit, VESA Angle
Ass'y and Stand fix Angle.
1. Remove the 18 lock screws (1) and detach the Aluminum Frame Ass'y (2)
2. Remove the 2 Connecting Cords(FFC 80p) (3), 2 Connecting Cords(FFC 64p) (4), 4 Ferrite Cores (5).
3. Remove the 6 lock screws (6) and detach the LCD CONTROL Unit (7).
4. Remove the 7 lock screws (8) and detach the Terminal Angle (Side) (9) and Terminal Angle (Bottom) (10).
5. Remove the MAIN Unit (11).
6. Remove the 6 lock screws (12) and detach the POWER/DRIVE Unit (13).
7. Remove the 4 lock screws (14) and detach the 4 VESA Angle Ass'y (15).
8. Remove the 8 lock screws (16) and detach the 2 Stand Fix Angles (17).
ԞLCD CONTROL Unit
ԜFerrite Core
ԚFFC80P
Ԧ8'5##PING#UU[
Ԧ8'5##PING
#UU[
Ԧ8'5##PING
#UU[
Ԩ5VCPF#PING
Ԩ5VCPF#PING
ԠTerminal Angle
(Side)
ԡTerminal Angle
(Bottom)
MAIN UnitԢ
ԤPOWER/DRIVE Unit
ԛFFC64P
ԙAluminum
˴Frame Ass'y
ԧ
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
ԝ
ԟ
ԣ
ԥ
ԥ
ԥ
ԥ
ԧ

Sharp LC-60EQ10U Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	60 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	Edge-Lit LED
Contrast ratio (dynamic)	8000000:1
3D	No
Audio input	4
Teletext function	-
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	110 - 240 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Package depth	249 mm
Package width	1522 mm
Package height	946 mm
Package weight	36500 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	372 mm
Height (with stand)	861 mm
Weight (with stand)	28000 g
Depth (without stand)	77 mm
Width (without stand)	1379 mm
Height (without stand)	445 mm
Weight (without stand)	25000 g
