Sharp LC-60EQ10U Service Manual

LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
5 – 12

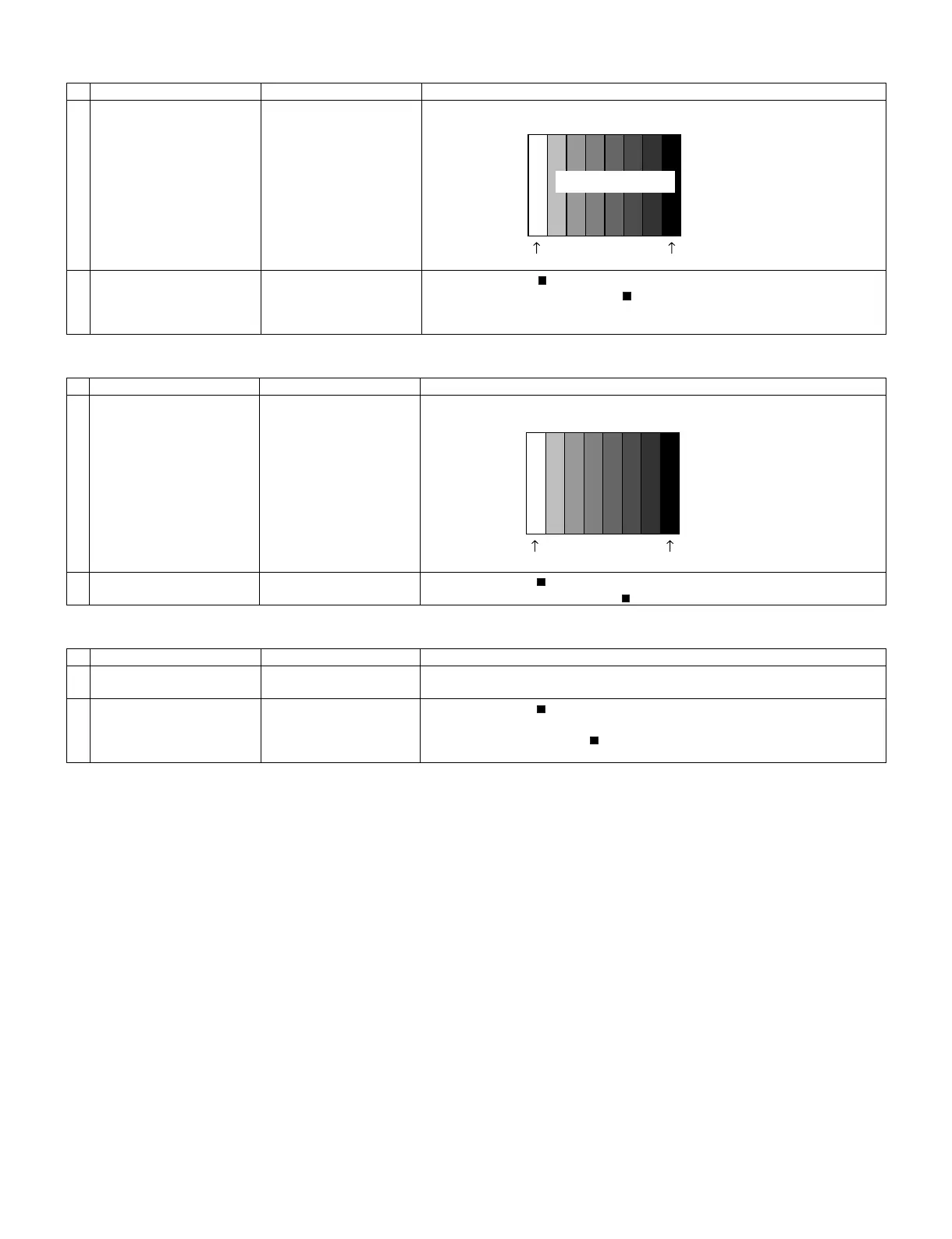

8.2.4 Component 33K signal adjustment
8.2.5 Analog RGB signal adjustment
8.2.6 Tuner/V-CHIP adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 Setting 1080i signal • Send the 100% color bar signal to the component input.
2 Automatic adjustment exe-
cution
Point the cursor to [ COMP33K ADJ(INPUT1)] and press the [Enter] key.
The adjustment is complete when [ COMP33K ADJ(INPUT1) OK] is displayed.
"Compornent 15K" Adjustment is internally handled automatically.
AUTO CLANP 1, parameters are copied from the 33K.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting Signal: XGA
(1024x768) 60Hz
SYNC: HV separate
• Send the 100% color bar signal to the PC input.
2 Automatic adjustment exe-
cution
Point the cursor to [ ANALOG RGB ADJ] and press the [Enter] key.
The adjustment is complete when [ ANALOG RGB ADJ OK] is displayed.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting NTSC RF signal
US-7(AIR)ch
• Send the NTSC signal to the RF antenna input.
2 Automatic adjustment exe-
cution
Point the cursor to [ VCHIP TEST(*07ch)] and press the [Enter] key.
(* Adjust the selected channel to the in-house signal.)
The adjustment is OK when [ VM-OK] is displayed in green.
(NG when VM-NG is displayed in red.)
100% white 0% black
1080i
100% color bar
Color saturation: 100%
100% white 0% black
XGA (1024x768)
100% color bar

Sharp LC-60EQ10U Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	60 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	Edge-Lit LED
Contrast ratio (dynamic)	8000000:1
3D	No
Audio input	4
Teletext function	-
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	110 - 240 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Package depth	249 mm
Package width	1522 mm
Package height	946 mm
Package weight	36500 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	372 mm
Height (with stand)	861 mm
Weight (with stand)	28000 g
Depth (without stand)	77 mm
Width (without stand)	1379 mm
Height (without stand)	445 mm
Weight (without stand)	25000 g
