LC-60/70EQ10U,SQ10U/15U/17U,TQ15U,UQ17U
5 – 26
10.T

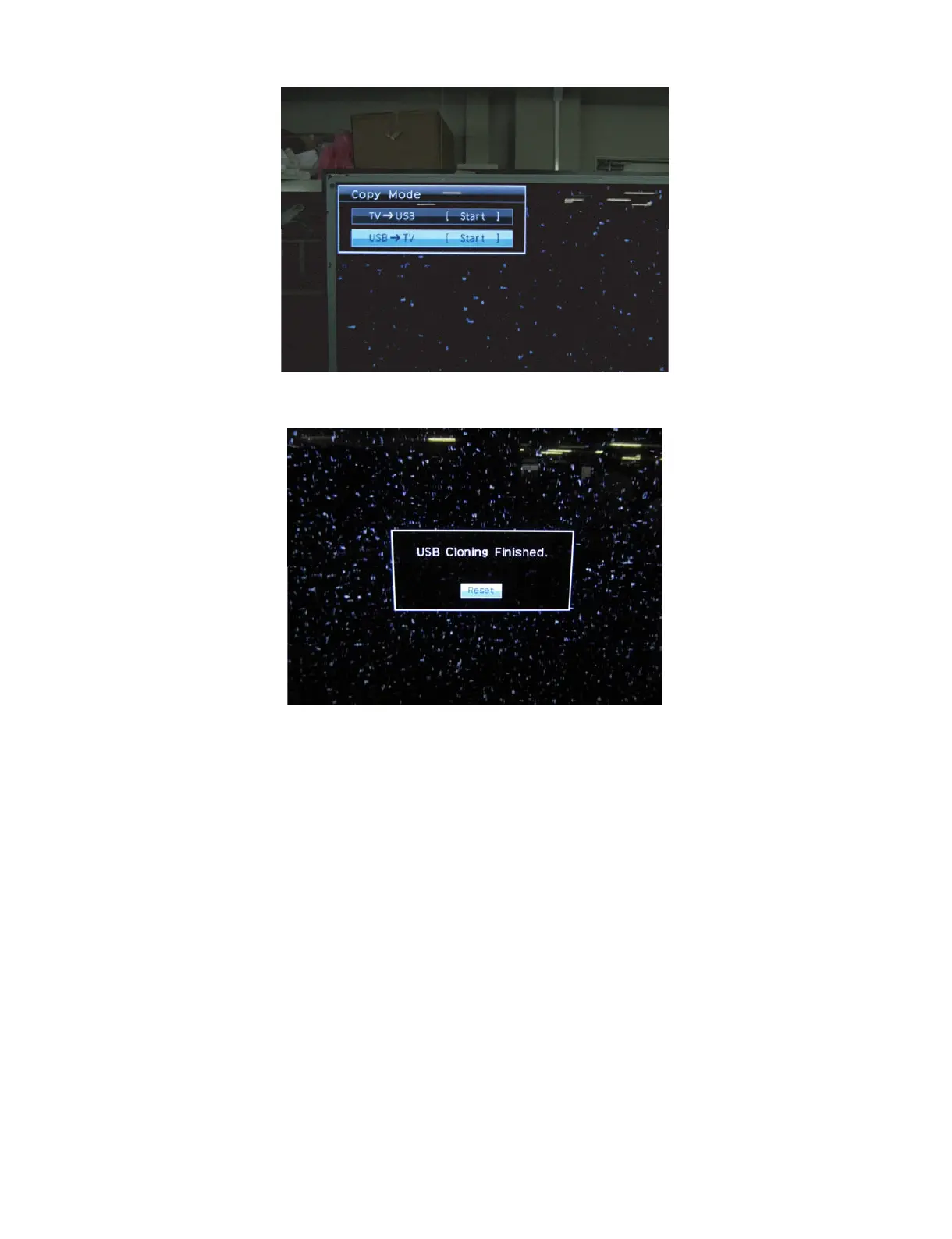

he following guide is dispalyed.Then select the “USB
→
TV [St
art]”.
1
1.
Follow g
uide is displayed when it is fini
shed ,
then select "Reset" . TV will restart.
12.C
omfirm the user setting is copied.
