Sharp LC-60LE635E Service Manual

LC-60LE635E/636E/638E (1st Edition)
4 – 4

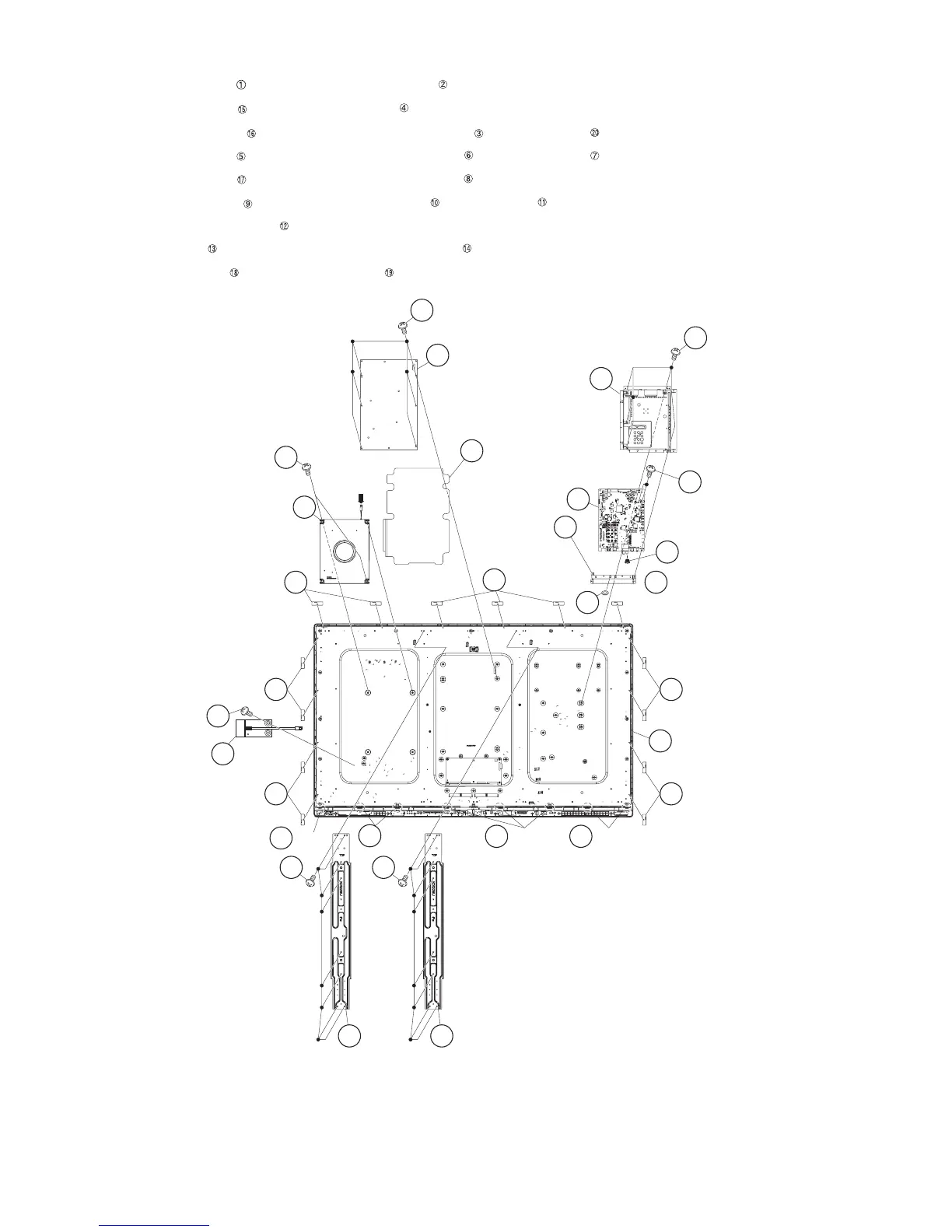

4. Removing of MAIN Unit, POWER/LED Drive Unit, speaker (Sub Woofer), 60” LCD Panel Module Unit.
1. Remove the 5 lock screws and detach the Main PWB Shield .
2. Remove the 2 lock screws and detach the MAIN Unit .
3. Remove the Hexagon screw and detach the Terminal Angle Bottom and Earhe Spring .(Only LC-60LE630E,RU)
4. Remove the 6 lock screws and detach the POWER SUPPLY Unit and Insulator Sheet .
5. Remove the 2 lock screws and detach the Speaker (Sub Woofer) .
6. Remove the 16 lock screws and detach the Center Angle-L , Center Angle-R .
7. Detach the 14 Fixing Metal Angles .
8. Remove the 8 Hooks and detach the 60” LCD Panel Module Unit .
9. Remove the 1 lock screw and detach the ECO-SW .
7
Insulator Sheet
Main PWB Shield
HookHook
Hook
Hook
12
Fixing Metal
Angle
12
Fixing Metal
Angle
12
13
13
13 13
Fixing Metal
Angle
12
Fixing
Metal Angle
12
Fixing
Metal Angle
60" LCD Panel
Module Unit
14
12
Fixing
Metal Angle
12
Fixing
Metal Angle
9 9
11 Center
Angle-R
10 Center
Angle-L
8
Speaker
(Sub Woofer)
[SB]
6
POWER SUPPLY Unit
5
3
Terminal
Angle Bottom
4MAIN Unit
1
15
2
17
16
20
Earth Spring
18
19
ECO-SW
[AS]
