4) Communication failure details (Low-speed blinking: Flashes 3 times + High-speed blinking)
5) Other failure details (Low-speed blinking: Flashes 4 times + High-speed blinking)

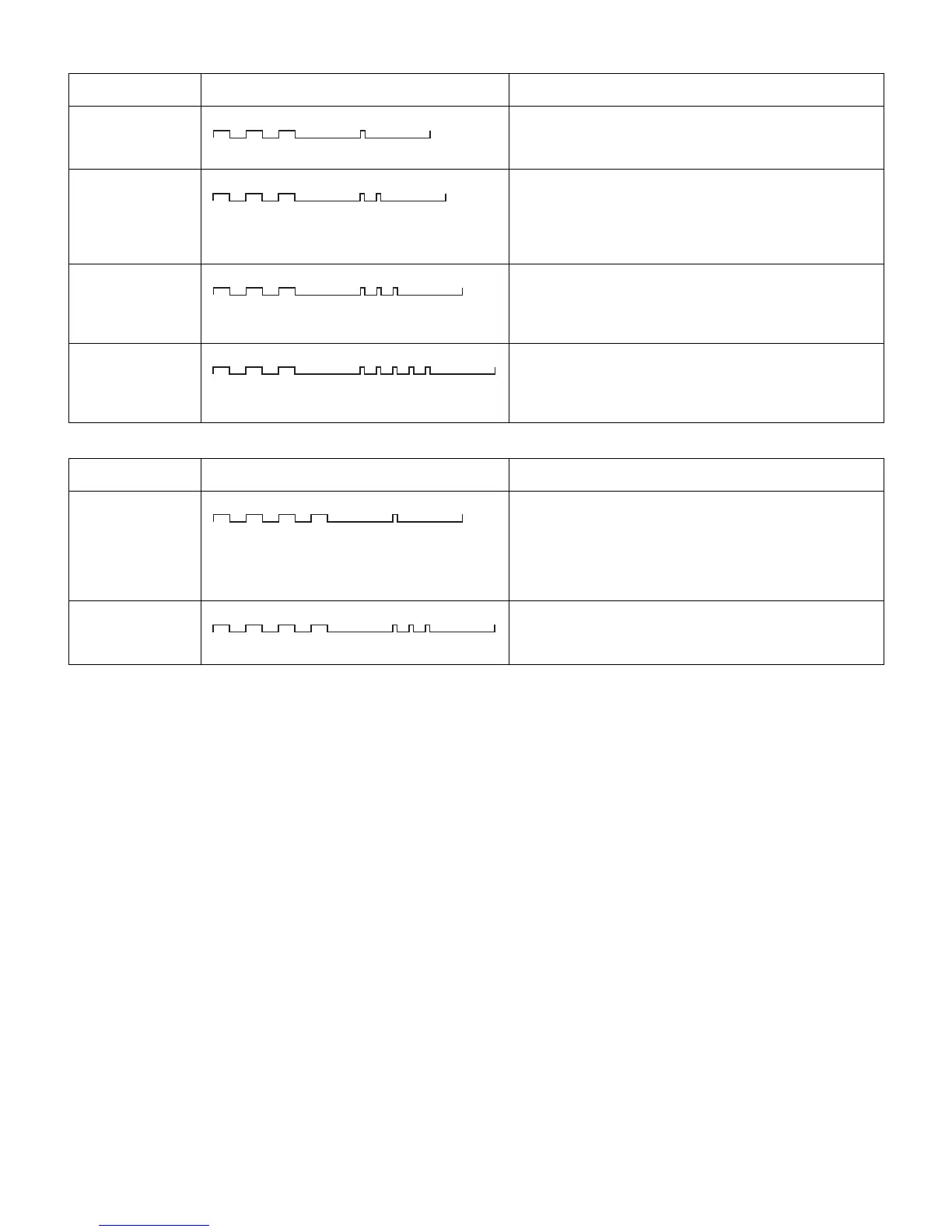

Error type Expression of Central Icon LED Note: Basically, debug print logs are analyzed or
communication logs are analyzed by a bus monitor.
Initial communication
reception failure
Flashes once
(High speed)
H: ON
L: OFF
Initial communication from the main CPU is not received.
(Request for the monitor model No. is not received.)
→ Communication line failure or main CPU start-up failure.
Start-up confirmation
reception failure
Flashes twice
(High speed)
H: ON
L: OFF
Start-up reason confirmation from the main CPU cannot be
received.
(Startup communication until start-up reason notification com-
mand is not received.)
→ Main CPU start-up failure or monitor microprocessor reception
failure.
Regular communica-
tion failure
Flashes 3 times
(High speed)
H: ON
L: OFF
Regular communication that is performed at 1 second intervals in
the normal operation is interrupted.
→ Main CPU operation failure or monitor microprocessor
reception failure.
Other communica-
tion failure
Flashes 5 times
(High speed)
H: ON
L: OFF
When a request (PM_REQ=H) is sent from the main microproces-
sor, the request command is not output from the main CPU, etc.
→ Main CPU operation failure or monitor microprocessor
reception failure.
Error type Expression of Central Icon LED Note: Pins are monitor microprocessor pins unless otherwise
specified (IC2001).
Monitor temperature
failure
Flashes once
(High speed)
H: ON
L: OFF
If the panel temperature is 60°C or more for 15s or more in a row,
CAUTION appears on the OSD (flashes in red in the lower right
screen).
If the panel temperature is 60°C or more for 25s or more in a row,
error standby is activated.
(MONITOR MAX TEMP on page (12/20) of the adjustment pro-
cess: Change AD value for temperature failure): Thermistor
Main failure
Flashes 3 times
(High speed)
H: ON
L: OFF
Main microprocessor detection error (CPU temperature error, etc.)
Details are displayed on page (1/20) of the adjustment process for
the main microprocessor.

Sharp LC-60LE740E Specifications

General

Display diagonal	60 \
Display brightness	- cd/m²
Native refresh rate	100 Hz
Supported video modes	1080p
Viewing angle, vertical	176 °
Display diagonal (metric)	152 cm
Supported graphics resolutions	1920 x 1080 (HD 1080)
Dynamic contrast ratio marketing name	Mega Contrast
3D	Yes
Volume control	Digital
Headphone connectivity	3.5 mm
Annual energy consumption	146 kWh
Mean time between failures (MTBF)	40000 h
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T
Audio decoders	Dolby Digital, Dolby Digital Surround EX, Dolby Virtual Speaker
RMS rated power	20 W
Built-in subwoofer	No
Number of speakers	2
HDCP	-
HDMI version	1.4
Composite video in	0
HDMI ports quantity	4
USB 2.0 ports quantity	1
Compatible memory cards	SD
Audio formats supported	AAC
Video formats supported	DIVX, H.264, MPEG4
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.1 W
Power consumption (typical)	100 W

Weight and Dimensions

Depth (with stand)	333 mm
Height (with stand)	872 mm
Depth (without stand)	72 mm
Width (without stand)	1383 mm
Height (without stand)	839 mm
Weight (without stand)	29500 g
