10.5. ADC adjustment (Component 15K)
10.6. ADC adjustment (Component 33K)
10.7. PC signal adjustment (ANALOG D-Sub 15pin)
10.8. RGB (SCART) adjustment (RGB 15K)
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
COMP15K, 50Hz
100% Full field colour bar
Signal
[Terminal]
EXT3 COMPONENT IN
• Feed the COMPONENT 15K 100% full field colour bar signal (100% colour
saturation) to EXT3 COMPONENT IN.
2 Auto adjustment
performance
Adjustment process
[COMP15k ALL ADJ]
page 6/21
Bring the cursor on [COMP15k ALL ADJ] and press [OK].
[COMP15K ALL ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
COMP33K, 50Hz
100% Full field colour bar
Signal
[Terminal]
EXT3 COMPONENT IN
• Feed the COMPONENT 33K 100% full field colour bar signal (100% colour sat-
uration) to EXT3 COMPONENT IN.
2 Auto adjustment
performance
Adjustment process
[HDTV ADJ] page 7/21
Bring the cursor on [HDTV ADJ] and press [OK].
[HDTV ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
XGA, 60Hz
100% Full Field Colour Bar
Signal
[Terminal]
PC IN
• Feed the XGA 60Hz 100% full field colour bar signal (100% colour saturation)
to PC IN.
2 Auto adjustment
performance
Adjustment process
[ANALOG PC ADJ] menu
page 8/21
Bring the cursor on [ANALOG PC ADJ] and press [OK].
[ANALOG PC ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
RGB 15K, 50Hz
100% Full field colour bar
signal
[Terminal]
EXT1 SCART RGB IN
• Feed the RGB 15k 50Hz 100% full field colour bar signal (100% colour satura-
tion) to EXT1 SCART IN.
2 Auto adjustment
performance
Adjustment process
[SCART RGB ADJ] menu
page 9/21
Bring the cursor on [SCART RGB ADJ] and press [OK].
[SCART RGB ADJ OK] appears when finished.

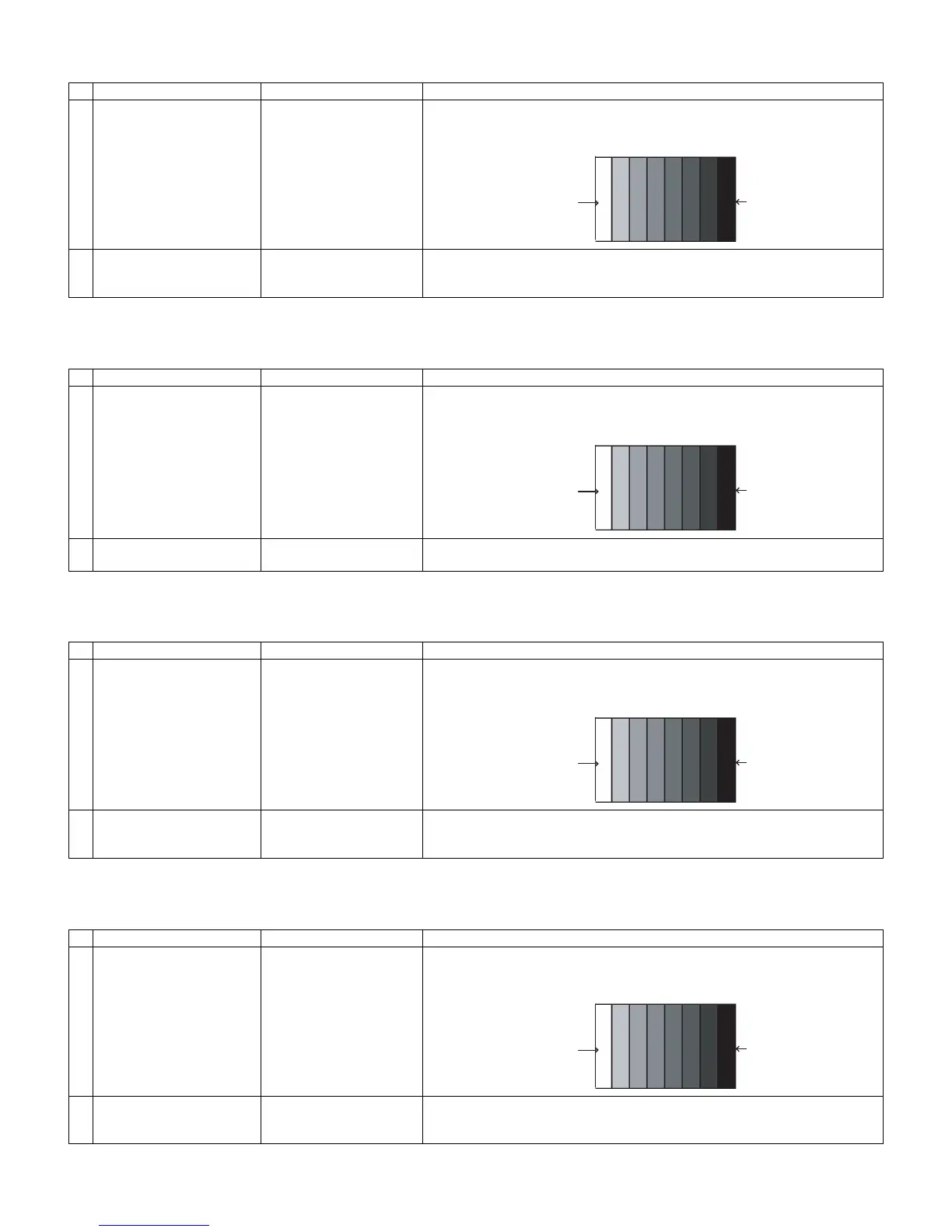

100% white Black
100% white Black
100% white Black
100% white Black

Sharp LC-60LE740E Specifications

General

Display diagonal	60 \
Display brightness	- cd/m²
Native refresh rate	100 Hz
Supported video modes	1080p
Viewing angle, vertical	176 °
Display diagonal (metric)	152 cm
Supported graphics resolutions	1920 x 1080 (HD 1080)
Dynamic contrast ratio marketing name	Mega Contrast
3D	Yes
Volume control	Digital
Headphone connectivity	3.5 mm
Annual energy consumption	146 kWh
Mean time between failures (MTBF)	40000 h
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T
Audio decoders	Dolby Digital, Dolby Digital Surround EX, Dolby Virtual Speaker
RMS rated power	20 W
Built-in subwoofer	No
Number of speakers	2
HDCP	-
HDMI version	1.4
Composite video in	0
HDMI ports quantity	4
USB 2.0 ports quantity	1
Compatible memory cards	SD
Audio formats supported	AAC
Video formats supported	DIVX, H.264, MPEG4
Product color	Black
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.1 W
Power consumption (typical)	100 W

Weight and Dimensions

Depth (with stand)	333 mm
Height (with stand)	872 mm
Depth (without stand)	72 mm
Width (without stand)	1383 mm
Height (without stand)	839 mm
Weight (without stand)	29500 g
