11

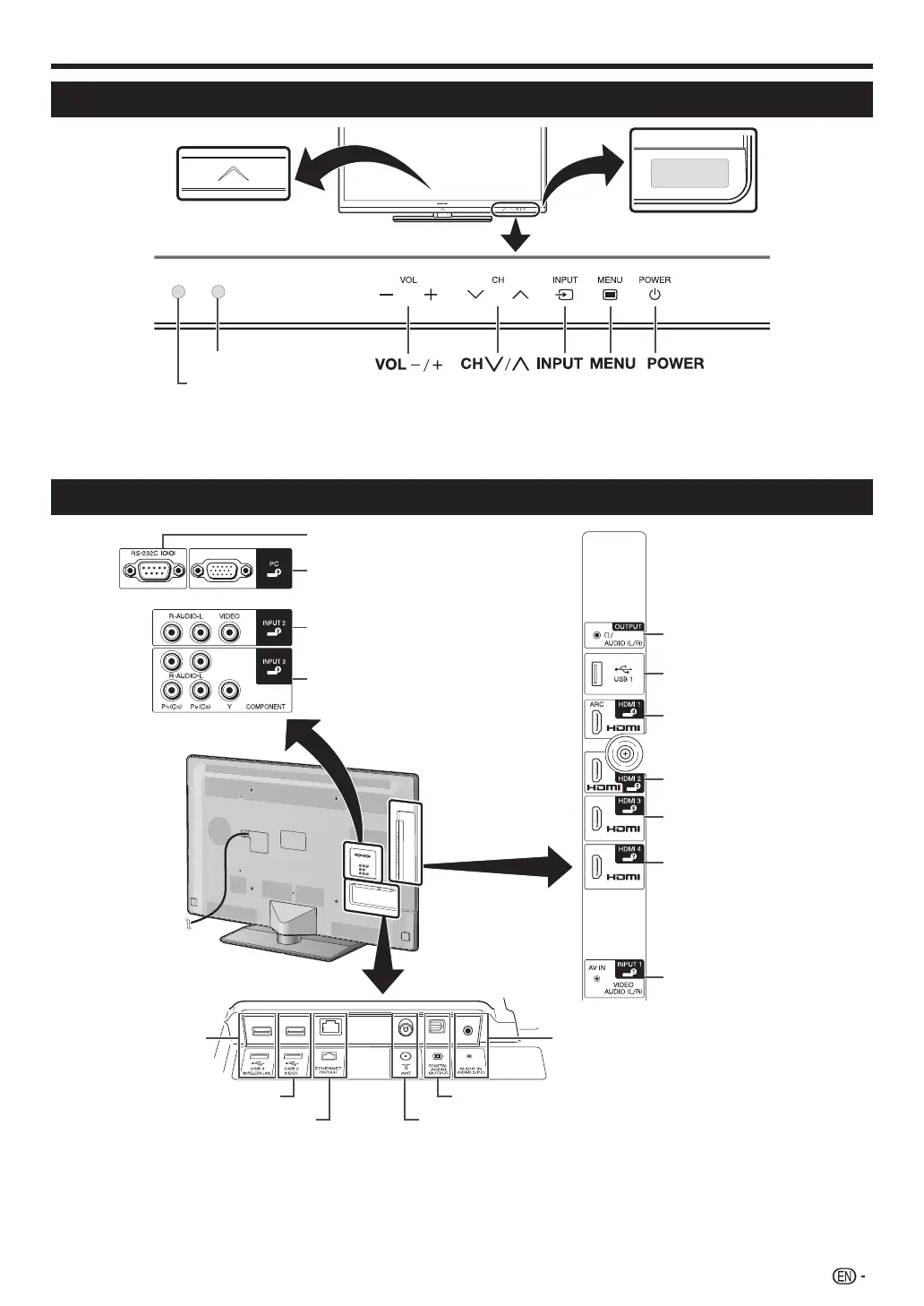

TV (front view)
Illumination LED*
1
3D infrared emitter*
2
Remote control sensor
OPC sensor*
3
I
3D mode: Blue illumination
2D mode: White illumination
J
This panel emits infrared signal towards the 3D glasses you wear when viewing 3D images. Do not place anything between the 3D infrared emitter on
the TV and the infrared receiver on the 3D glasses. Refer to page 64 for details.
K
OPC: Optional Picture Control (Page 31)
TV (rear view)
RS-232C terminal
PC terminal
INPUT 2 (VIDEO/AUDIO (L/R))
terminal
INPUT 3 (Component/
AUDIO (L/R)) terminal
OUTPUT (Headphones/
AUDIO (L/R)) terminal*
1
USB 1 port*
2
HDMI 1 (HDMI/ARC)
terminal (INPUT 4)
HDMI 3 (HDMI) terminal
(INPUT 6)
HDMI 2 (HDMI) terminal
(INPUT 5)
HDMI 4 (HDMI) terminal
(INPUT 7)
INPUT 1 (AV IN) terminal
USB 2 (HDD) port
ETHERNET (10/100) terminal Antenna terminal
DIGITAL AUDIO OUTPUT terminal
AUDIO IN (HDMI 2/PC)
jack
*
3
USB 3
(WIRELESS LAN)
port
I
Refer to page 41 for details.
J
Skype will be available only for the USB1 terminal. Visit the following website for details:
Skype: http://www.skype.com or Sharp: http://www.aquos-world.com
K
The HDMI 2 and PC terminals can both use the same audio input terminal (AUDIO IN (HDMI 2/PC)). However, the proper item must be selected in the
“Audio select” menu (refer to page 40 for details).
WARNING
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Do not set the volume at a high level. Hearing experts advise against extended listening at high volume levels.
Part names and functions
