7
Preparation

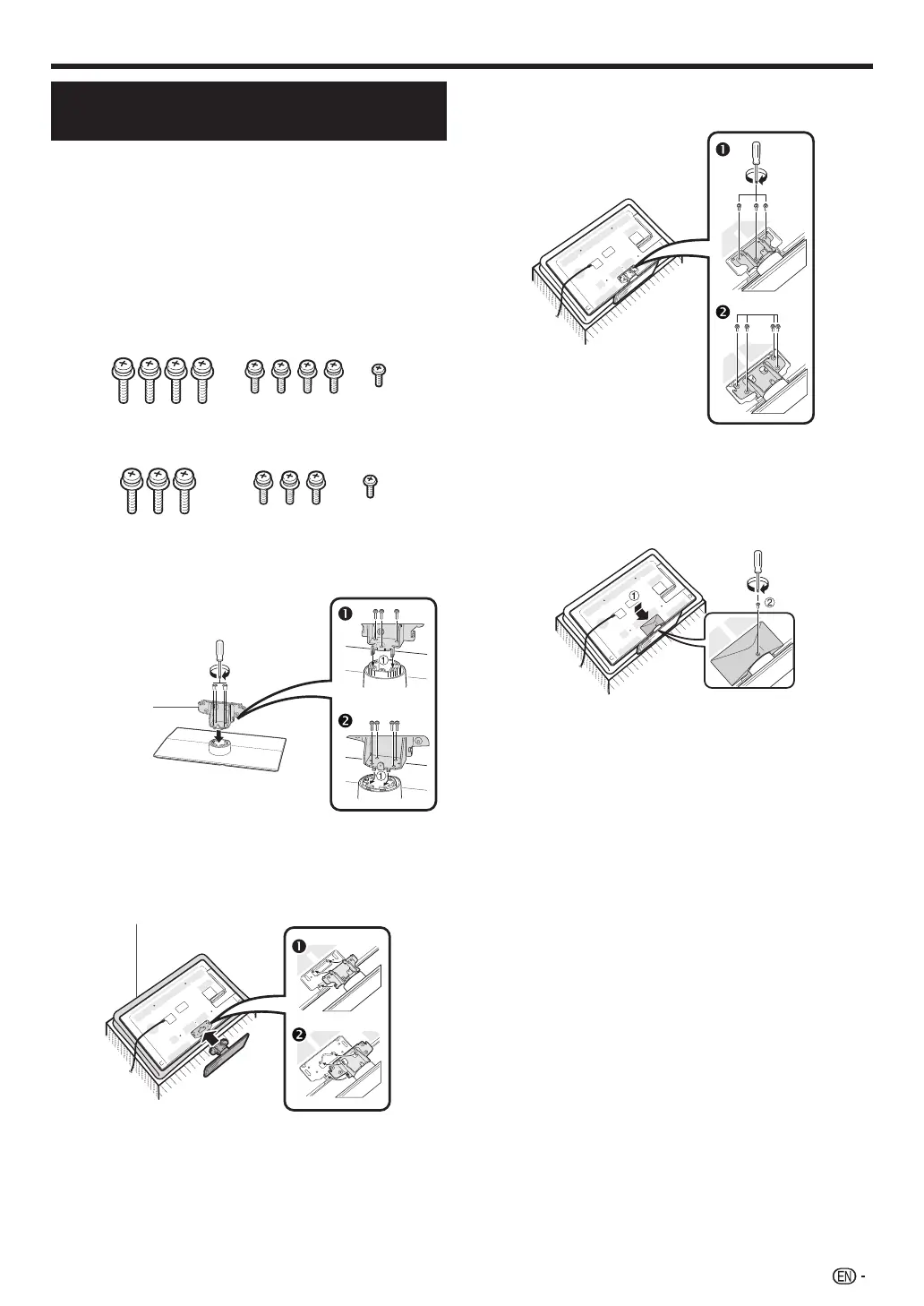

Attaching the stand unit –
52/46/40LE830X
• Before performing work, spread cushioning over the surface
on which you will be laying the TV. This will prevent it from
being damaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation
of the stand may result in the TV falling over.
1 Confirm that there are screws with the stand unit.
For 52/46 inch models
(four long screws, four middle screws and one
short screw)
For 40 inch models
(three long screws, three middle screws and one
short screw)
2 Attach the supporting post for the stand unit onto
the base using the long screws with a screwdriver
as shown.
Supporting
post
40 inch models 52/46 inch models
3 Insert the stand into the openings on the bottom
of the TV (hold the stand so it will not drop from
the edge of the base area).
Soft cushion
40 inch models 52/46 inch models
4 Insert and tighten middle screws into the holes on
the rear of the TV.
40 inch models 52/46 inch models
5 Attaching the stand cover.
1
Insert the stand cover.
2
Insert and tighten a short screw into the hole of the
stand cover.
NOTE
• To detach the stand unit, perform the steps in reverse order.
• A screwdriver is not supplied with this product.
