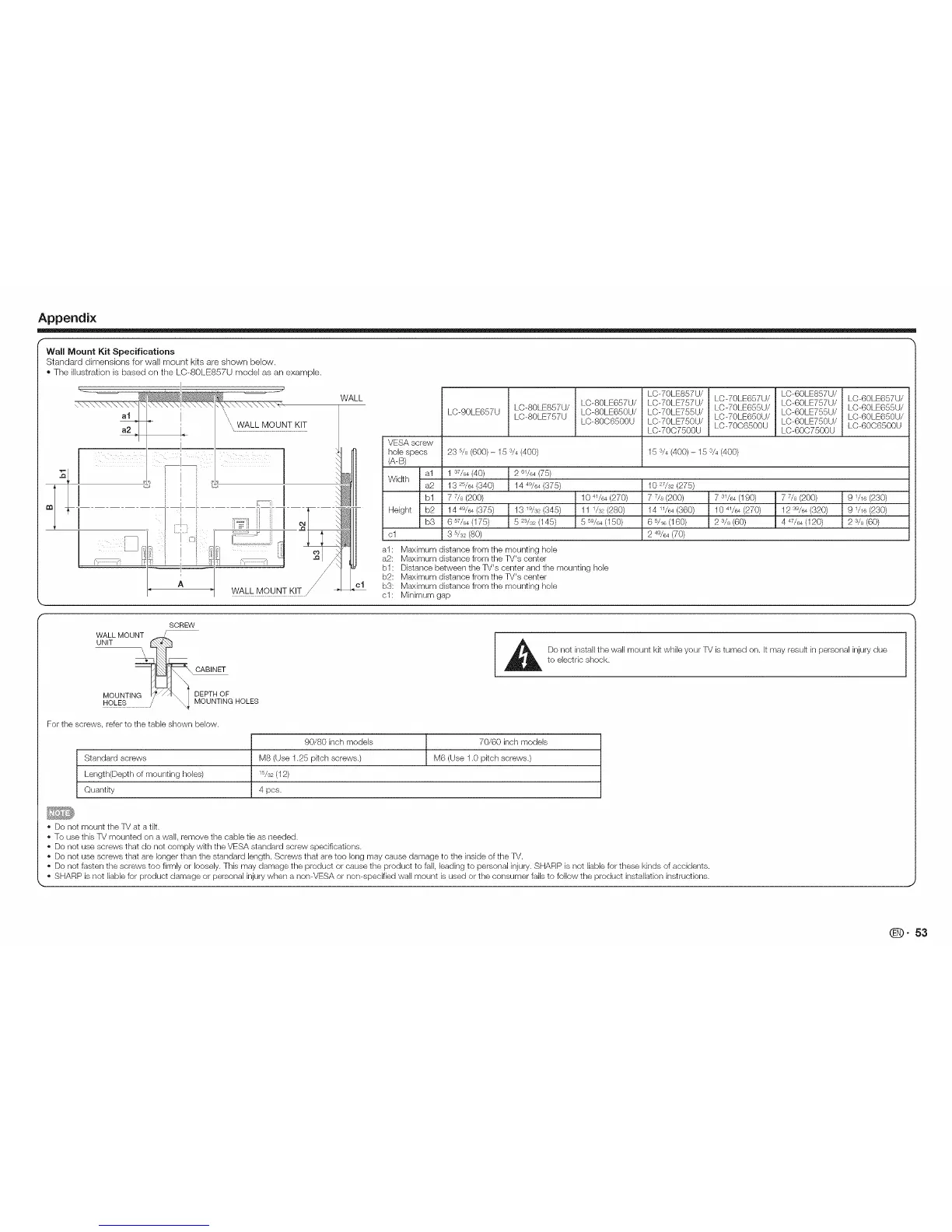

Appendix
Wall Mount Kit Specifications
Standard dimensions for wall mount kits are shown below.
® The illustration is based on the LC-80LE857U model as an example.
..al
I
I
ii i i i i i
ji
WALL
" WALL MOUNT KIT
¸¸¸¸¸¸2¸ I
I
LC-70LE857U/ LC-60LE857U/
LO-80LE657U/ LC-70LE757U/ LC-70LE657U/ LO-60LE757U/ LC-60LE657U/
LC@0LE657U LC-80LE857U/ LC-80LE650U/ LC-70LE755U/ LC-70LE655U/ LC-60LE755U/ LC-60LE655U/
LC-80LE757U LC-70LE650U/ LC-60LE650U/
LC-8006500U LC-70LE750U/ LC-7006500U LC-60LE750U/ LC-6006500U
LC-7007500U LC-6007500U
VESA screw
hole specs 23 s/s(600) - 15 s/4(400) 15 s/4(400) - 15 s/4(400)
(A-B)
al 1 s7/64(40) 2 61/64(75)
Width
a2 13 2s/64(340) 14 49/64(375) 10 2Vs_(275)
bl 7 7/s(200) 10 41/64(270) 7 7/s (200) 7 Sl/64(190) ! 7 7/s(200) 9 1/16(230)
Height b2 14 49/64(375) 13 19/s2(345) 11 1/s2(280) 14 11/64(360) 10 4V64(270) I 12 s9/64(320) 9 1/16(230)
b3 6 sTA4(175) 5 _s/s2(145) 5 sgA4(150) 6 s/16(160) 2 sA (60) 4 47/64(120) 2 sA (60)
ol 3 s/a_(80) 2 4%4(70)
al : Maximum distance from the mounting hole
a2: Maximum distance from the TV's center
bl : Distance between the TV's center and the mounting hole
b2: Maximum distance from the TV's center
b3: Maximum distance from the mounting hole
c1: Minimum gap
SCREW
WALL MOUNT
0N,T
MOUNTING I//" / I_ DEPTH OF
HO[:ES ......... / _ MOUNTING HOLES
,_ Do not install the wall mount kR while your TV is turned on. It may resuR in personal injury due
to electric shock.
For the screws, refer to the table shown below.
90/80 inch models 70/60 inch models
Standard screws M8 (Use 1.25 pRch screws.) M6 (Use 1.0 pitch screws.)
Length(Depth of mounting holes) 1s/s2(12)
Quantity 4 pcs.
Do not mount the TV at a tilt.
To use this TV mounted on a wall, remove the cable tie as needed.
Do not use screws that do not comply with the VESA standard screw specifications.
o Do not use screws that are longer than the standard length. Screws that are too long may cause damage to the inside of the TV.
o Do not fasten the screws too firmly or loosely. This may damage the product or cause the product to fall, leading to personal injury. SHARP is not liable for these kinds of accidents.
o SHARP is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
(iD" 53

Other manuals for Sharp LC-60LE857U

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Sharp LC-60LE857U and is the answer not in the manual?

Sharp LC-60LE857U Specifications

General IconGeneral
Display diagonal60 \
LED backlighting typeEdge-Lit LED
Supported video modes1080p
Contrast ratio (dynamic)12000000:1
Screen format adjustments16:9
Viewing angle, horizontal176 °
Supported graphics resolutions1920 x 1080 (HD 1080)
3DYes
3D typeActive
Built-in cameraNo
Bundled softwareSmart Apps, Web Browser, Web+TV Split Screen, Skype, Remote Control Apps (iOS/Android)
3D glasses quantity2
Placement supportedHorizontal
Tuner typeAnalog & digital
Number of tuners2 tuner(s)
Analog signal format systemNTSC
Digital signal format systemATSC
RMS rated power20 W
DVI port-
HDMI ports quantity4
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in1
Wi-Fi standards802.11a, 802.11b, 802.11g
Lifestyle appsSkype
Number of OSD languages3
On Screen Display (OSD) languagesENG, ESP, FRE
Product colorSilver
Panel mounting interface400 x 200 mm
AC input voltage120 V
AC input frequency60 Hz
Power consumption (standby)- W
Power consumption (typical)187 W
Sustainability certificatesENERGY STAR
CertificationThink Green
Package depth203 mm
Package width1727 mm
Package height915 mm
Package weight49000 g
Weight and Dimensions IconWeight and Dimensions
Depth (with stand)360 mm
Height (with stand)837 mm
Weight (with stand)40000 g
Depth (without stand)58 mm
Width (without stand)1378 mm
Height (without stand)810 mm
Weight (without stand)33000 g
